The KAVAN C motors are powerful brushless rotary electric motors ("outrunner") with excellent electrical characteristics, sophisticated design and excellent manufacturing processing. They are a very good choice for flying recreational sport models with excellent performance, good efficiency and favorable price. They are low-speed, high-torque motors that can handle large-diameter propellers and climb without the need for a gearbox.

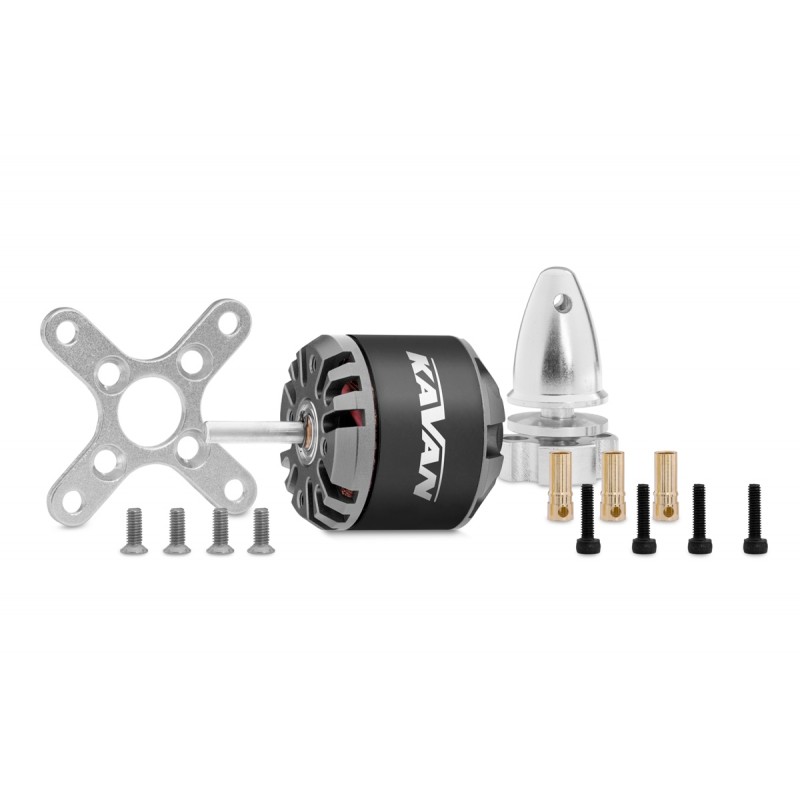

Included: motor with soldered connectors, crosshead, hub mount, screws, speed controller

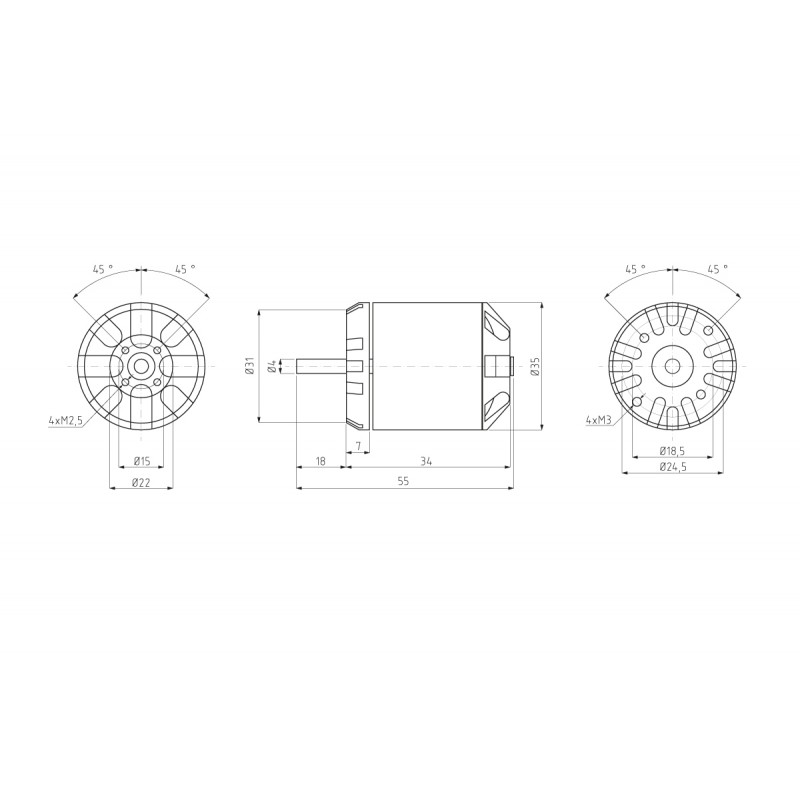

Technical data:
- Power supply [LiXX]: 3 - 4
- KV [RPM]: 1250
- Max. power (30s / 4S LiPo) [W]: 420
- No-load current (3S) [A]: 2.2
- Max. peak current (30s) [A]: 38
- Diameter [mm]: 35
- Length [mm]: 36
- Cylinder diameter [mm]: 4
- Weight [g]: 110
- Number of fields: 14
- Recommended regulator [A]: 40 - 50
- Model weight up to [g]: gliders - 1600 / trainers - 1500 / aerobatics - 1300 / 3D - 1050
- Recommended propeller ["]: 3S: 11x5 / 4S: 9x5

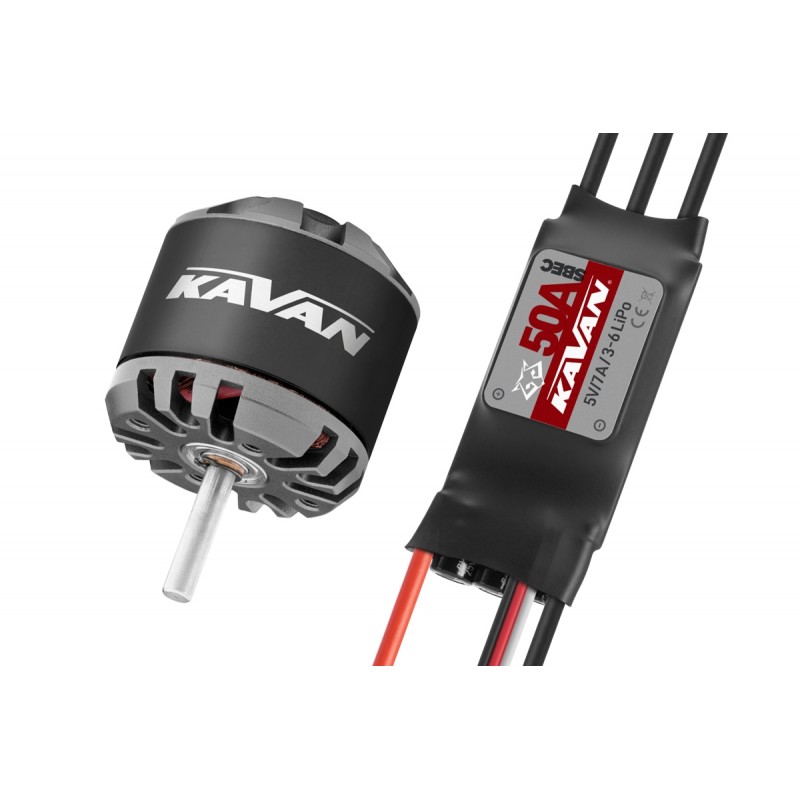

+ KAVAN R-50SB RPM REGULATOR
Programmable microprocessor-based controllers for brushless, sensorless AC motors designed with the capabilities of state-of-the-art solid-state technology. They offer easy and clear programming with the transmitter, and really simple and instant setup with the KAVAN R LED programming card (sold separately). It is used to control the speed of AC electric motors in LiPo battery-powered recreational model aircraft. Features a powerful SBEC pulse power supply stabilizer providing power to the receiver and servos from the drive battery.
Technical data:
- Application: Airplane, Helicopter
- Continuous Current [A]: 50
- Max peak - instantaneous current [A]: 65
- Li-po power supply: 3 - 6
- BEC voltage [V]: 5
- BEC current [A]: 7
- Length [mm]: 65
- Width [mm]: 29
- Height [mm]: 10
- Weight [g]: 41
- Uni-directional
- Brake: YES
- Input for sensors: No
- Programmable: TAk
- Programming card: KAVAN Program Card (KAV32.42015)
