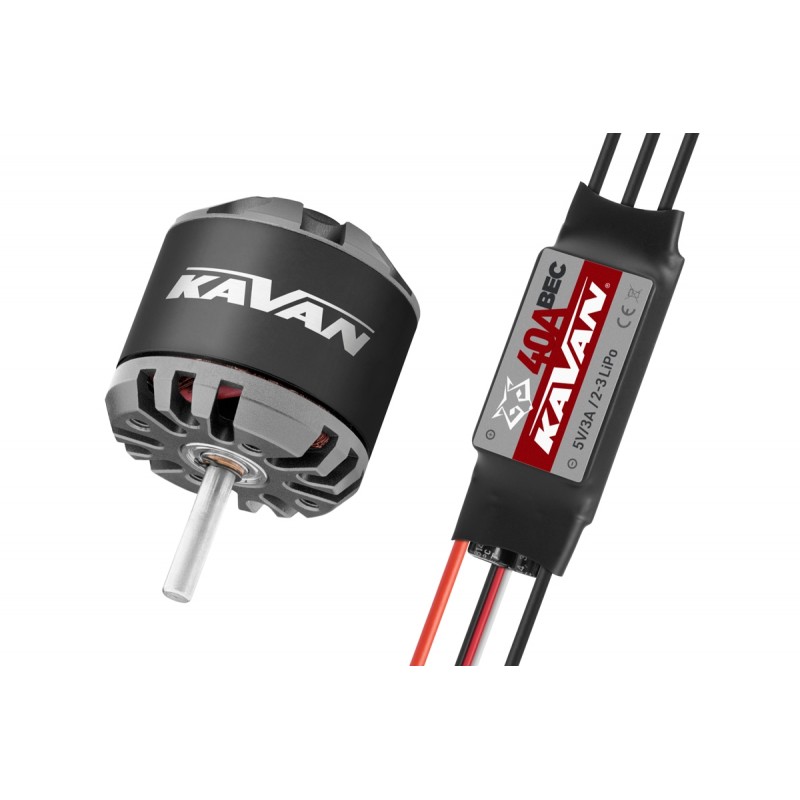

KAVAN C3536-1000 + KAVAN R-40B - COMBO SET (KAV30.0152C)

The KAVAN C motors are powerful brushless rotary electric motors ("outrunner") with excellent electrical characteristics, sophisticated design and excellent manufacturing processing. They are a very good choice for flying recreational sport models with excellent performance, good efficiency and favorable price. They are low-speed, high-torque motors that can handle large-diameter propellers and climb without the need for a gearbox.

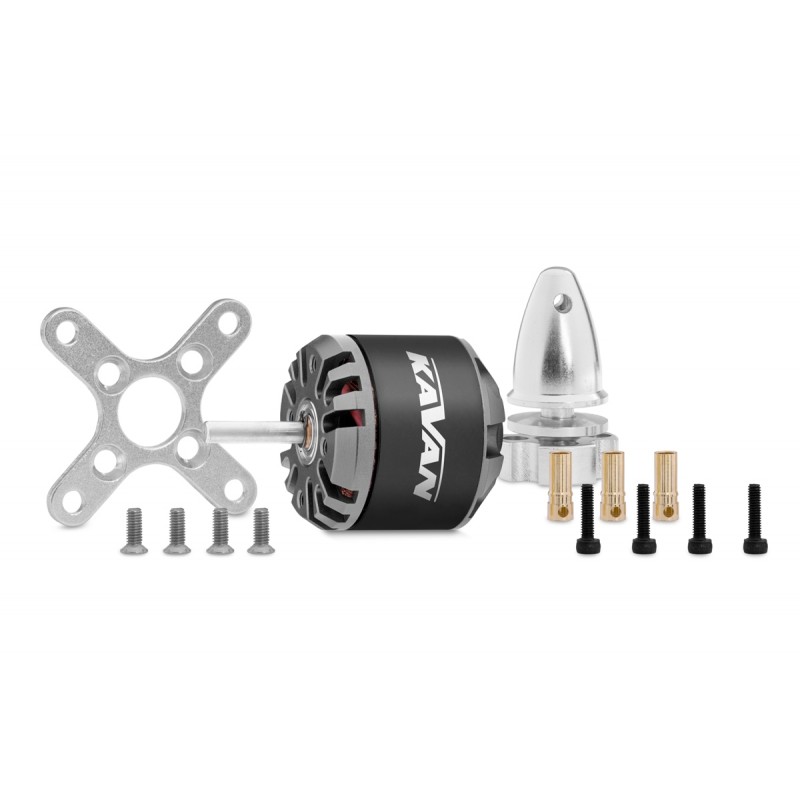

Included: motor with soldered connectors, crosshead, hub mount, screws, speed controller

Technical data:

• Power supply [LiXX]: 3 - 4
• KV [RPM]: 1000
• Max. power (30s / 4S LiPo) [W]: 37
• No-load current (3S) [A]: 1.4
• Max. peak current (30s) [A]: 33
• Diameter [mm]: 35
• Length [mm]: 36
• Cylinder diameter [mm]: 4
• Weight [g]: 110
• Number of fields: 14
• Recommended regulator [A]: 40-45
• Model weight up to [g]: gliders - 1700 / trainers - 1600 / aerobatics - 1300 / 3D - 1050
• Recommended propeller ["]: 3S: 12x6 / 4S: 10x5-6

+ KAVAN R-40SB RPM REGULATOR

Programmable microprocessor-based controllers for brushless, sensorless AC motors designed with the capabilities of state-of-the-art solid-state technology. They offer easy and clear programming with the transmitter, and really simple and instant setup with the KAVAN R LED programming card (sold separately). It is used to control the speed of AC electric motors in Li-Po battery-powered recreational model aircraft. Features a BEC linear power stabilizer to provide power to the receiver and servos from the propulsion battery.

Technical data:

• Application: Airplane, Helicopter
• Continuous Current [A]: 40
• Max peak - instantaneous current [A]: 55
• Li-XX power supply: 2 - 3
• NiXX power supply: 5 - 9
• BEC voltage [V]: 5
• BEC current [A]: 3
• Length [mm]: 68
• Width [mm]: 25
• Height [mm]: 8
• Weight [g]: 39
• Uni-directional
• Brake: YES
• Input for sensors: No
• Programmable: YES
• Programming card: KAVAN Program Card (KAV32.42015)
