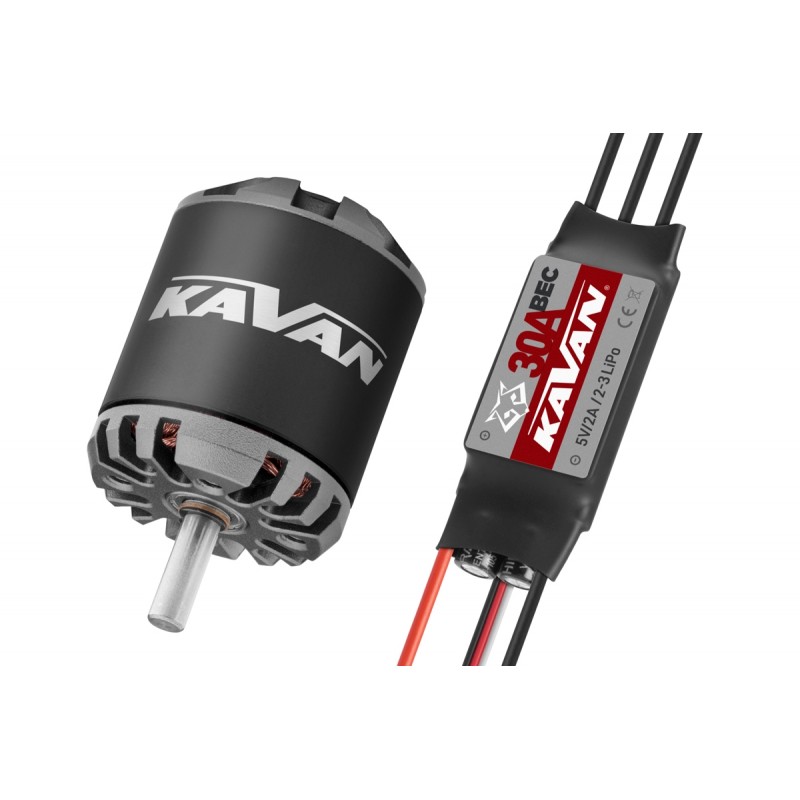

KAVAN C2836- 915 + KAVAN R-30B - COMBO SET (KAV30.0132C)

The KAVAN C motors are powerful brushless rotary electric motors ("outrunner") with excellent electrical characteristics, sophisticated design and excellent manufacturing processing. They are a very good choice for flying recreational sport models with excellent performance, good efficiency and favorable price. They are low-speed, high-torque motors that can handle large-diameter propellers and climb without the need for a gearbox.

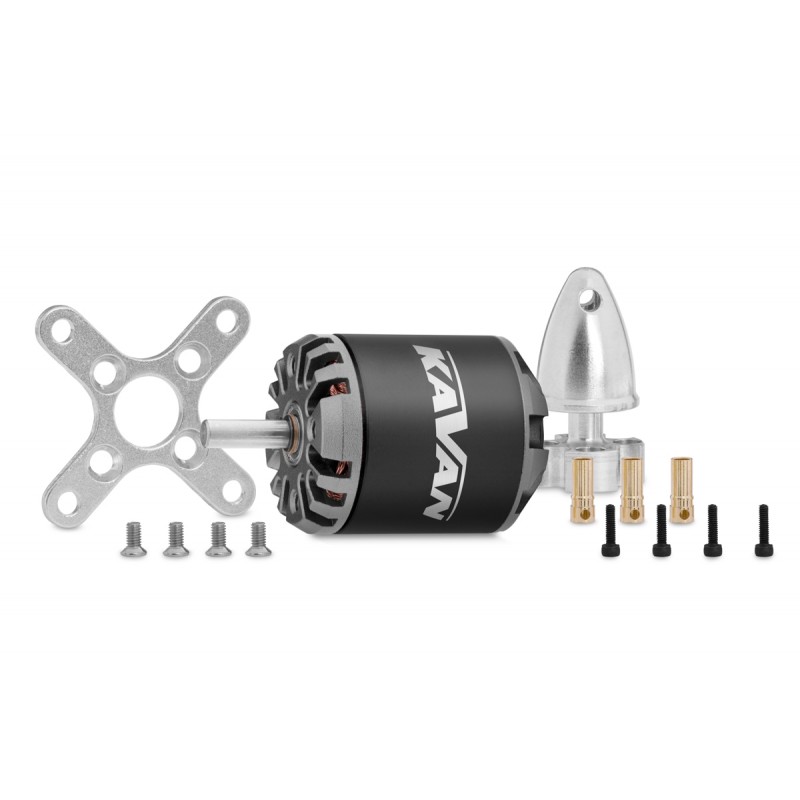

Included: motor with soldered connectors, crosshead, hub mount, screws, speed controller

Technical data:

• Power supply [LiXX]: 2 - 4
• KV [RPM]: 915
• Max. power (30s / 4S LiPo) [W]: 220
• No-load current (2S) [mA]: 700
• Max. peak current (30s) [A]: 20

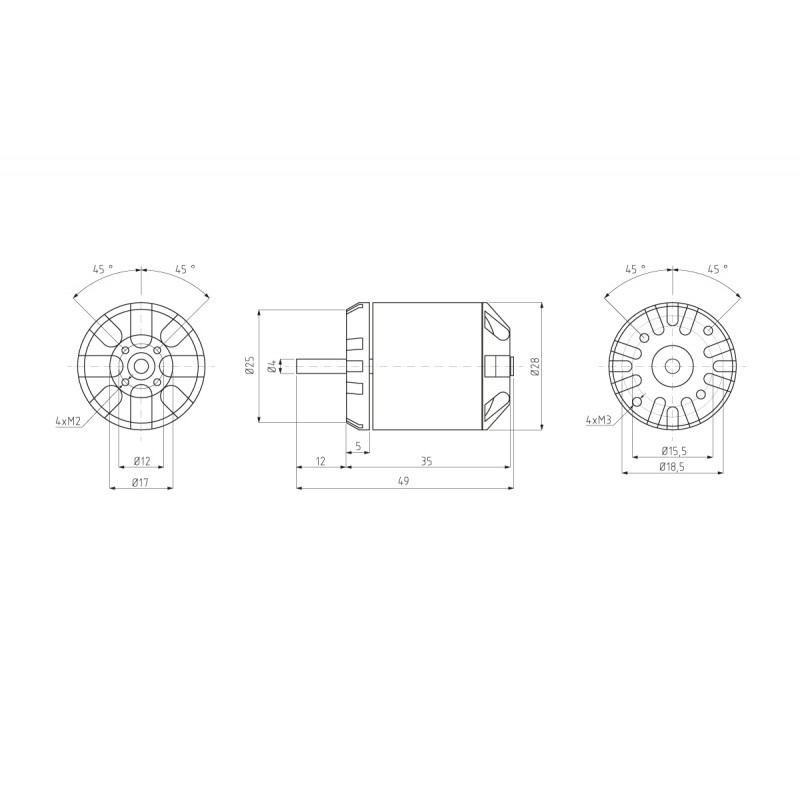

• Diameter [mm]: 27.8
• Length [mm]: 37
• Wheel diameter [mm]: 4
• Weight [g]: 67
• Number of fields: 14
• Recommended regulator [A]: 25 - 30
• Model weight up to [g]: gliders - 1050 / trainers - 900 / aerobatics - 800 / 3D - 600
• Recommended propeller ["]: 2S: 12x5-6" / 3S: 11x5-6" / 4S: 9x5"

+ KAVAN R-30SB RPM REGULATOR

Programmable microprocessor-based controllers for brushless, sensorless AC motors designed with the capabilities of state-of-the-art solid-state technology. They offer easy and clear programming with the transmitter, and really simple and instant setup with the KAVAN R LED programming card (sold separately). It is used to control the speed of AC electric motors in Li-Po battery-powered recreational model aircraft. Features a BEC linear power stabilizer to provide power to the receiver and servos from the propulsion battery.

Technical data:

• Application: Airplane, Helicopter
• Continuous Current [A]: 30
• Max peak - instantaneous current [A]: 40
• Li-XX power supply: 2 - 3
• NiXX power supply: 5 - 9
• BEC voltage [V]: 5
• BEC current [A]: 2
• Length [mm]: 68
• Width [mm]: 25
• Height [mm]: 8
• Weight [g]: 37
• Uni-directional
• Brake: YES
• Input for sensors: No
• Programmable: TAk
• Programming Card: KAVAN Program Card (KAV32.42015)
