Kavan Combo

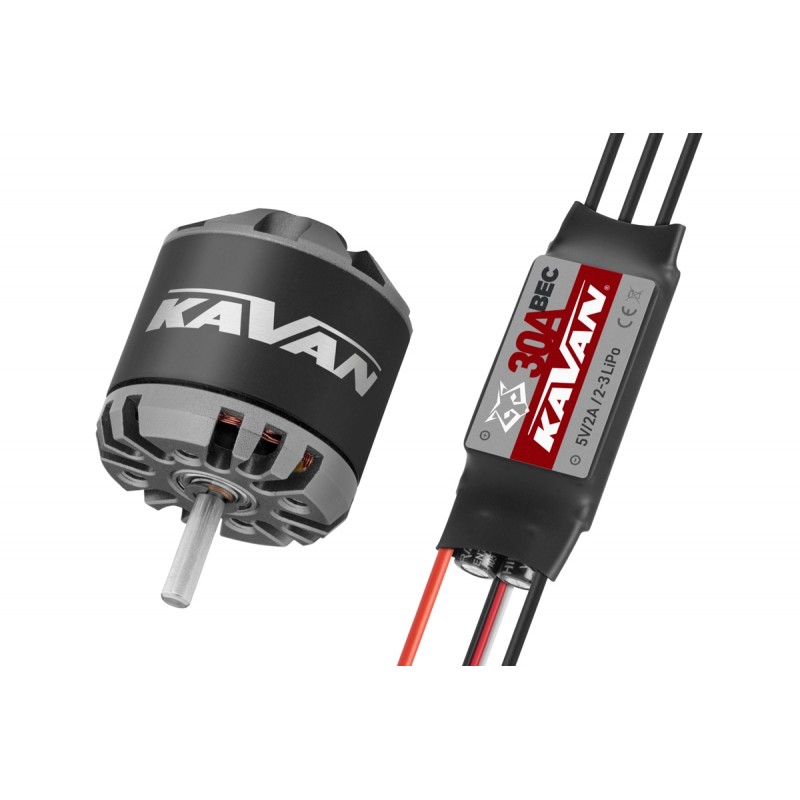

KAVAN C2830-1300 + KAVAN R-30B - COMBO SET (KAV30.0124C)

€37.21
12-6873
KAVAN Europe
In stock

The KAVAN C motors are powerful brushless rotary electric motors ("outrunner") with excellent electrical characteristics, sophisticated design and excellent manufacturing processing. They are a very good choice for flying recreational sport models with excellent performance, good efficiency and favorable price. They are low-speed, high-torque motors that can handle large-diameter propellers and climb without the need for a gearbox.

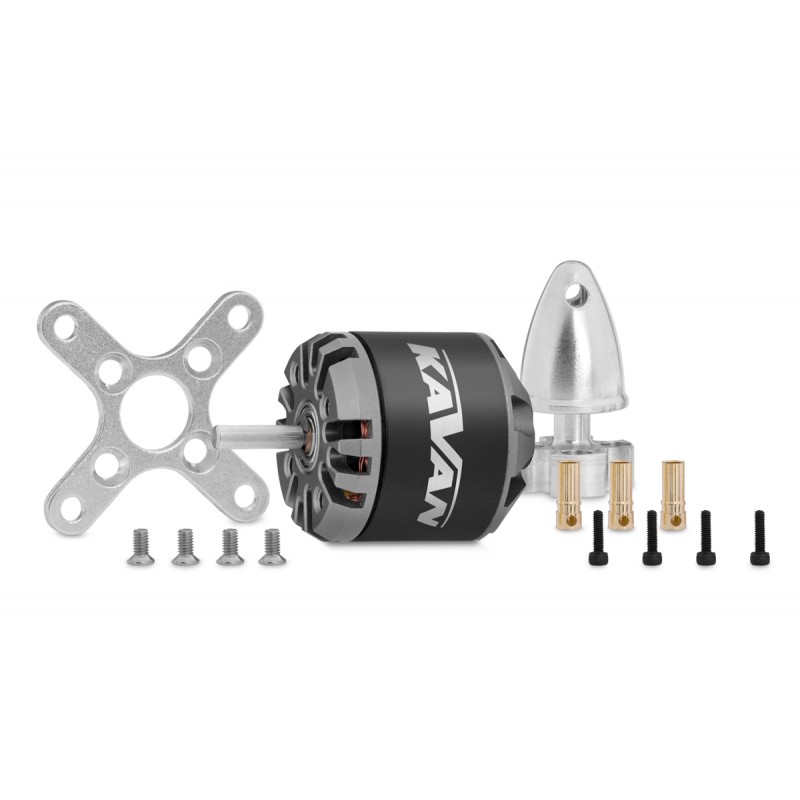

Included: motor with soldered connectors, cross-brace, hub mount, screws, speed controller

Technical data:

  • Power supply [LiXX]: 2 - 3
  • KV [RPM]: 1300
  • Max. power (30s / 3S LiPo) [W]: 210
  • No-load current (2S) m[A]: 700
  • Max. peak current (30s) [A]: 25

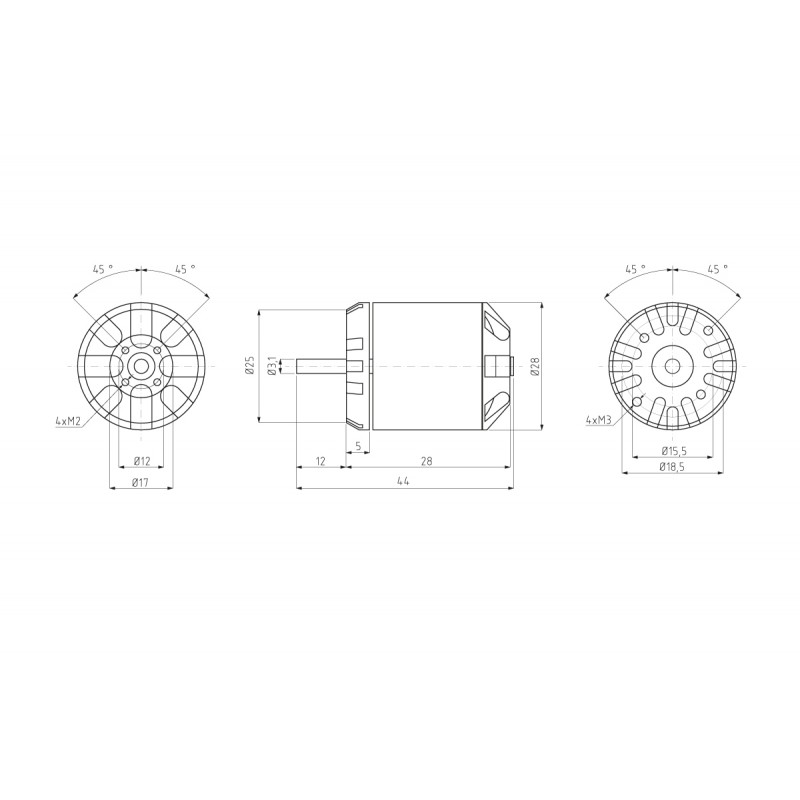

  • Diameter [mm]: 27.8
  • Length [mm]: 31
  • Cylinder diameter [mm]: 3,175
  • Weight [g]: 60
  • Number of fields: 14
  • Recommended regulator [A]: 25 - 30
  • Model weight up to [g]: gliders - 800 / trainers - 700 / aerobatics - 600 / 3D -
  • Recommended propeller ["]: 2S: 9x5-6" / 3S: 8x5-6"

+ KAVAN R-30SB RPM REGULATOR

Programmable microprocessor-based controllers for brushless, sensorless AC motors designed with the capabilities of state-of-the-art solid-state technology. They offer easy and clear programming with the transmitter, and really simple and instant setup with the KAVAN R LED programming card (sold separately). It is used to control the speed of AC electric motors in Li-Po battery-powered recreational model aircraft. Features a BEC linear power stabilizer to provide power to the receiver and servos from the propulsion battery.

Technical data:

  • Application: Airplane, Helicopter
  • Continuous Current [A]: 30
  • Max peak - instantaneous current [A]: 40
  • Li-XX power supply: 2 - 3
  • NiXX power supply: 5 - 9
  • BEC voltage [V]: 5
  • BEC current [A]: 2
  • Length [mm]: 68
  • Width [mm]: 25
  • Height [mm]: 8
  • Weight [g]: 37
  • Uni-directional
  • Brake: YES
  • Input for sensors: No
  • Programmable: TAk
  • Programming Card: KAVAN Program Card (KAV32.42015)
