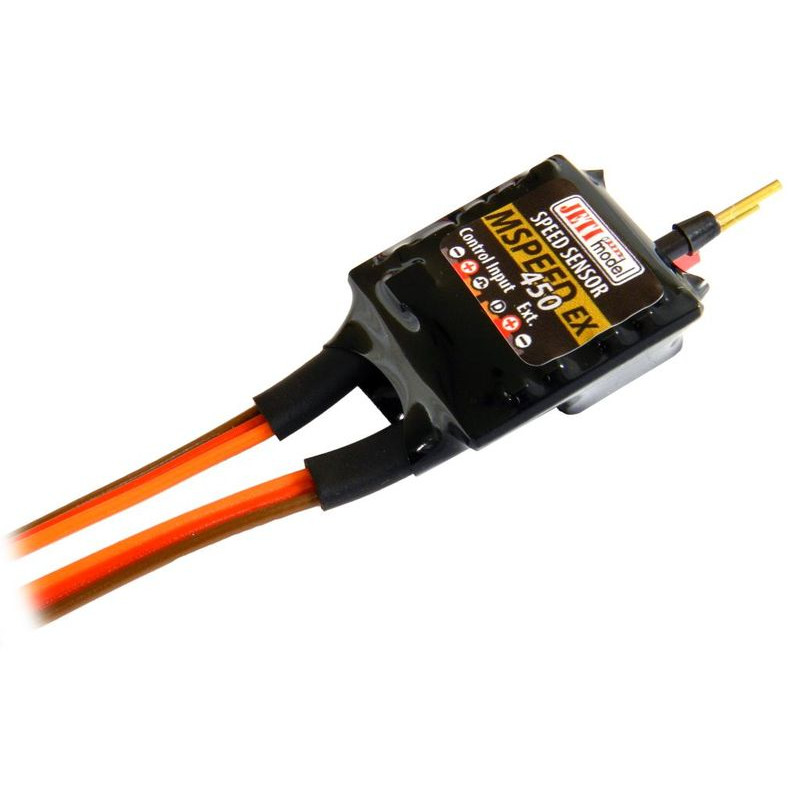

JET MSPEED 450 (JEX-MS-450) sensor prędkości

The MSPEED 450 EX is a sensor that measures the speed of a flying model in the air to provide an indicated airspeed (IAS). Indicated airspeed can be helpful to the pilot, for example, allowing the pilot to determine the model's stall speed and set an alarm when the model approaches a critical speed. Maximum speed: 450 km/h Another function of the sensor is to allow the pilot to set the desired speed and the degree above or below that speed at which the transmitter module should sound an alarm. To make it easier to read the indicated airspeed, a bar graph is displayed, marking the steps configured accordingly. Airspeed measurement is based on the principle of changing dynamic pressure measured by a Pitot tube connected by a silicon tube. Using the Duplex wireless system, sensor information can be transmitted to the pilot in real time, allowing immediate feedback on changes in airspeed and deviations from configured steps.

Specifications:

• dimensions: 22x25x13 mm
• weight: 21 g
• range of measured speed: 20 - 450 km/h
• power supply: 3.5 - 8.4 V

For more information, photos and user manual, please visit the manufacturer's website (link in the tab above).

*Follow the instruction manual attached to the product.
