JETI Telemetry Model

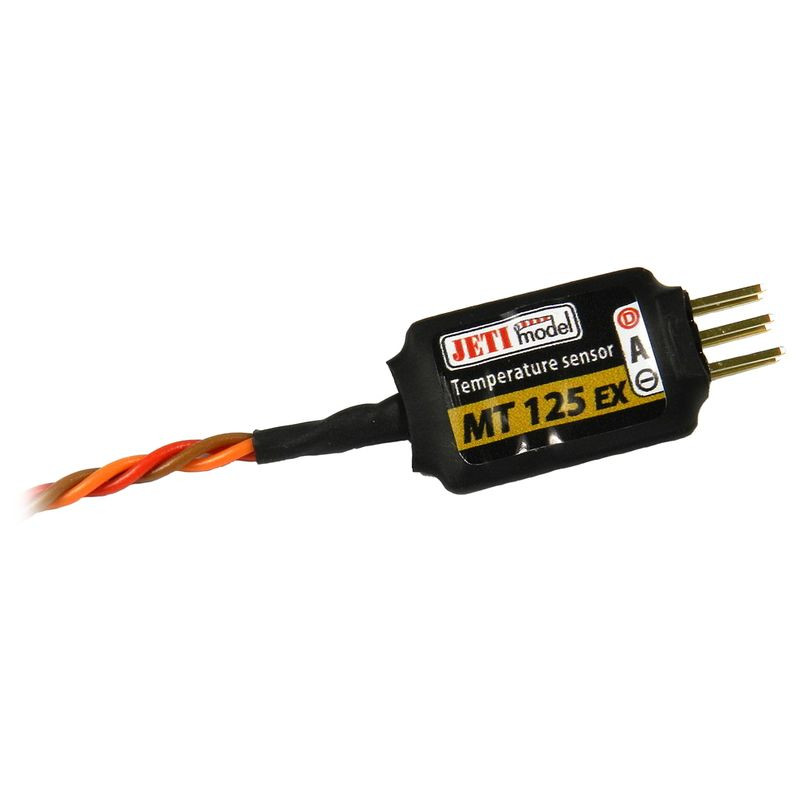

JETI MT125 (JEX-MT-125) temperature sensor

€45.95
12-9935
JETI model
In stock

Jeti MT125 EX - a telemetry sensor for measuring the temperature (up to 125o) of equipment mounted in the model, such as motors, regulators, battery packs, etc. Information about the temperature of the measured unit is displayed "live" - remotely, while the model is running, on the Jeti Box screen, thanks to wireless data transmission in the 2.4 GHz band.

Thanks to the innovative use of 2.4 GHz technology, the Duplex system makes it possible not only to transmit information in the direction of the transmitter --> model, but also in the opposite direction, model --> transmitter. The information collected with Jeti's telemetry sensors, is displayed "live", in real time on the LCD display of the JetiBox, connected via a communication cable to a module installed in the transmitter.

The MT125 EX is constructed from two parts - a module that collects information regarding the temperature of the devices in question, as well as two cables connected to it via standard servo plugs, terminated with satellite touch sensors. The Jeti MT125 can be connected directly to the receiver, the Expander (allowing multiple sensors to be connected to a single channel in the receiver) and also directly to the Jeti Box, displaying the sensor readings.

The MT125 EX temperature sensor allows you to set audible alerts to inform you when the permissible (minimum and maximum) temperature of the device measured by a particular sensor is exceeded. If the maximum or minimum value measured by the sensor is exceeded, the module installed in the transmitter generates sound signals transmitted in Morse code, varying, depending on the type of alert. The signals are generated even when the Jeti Box is not connected to the transmitter module. However, if the Jeti Box is connected to the transmitter module, the alert information is additionally displayed on its LCD display. If several alerts occur at the same time, the information on the JetiBox's display, as well as the signal generated by the Duplex module, changes sequentially to inform of each exceedance.

Specifications :

  • Dimensions: 20 x 14 x 4 mm
  • Weight (without cables): 6 g (3 g)
  • Number of sensors: 2
  • Sensors: pluggable (servo plug), satellite
  • Temperature measurement range: from -55oC to 125°C
  • Measurement accuracy: +/- 0.5°C
  • Operating voltage: 3,5 - 8,4V
  • Internal current consumption of MT module and sensors: 7 mA

For more information and photos, please visit the manufacturer's website (link above in the tab).

*Follow the instruction manual included with the product.
