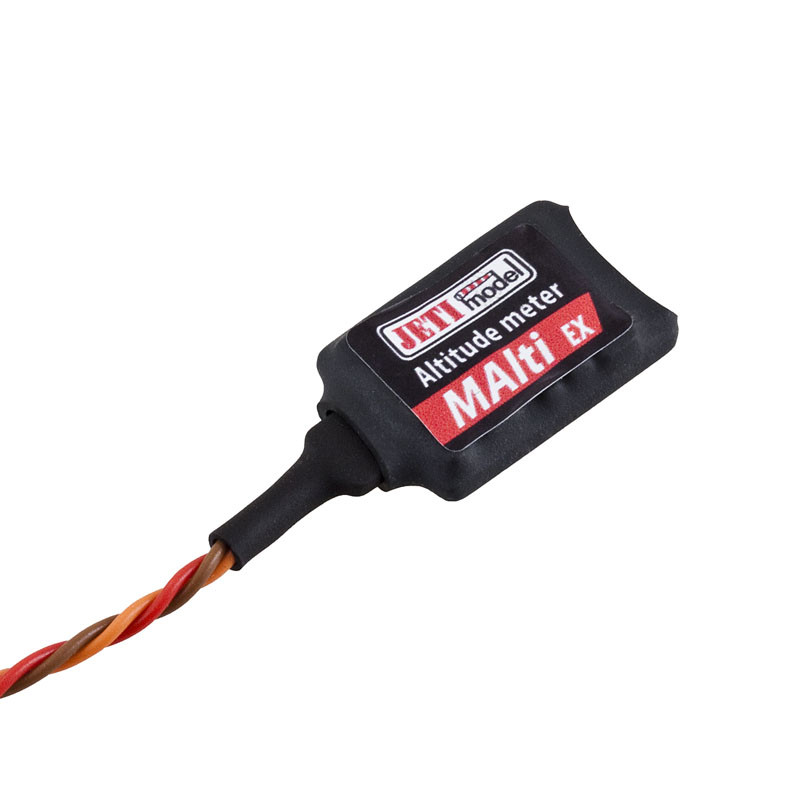

JETI DUPLEX EX MAlti REV.2 (JEX-MA-R2) height sensor

Jetimodel's Malti REV 2. EX sensor measures atmospheric pressure and, using the acquired data, calculates altitude above sea level and relative height from the ground. The sensor has the ability to alert the user when any of the alarm conditions are exceeded.

Data from the sensor can be sent to the user via the Duplex system.

Characteristics:

• Measures altitude, pressure and temperature
• Alarm beeping capability when using Jeti TX (Europe) or JETIBOX profi module
• EX Bus protocol-compatible device, configurable via special menus on Jeti DC/DS transmitters
• Possibility of software updates

Technical specifications:

• Weight: 5 g
• Dimensions: 30 x 16 x 7 mm
• Power supply: 3.5 - 8.4 V
• Average current consumption: 15 mA
• Accuracy of height measurement: up to 0.1 m
• Error range: ±3m
• Measurement range: 450 - 1100 hPa

For more information and photos, please visit the manufacturer's website (link above in the tab).

*Follow the instruction manual that comes with the product.
