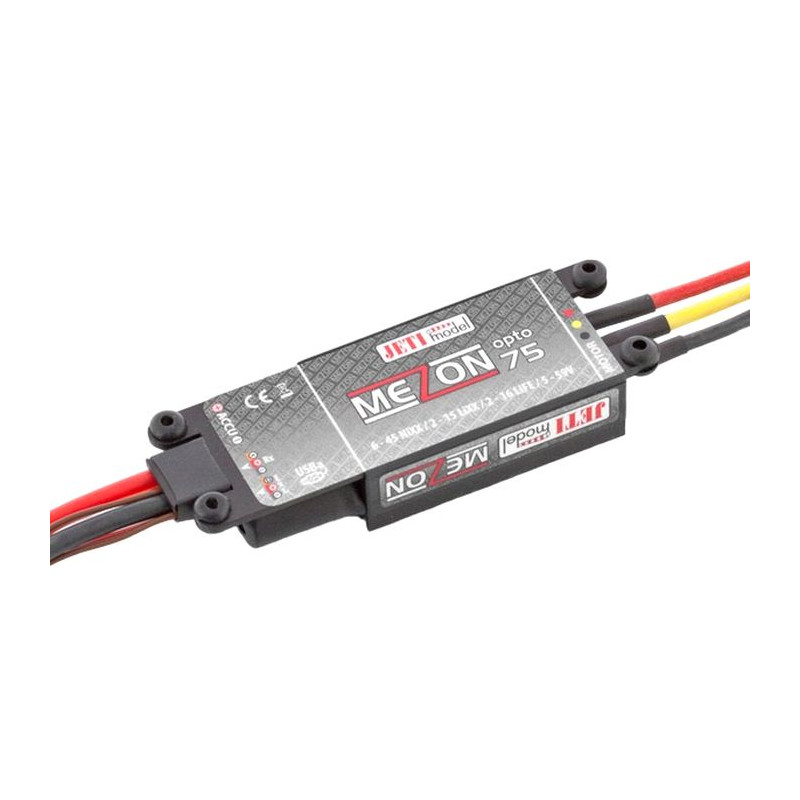

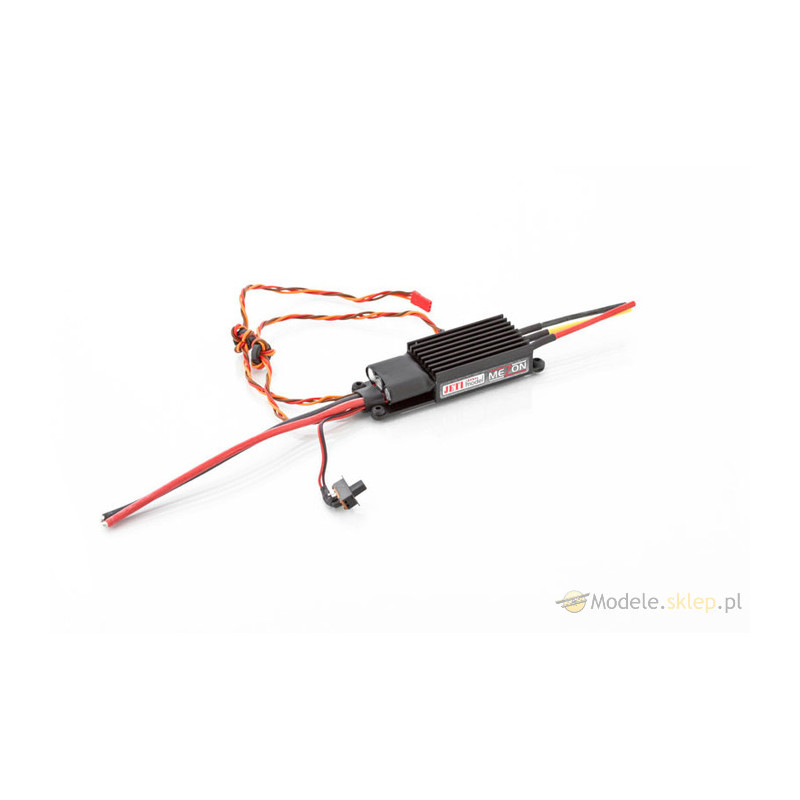

JETI MESON 50 OPTO (JM-075-O)

The MEZON line of controllers is based on the successful SPIN pro line of controllers. The controller offers progressive control combined with high performance that optimizes brushless motor operation. A compact design that includes a rugged housing with integrated cooling fins helps ensure efficient heat dissipation for cooling.

Jeti's advanced MEZON ESC design and software enable extremely precise and efficient motor control. Our MEZON ESCs can be fully integrated with DUPLEX EX systems. With DUPLEX integration, all data is measured in real time. MEZON ESCs are designed to be able to measure the exact capacity of the battery in use and allow the engine cut-off point to be set based not only on the cell voltage, but also on the overall capacity of the battery.

MEZON controllers are equipped with both current and temperature overload protection. All MEZON controllers are equipped with the EX Telemetry System to provide maximum monitoring and diagnostics for your model. This system in cooperation with the DUPLEX system gives the modeler much more confidence and "peace of mind". Now you can easily monitor battery capacity consumption , battery current consumption in real time, controller temperature and other measurement data.

Controllers with integrated BEC circuits provide a powerful voltage controller that can drive servos directly from the battery, eliminating the need for a second on-board battery. The firmware in all MEZON controllers can be easily updated by the modeler. This means that with a computer and a USB adapter, it only takes a few clicks to take advantage of all the latest updates and cool new features. You can easily configure all MEZON controllers with the universal JETIBOX programming tool.
MEZON's OPTO line of brushless ESCs has an optically isolated receiver input that is isolated from the power management circuitry. This guarantees interference-free operation. The OPTO line of brushless ESCs does not contain any BEC circuit. Additional power must be provided to the on-board electronics from the receiver battery or a separate voltage regulator such as the MAX BEC.

Specifications:

• Number of lithium cells supported: 2 - 14
• Constant current: 75 A
• Dimensions: 36x24x109 mm
• Telemetry: yes

• Weight: 120 g

For more information and photos, please visit the manufacturer's website.

*Follow the instruction manual included with the product.
