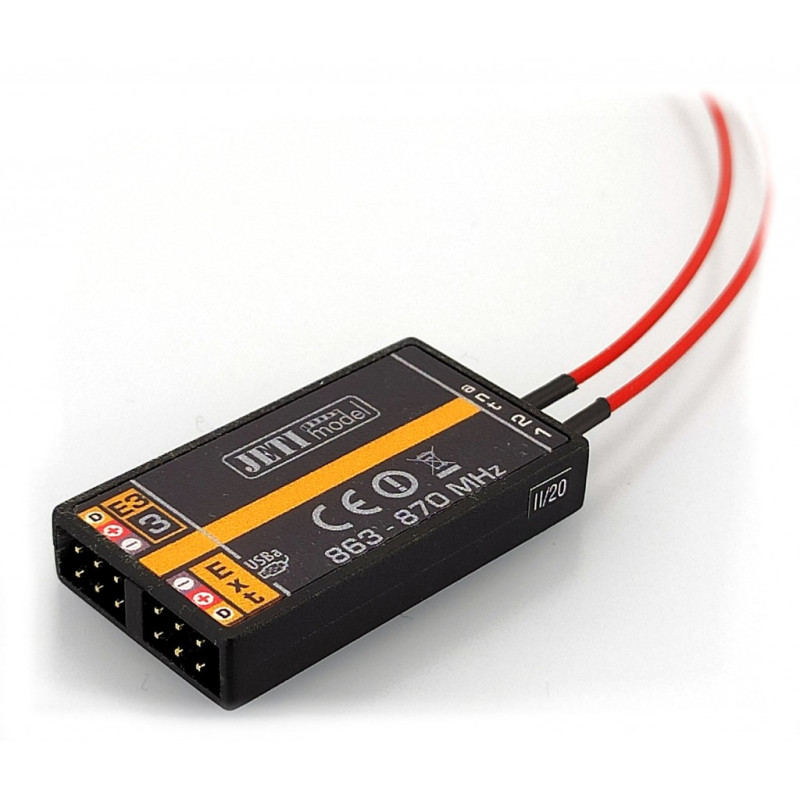

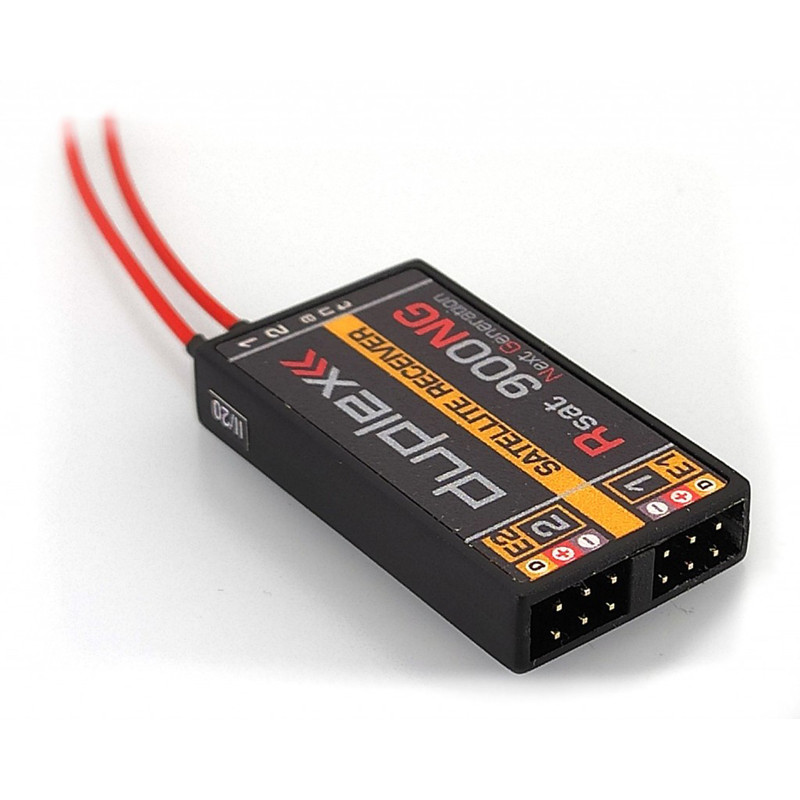

JETI DUPLEX RSat 900 NG RECEIVER (JDEX-RSNG-900)

Duplex RSAT 900 NG (Next Generation) series receivers are designed to work with JETI DC / DS transmitters equipped with 900MHz NG module (DS-12, DS-16 II and DC-16 II).

These 900MHz NG receivers have better signal coverage and are less susceptible to interference. Duplex RSAT 900MHz NG receivers use the latest LoRa module technology. The 900MHz NG receivers are designed as a backup system in case the main 2.4GHz system fails due to external interference. This greatly increases the safety of your RC model. RSAT 900 and RSAT 900 NG receivers are not compatible!

Basic specifications:

• Weight [g]: 11
• Dimensions [mm]: 40 x 22 x 7
• Telemetry: yes
• Compatible protocols: DUPLEX 900 MHz EX, bus EX

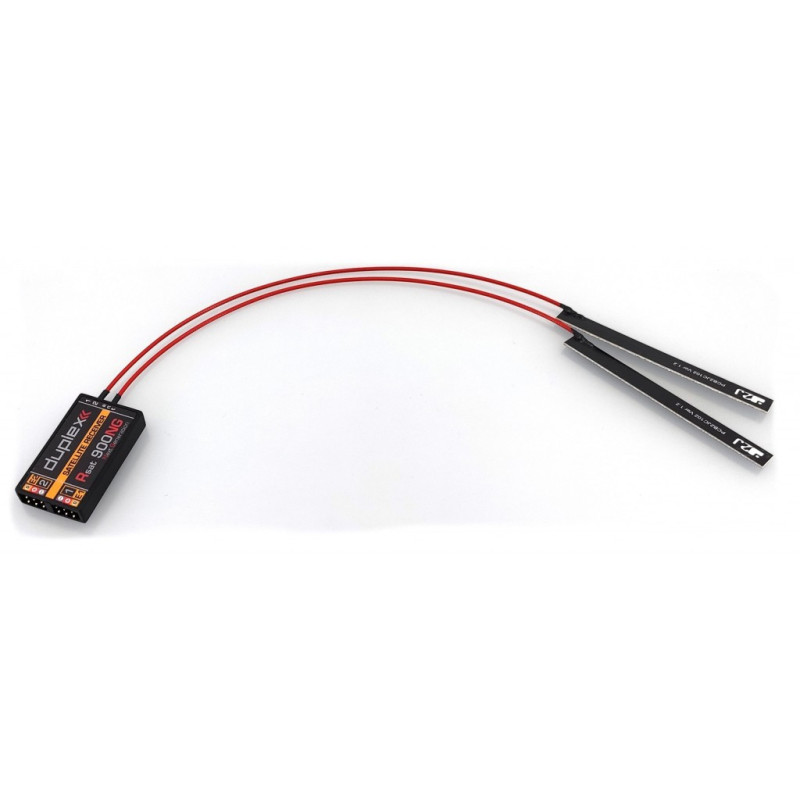

• Antenna length [mm]: 2 x 260
• Supply voltage[V]: 3,5 - 8,4
• Output power[dBm]: 14
• Receiver sensitivity[dBm]: -120

*Follow the instructions included with the product.

For more information and photos, please visit the manufacturer's website (link in the tab above).
