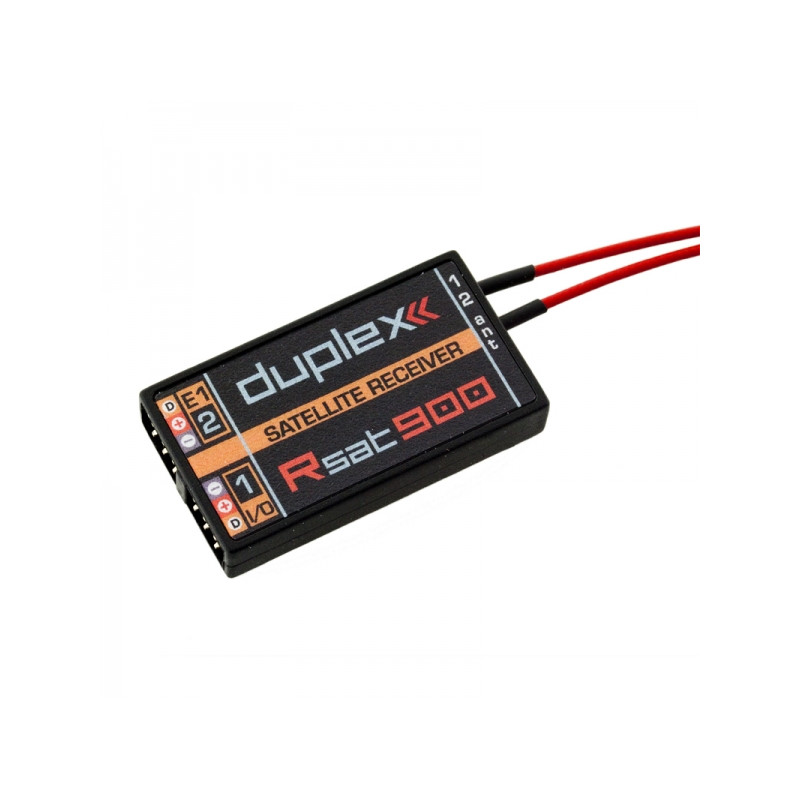

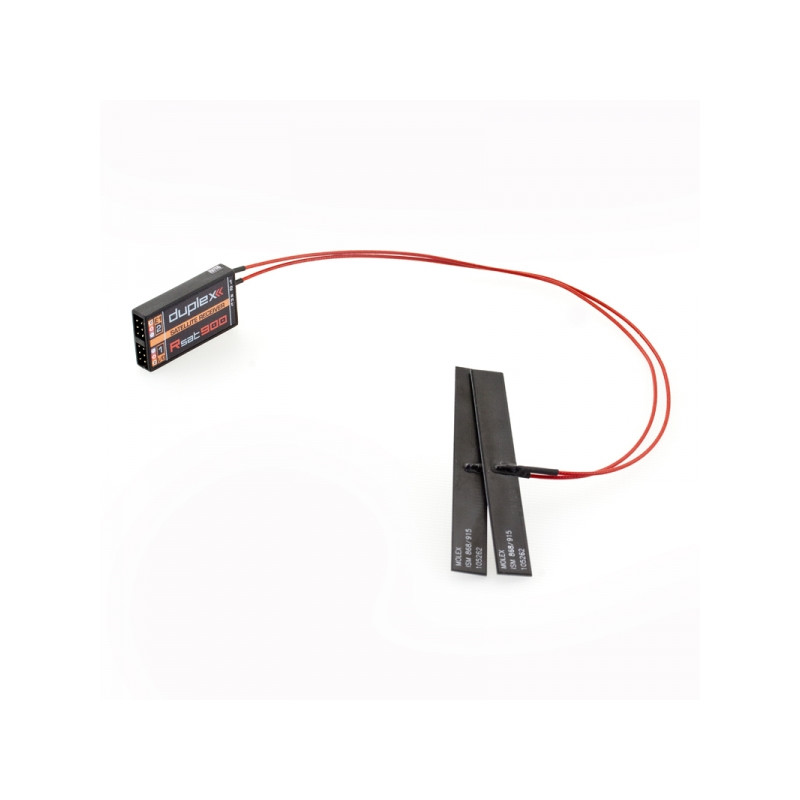

JETI DUPLEX Rsat 900 MHz / spare receiver (JDEX-RS-900)

Auxiliary receiver Rsat 900, from the renowned Czech company Jeti Model.
The receiver operates at a second, additional frequency of 900 mHz (which are used by DC-24 and DS-24 instruments, among others) and serves as a signal booster in case of signal loss or interference in the 2.4 GHz band.

Specifications:

• Weight: 11 g
• Number of channels:3
• Operating frequency: 900 mHz - EU: 863-870 MHz / US: 902-928 MHz / Au: 918-926 MHz
• Dimensions: 40 x 22 x 7 mm
• Operating temperature: -10 ... 85 °C
• Compatible protocols: DUPLEX 900 MHz EX, EX bus, EX Bus, UDI, PPM
• Supply voltage: 3,5 - 8,4 V
• Average consumption: 75 mA
• Telemetry: yes

Additional features:

• PPM input
• PPM input
• Integrated expander for EX and EX Bus devices
• UDI digital output

JETI RSAT 900 receivers are designed to work with DC/DS-24 transmitters in the 900MHz frequency band.

*Follow the instructions included with the product.
