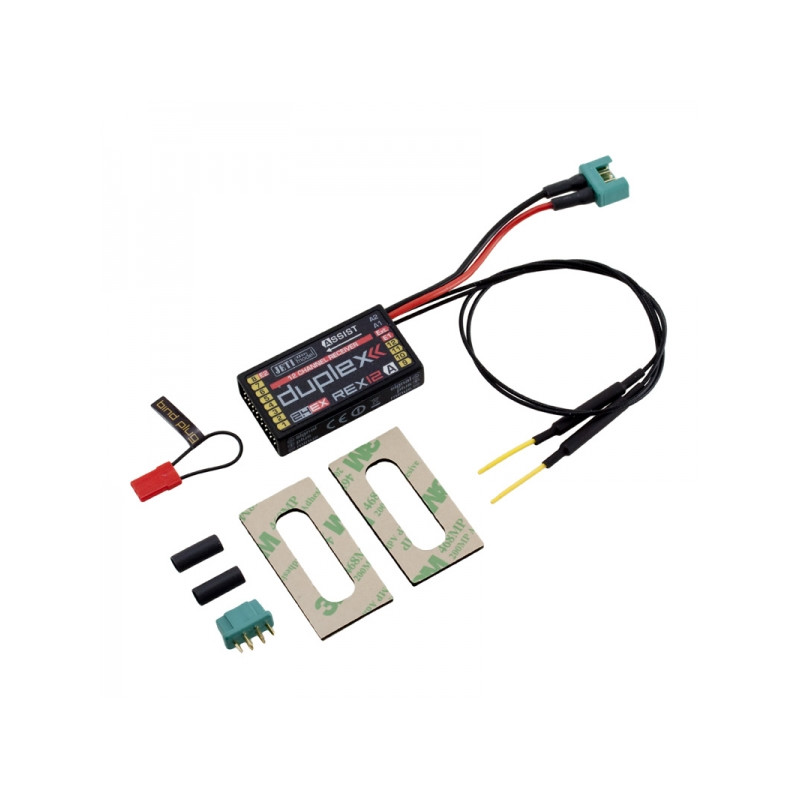

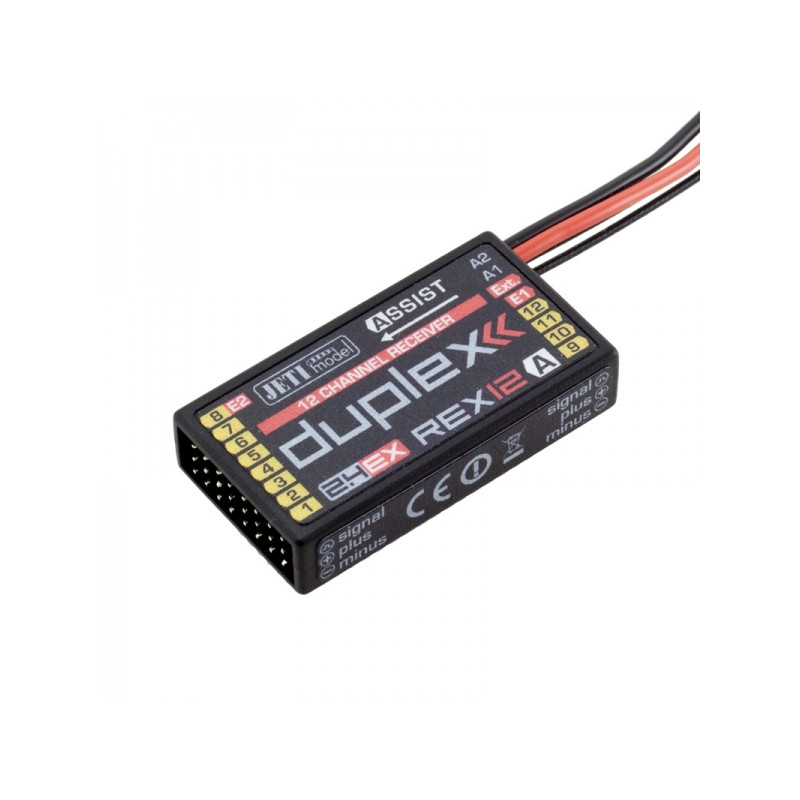

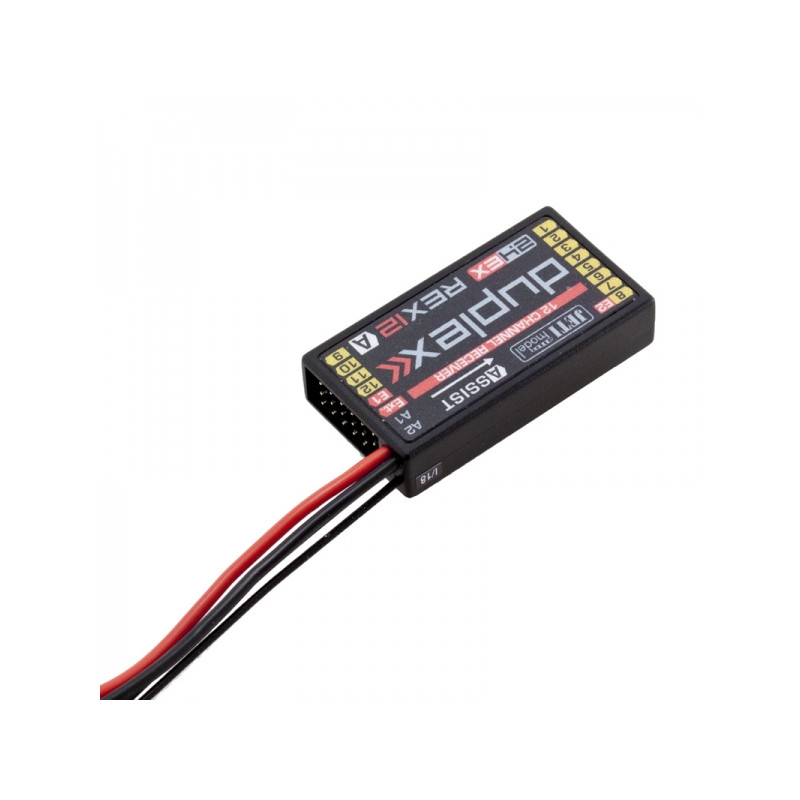

JETI REX 12 Assist 2.4GHz RECEIVER (JDEX-RR12A)

jeti REX 12A EPC 12-channel full-range receiver with built-in ASSIST stabilization system, compatible with Jeti EX and EX Bus protocols. The receiver supports telemetry functions and has a lead-out connector (MPX type) for external power connection.

Jeti ASSIST (A) series receivers use the capabilities of REX receivers with the extension of an advanced intelligent stabilization system, designed for model aircraft and multi-rotorcraft. This system works in all 3 axes and facilitates flight in high wind and challenging weather conditions. With this system, all kinds of aerobatics will be performed with greater control and precision. The receivers have the option to function in several modes that will assist both advanced pilots and beginners.

Features:

• Expandable to 16 channels of operation
• Cooperation with many types of multicopters (from tricopters (3 arms) to octocopters (8 arms)
• Programmable 3 operating modes, with horizon line stabilization and climb options
• Gain function tuning with free channels
• Built-in state-of-the-art 3-axis gyroscope, 3-axis accelerometer and barometric altimeter
• Support for LED strips (built-in WS2812 microchip)
• Support for external servo-controlled camera gimbal
• Intelligent fail-safe
• Vibration analysis
• Receiver fully compatible with DC/DS series transmitters
• Can be programmed from a computer
• Telemetry: receiver voltage, signal quality, overload (G-force), climb direction
• Possibility of direct connection of 3 telemetry sensors
• Up-to-date software downloadable from the manufacturer's website

Technical specifications:

• Weight: 24 g
• Dimensions: 51x28x11 mm
• Number of channels: 12
• Telemetry: yes
• Compatible protocols: DUPLEX 2.4GHz EX, EX Bus
• Antenna length: 2 x 400 mm
• Operating voltage: 3,5 - 8,4 V
• Average current consumption: 75 mA
• Satellite receiver support: yes
• Output power: 15 dBm
• Receiver sensitivity: -106 dBm
• ASSIST stabilization: yes

For more technical data, photos and instructions, visit the manufacturer's website: TU

*Follow the enclosed instructions.
