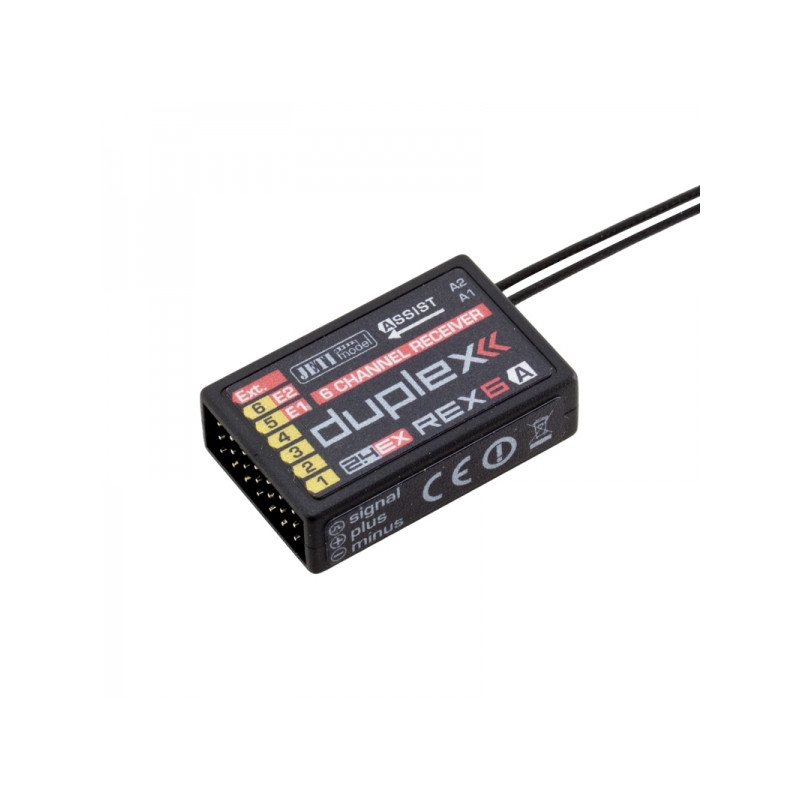

JETI ODBIORNIK DUPLEX REX 6 Asist 2.4GHz

jeti REX 6A 6-channel full-range receiver with built-in ASSIST stabilization system, supporting telemetry functions and compatible with Jeti EX and EX Bus protocols.

The Jeti ASSIST (A) series receivers use the capabilities of the REX receivers with the addition of an advanced intelligent stabilization system, designed for model airplanes and multicopters. This system works in all 3 axes and facilitates flight in high wind and challenging weather conditions. With this system, all kinds of aerobatics will be performed with greater control and precision. The receivers have the option to function in several modes that will assist both advanced pilots and beginners.

Features:

• Expandable to 16 channels of operation
• Cooperation with many types of multicopters (from tricopters (3 arms) to octocopters (8 arms))
• Programmable 3 operating modes, with horizon line stabilization and climb options
  Gain function tuning with free channels
• Built-in state-of-the-art 3-axis gyroscope, 3-axis accelerometer and barometric altimeter
• Support for LED strips (built-in WS2812 microchip)
• Support for external servo-controlled camera gimbal
• Intelligent fail-safe
• Vibration analysis
• Receiver fully compatible with DC/DS series transmitters
• Can be programmed from a computer
• Telemetry: receiver voltage, signal quality, overload (G-force), climb direction
• Possibility of direct connection of 3 telemetry sensors
• Up-to-date software downloadable from the manufacturer's website

Technical specifications:

• Weight: 11 g
• Dimensions: 38x25x11 mm
• Number of channels: 6
• Telemetry: yes
• Compatible protocols: DUPLEX 2.4GHz EX, EX Bus
• Antenna length: 2 x 100 mm
• Operating voltage: 3,5 - 8,4 V
• Average current consumption: 75 mA
• Satellite receiver support: yes
• Output power: 15 dBm
• Receiver sensitivity: -106 dBm
• ASSIST stabilization: yes

For more technical data, photos and instructions, visit the manufacturer's website: TU

*Follow the enclosed instructions.
