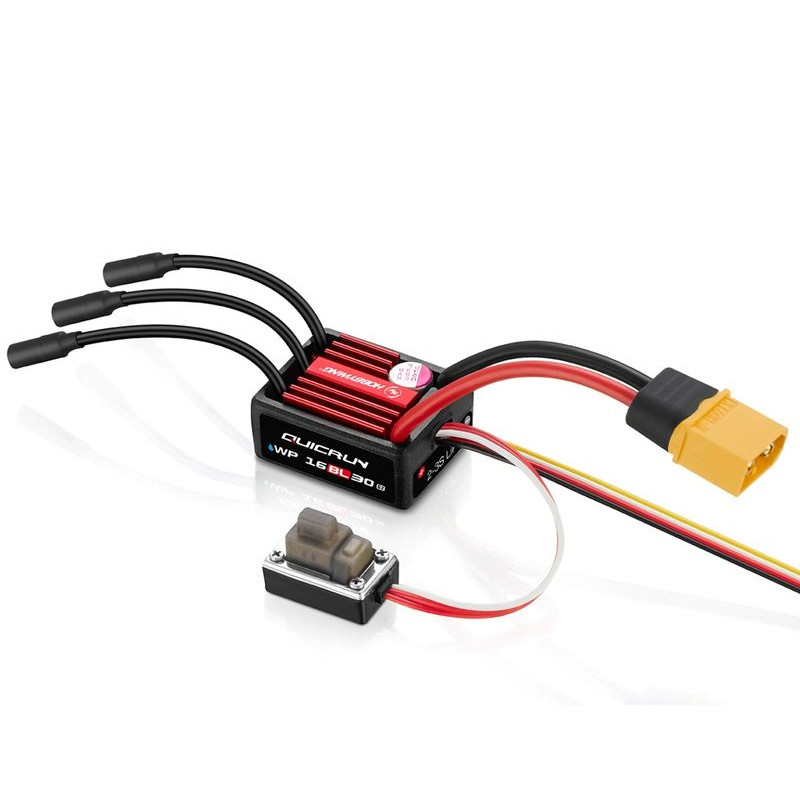

HOBBYWING QuicRun WP 16BL30 G2

Hobbywing 30110001 - QuicRun WP 16BL30 G2

QuicRun WP 16BL30 G2 is HOBBYWING's latest compact brushless speed controller, ideal for 1/16 and 1/18 scale vehicles.

• It provides smooth and stable operation thanks to its intelligent slow gear for less heat and better performance.
• Smaller size for easier installation (8.3% shorter, 7.1% narrower, 16.7% lower)
• Improved BEC: continuous 2 A, peak 4 A, switchable 6 V/7.4 V - ideal for high-torque servos
• IP67 waterproof - resistant to rain, mud and dust
• Easy programming via LCD/LED display or SET button
• Excellent value for beginners, with ease of connection and use
• Optimized for QuicRun 2030 G2 and 2435 G3 motors. Smart and robust speed controller designed for reliability and performance.

Type:

• Scale: 1/16, 1/18
• Brushed/Brushless: Brushless
• With/without sensor: Without sensor
• Waterproof: Waterproof

Specifications:

• Continuous/peak current: 30A/100A
• Input voltage: 2-3S
• BEC output: 6V/7.4V, 2A

Wires and connectors

• Input wires: black-16AWG-75mm*1, red-16AWG-75mm*1
• Output wires: black-16AWG-60mm*3
• Input connectors: black - 16AWG - 60mm*3
• Output connectors: 3.5mm gold (female)

Programming the ESC with the

• SET button on ESC: supported
• Program Box LED: supported
• Program Box LCD G2: supported
• LCD PRO: Supported
• OTA programmer: not supported
• Program port: shared with Throttle Wire

Data logging

• Extreme value: not supported
• Real-time data: not supported
• Historical data (graph): unsupported

Firmware

• Firmware update: not supported

Size and weight

• Size: 33.4 x 26.8 x 15.1 mm
• Weight: 38.5 g (including cables and connectors)

Applications

• Motors: Brushless sensorless / sensorless motor (sensorless mode only)
• Vehicles: 1/16, 1/18, On-Road and Off-Road as well as Short Course Truck and Monster Truck
• Matching motor: QUICRUN 2435 G2

*Follow the instruction manual included with the product.
