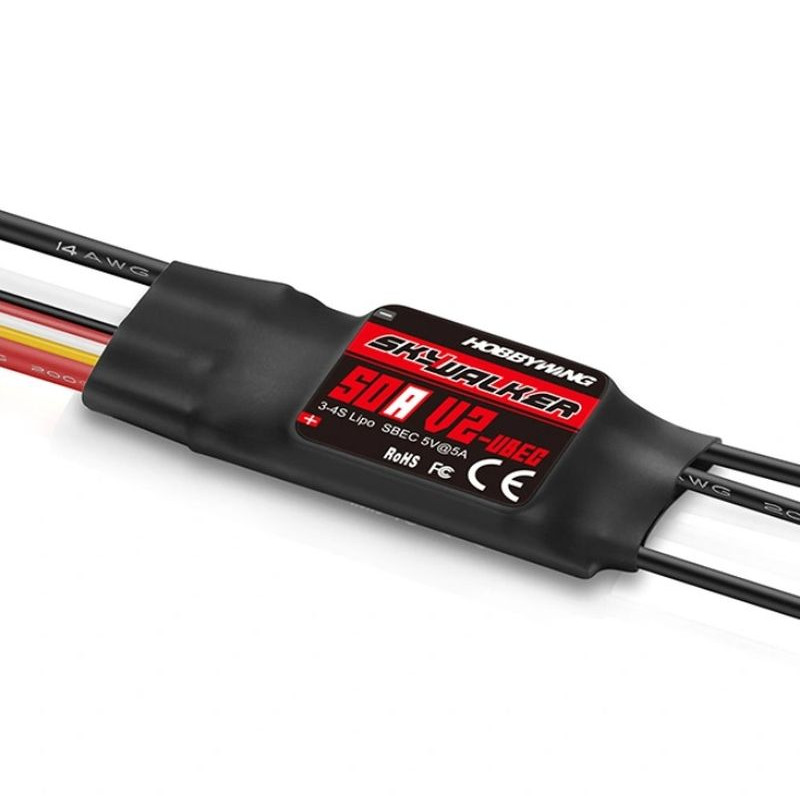

HOBBYWING SKYWALKER 50A RPM REGULATOR - UBEC - esc ( HW30216400 )

HOBBYWING SKYWALKER 50A SPEED CONTROLLER - UBEC - ESC

Skywalker V2 Features:

• ESC is equipped with a powerful 32-bit microprocessor (with a clock frequency of up to 96 MHz) and is compatible with various brushless motors.
• DEO (Driving Efficiency Optimization) technology significantly improves throttle response and driving performance, and lowers ESC system temperature.
• A separate programming cable to connect the ESC controller to the LED programmer, allowing users to program the controller anytime and anywhere. (For details, refer to the HOBBYWING LED programmer's instruction manual.)
• Normal/reverse braking mode (especially reverse braking mode) can effectively shorten the landing length of an aircraft.
• Search mode can help users find the aircraft with alarm signals emitted when the aircraft falls into a difficult environment.
• Many protection functions, such as start-up protection, ESC thermal protection, capacitor thermal protection, overcurrent protection, overload protection, incorrect input voltage protection and throttle loss protection, effectively extend the life of the ESC.

High quality and reliability.
A powerful 32-bit ARM M0 processor with up to 96 MHz, supports a maximum speed of up to 300,000 RPM (bipolar motor). High quality and reliability make the SKYWALKER V2 series very economical.

DEO Technology / Active Free Running.
The DEO (Driving Efficiency Optimization) technology used in the controller has many advantages. Fast and smooth throttle response, better stability and flexibility in flight. Higher control efficiency, longer flight time. Lower regulator temperature, higher reliability.

• Flexibility during flight
• Lower ESC temperatures
• Longer flight time

Reverse brake
With reverse brake mode and linear reverse brakes enabled, it can effectively shorten the landing length of an aircraft, simulating the landing of a real aircraft. Normal brake mode and off brake mode are also available; the braking force is adjustable in normal brake mode. (This is a proprietary patent of HOBBYWING) Mode

search
Search mode can help users find their aircraft by pulsing the engine to beep when the aircraft falls into a hard-to-reach place and is difficult to find. This mode can also be used to tell the user to disconnect a regulator battery that has not been running for a certain period of time to prevent the battery from being discharged and damaged.

Programmable parameters
Programmable via LED Program Box or transmitter. Users can easily program the SKYWALKER V2 according to their own preferences.
Programmable items:

Note: Values marked with * in the form below are factory default settings.

Multiple security features
Multiple protections include incorrect input voltage, ESC thermal protection, throttle signal loss (or fail-safe) and low-voltage cutoff, effectively extending ESC life.

• Incorrect input voltage
• Low voltage cutoff
• Thermal ESC
• Loss of throttle signal

Specifications (Skywalker 50A 6S V2):

• Type: Brushless aircraft speed controller
• Continuous/peak current: 50A/70A
• Input: 3-6S LiPo
• BEC output - switching mode: 5V, 6A
• Input wires: 14AWG-100mm
• Output wires: 14AWG-100mm
• Input connectors: No
• Output connectors: 3.5mm gold connectors (female)
• Firmware upgrade: not supported
• Size: 73x30x12mm
• Weight: 68g

ESC programming with:

• Transmitter: supported
• LED program card: not supported
• LED program box: supported
• LCD programmer: not supported
• WiFi module: not supported
• OTA programmer: not supported
• Program port: Program firmware

*Follow the instruction manual provided with the product.
