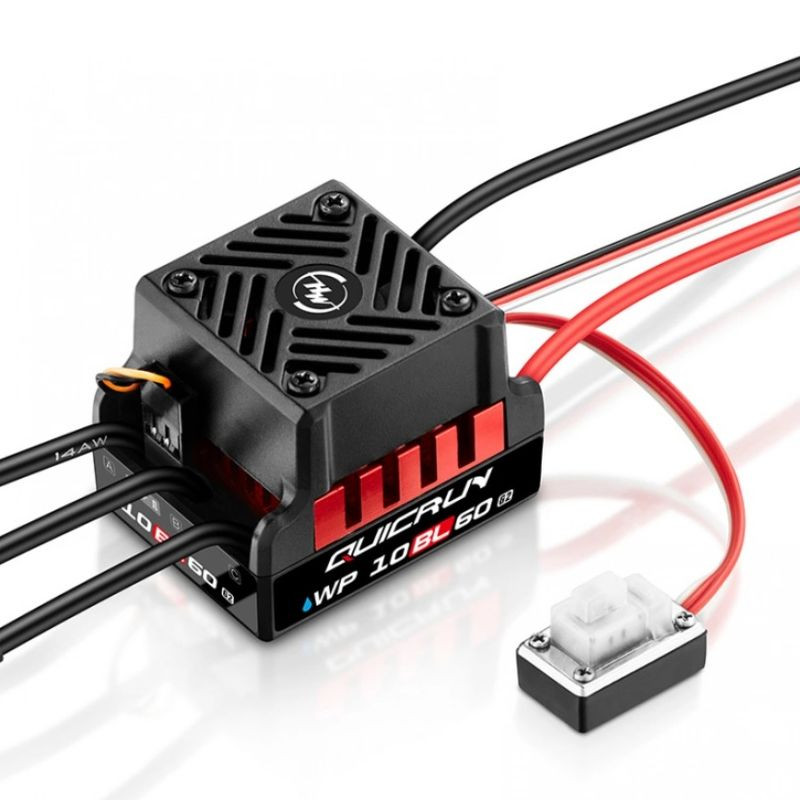

HOBBYWING QuicRun WP 10BL60 G2 Sensorless ESC 2-3S Car 1/10

Hobbywing HW30107300 - QuicRun WP 10BL60 G2 speed controllerIntelligentfree running technology effectively reduces heat generation.
Intelligent free-running technology enables the ESC regulator to achieve higher driving performance with lower operating temperature. In addition, it improves the stability and reliability of the regulator.
Small and compact.
The new QuicRun WP 10BL60 regulator is more compact than its predecessor:

• 2.5 mm shorter
• 1.5 mm narrower

Efficient cooling system.
A mesh heat sink design provides efficient cooling for the regulator. Each phase has a copper thermal bar for better cooling. Fan heatsink ensures that the regulator always operates at optimal temperatures.

Capacitor overheat protection.
The capacitor overheat protection function effectively prevents capacitors from exploding due to overloading. This prevents the user from damaging the regulator completely.

Ability to operate in all weather conditions.
The protection degree of the regulator reaches IP67. Thanks to its excellent water and dust resistance, the regulator can easily cope with various conditions such as rain, dust and sand.

Note: The mentioned IP67 protection degree provides resistance to splash, water and dust under normal use. The degree of protection is not permanent, and its protective properties may deteriorate due to daily wear and aging. Do not immerse it in water for long periods of time, as this may damage the product.

A wide range of programming methods
. The controller supports three programming methods:

• The multifunctional LCD PRO programming device, LED programming device and SET button make it easy for users to choose their favorite programming method to adjust parameters.

Excellent value for money.
Designed specifically for entry-level users. Easy to use, high quality product. Easy to install and use!

Specifications:

• Type: 1/10, brushless, sensorless, waterproof speed controller
• Continuous/peak current: 60A/360A
• Input voltage: 2-3S Lipo
• BEC output: switching mode 6V @ 3A
• Input wires: 14AWG-150mm
• Output wires: 14AWG-60mm
• Input connectors: No
• Output connectors: 4.0mm gold (female)
• Fan size: 30x30x10mm
• Fan voltage range: 6 V
• Fan powered by: BEC
• Firmware upgrade: not supported
• Size: 46x36.5x34.3 mm
• Weight: 82.6 g (including wires and connectors)

ESC programming by:

• SET button on ESC: supported
• Program Box LED: supported
• Program Box LCD G2: supported
• LCD PRO: Supported
• OTA programmer: not supported
• Program port: Shared with fan port

Applications:

• Motors: Sensorless brushless motor / sensorless motor (only in sensorless mode)
• Vehicles: 1/10 Road, Buggy, Short haul truck
• KV value/number of T: 2S LiPo: KV≤6000; 3S LiPo: KV≤3500 (motor size 3652/3660)

*Follow the instruction manual included with the product.
