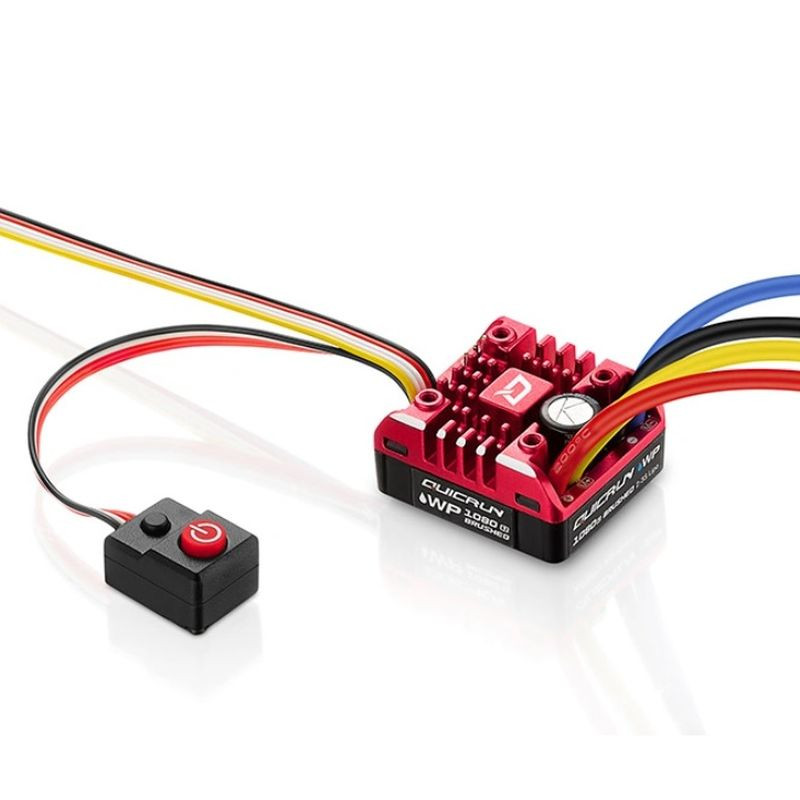

HOBBYWING QuicRun WP 1080 ESC 80A RPM REGULATOR (Brushed) 1/10 Crawler 2-3S (HW30120202)

Hobbywing QuicRun WP 1080 G2 Crawler ESC

Four modes are available - to suit different habits and control needs:

1. Forward with brakes
2. Forward and reverse with brakes
3. Forward and reverse
4. Real car driving mode

The first "Real Car Mode"
Engine direction can be switched in real time using the idle channel on the transmitter. Pull the trigger to "drive forward." Pull the trigger to "brake." Pull the trigger when the "reverse channel" is on to "drive backward" (requires an open channel on the receiver). This new feature will give the user a unique experience like no other.

Many easy to set parameters
15 programmable items allow drivers to easily tune their vehicle using an LED Programming Box connected to the programming port.

Improved temperature control
The new design lowers the regulator's operating temperature by about 15 degrees, improving reliability. The regulator also has a fan mount to meet additional cooling needs

BEC upgrade
The BEC upgrade includes a maximum output of up to 6 A and provides 6 V/7.4 V/8.4 V output options to support most servos on the market.

IP67 protection
IP67 standard for water and dust resistance in a variety of weather conditions and surfaces.

Note: The IP67 protection level listed above provides resistance to splash, water and dust under normal use and has been tested under controlled laboratory conditions. The IP67 protection level complies with GB / T 4208-2017 (domestic) / IEC 60529 (foreign) standards. Splash, water and dust resistance is not permanent, and the protection level may decrease due to aging.

Features:

• Fully waterproof design works well in all conditions. (Note: clean and dry the device after use to avoid rusting the connectors).
• HOBBYWING's patented copper heat-conducting plates attached to the MOSFET board allow rapid heat dissipation from the interior to a CNC-machined aluminum mesh heat sink for excellent heat dissipation.
• Highly reliable electronic switch design prevents mechanical damage to the switch caused by dirt, water, dust, etc.
• Adjustable drag brake and its speed for different vehicles, tracks and driving experience. Adjustable PWM frequency coupled with advanced free-running technology (/DEO) guarantees excellent throttle linearity and driving experience.
• The innovative real car mode makes downhill driving more stable and provides a new fun driving experience.
• It has the function of adjusting the handbrake force with the transmitter (AUX channel) in real time and switching the handbrake force anytime and anywhere according to demand.
• Multiple protections: under-voltage protection, thermal protection and throttle loss protection.
• Separate programming port for easy connection of an LED programming card to the controller.
• One-button programming of the ESC regulator and resetting to factory settings.
• Programming the ESC regulator with the Hobbywing LED programming card

Specifications:

• Type: 1/10, brushed, waterproof regulator
• Continuous/peak current: 80A/400A
• Input voltage: 2-3S Lipo / 5-9S NiMH
• BEC output: 6/7.4/8.4V at 4 (peak 6A)

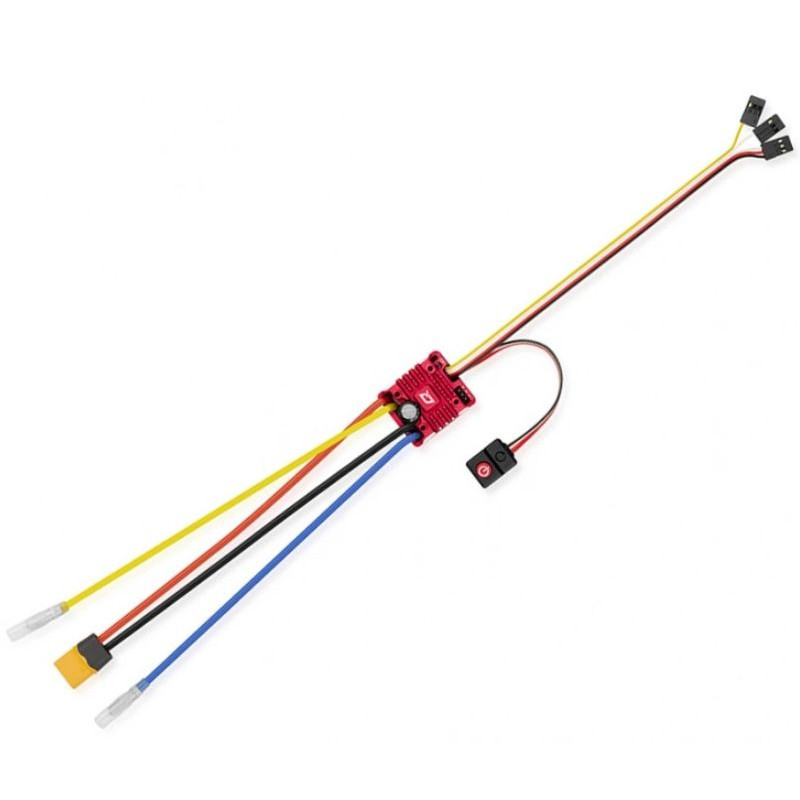

• Input wires: 14AWG-200mm
• Output wires: 14AWG-200mm
• Input connector: XT60
• Output connectors: 4.0mm bullet connectors (female)
• Size: 37.2 x 31.9 x 18.4mm
• Weight: 70.2 g (with wires)
• Motors: 540 and 550 size brush motors
• Vehicles: 1/10 Rock Crawlers
• Firmware upgrade: not supported

ESC programming via:

• SET button on ESC: supported
• Program Box LED: supported
• Program Box LCD G2: not supported
• OTA programmer: not supported
• Program port: separate

*Follow the instruction manual supplied with the product.
