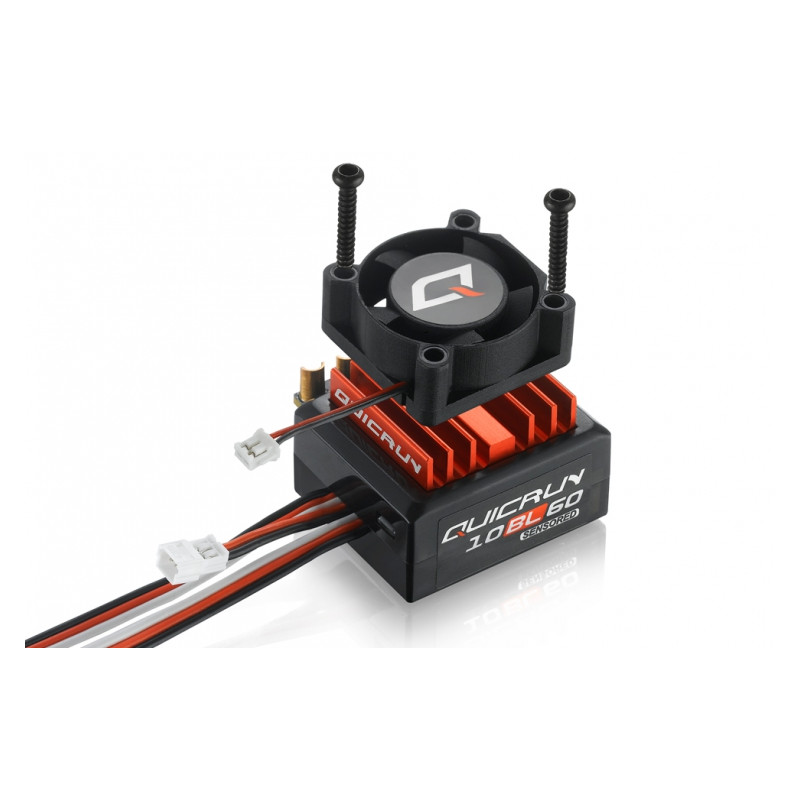

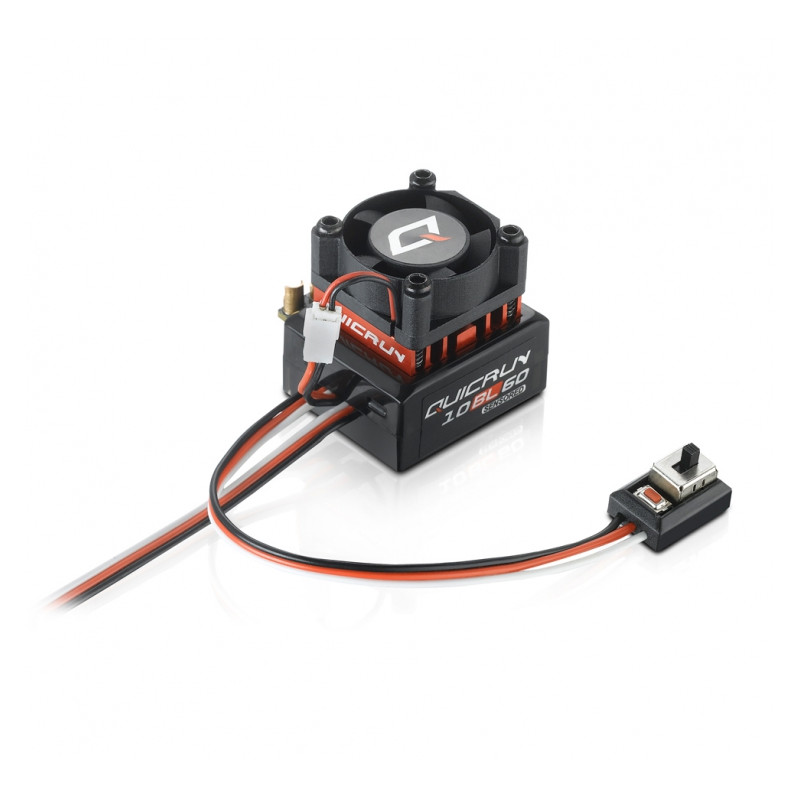

HOBBYWING SPEED CONTROLLER QUICRUN WP 10BL 60 (60A) ( HW3010800 )

This ESC is specially designed for beginner and intermediate modelers; it not only provides exceptional quality for HOBBYWING products, but simplifies operation.

Compact design and dual SD/SL mode support
Thanks to its compact design, it can be used in a variety of designs. With dual driving mode (with/without sensor), it is compatible with different engines and provides drivers with two different types of control.

High reliability and durability
Reliable hardware combined with advanced software technology allows QUICRUN 10BL60-SD to not only provide high power output, but also ESC circuit overload protection.

Efficient cooling system
Hobbywing's patented thermally conductive copper rod shield on the QUICRUN 10BL60-SD power board, which can efficiently and effectively transfer heat to the integrated aluminum heat sink housing, combined with a powerful cooling fan.

One-button programming and resetting to factory settings
The SET button on the ESC allows users to easily program or reset the ESC to factory settings.

Specifications:

• Scale: 1/10 for cars: touring / buggy / drifting / F1
• Brushed/brushless: BL (SL BL motors / SD BL motors)
• With/without sensor: SD
• Waterproof: No
• Continuous/peak current: 60A/380A
• Input: 2-3S LiPo/6-9 NiMH cells
• BEC output: linear mode: 6V/2A

Wires and connectors:

• Przewody wejściowe: czerwony-12AWG-200mm*1/czarny-12AWG-200mm*1
• Output wires: blue-12AWG-200mm*1/yellow-12AWG-200mm*1/ orange-12AWG-200mm*1
• Input connectors: No
• Output connectors: No

(Note: all of the above wire length is the original length, not the length visible from the outside)

Fan:

• Size: 25.0 x 25.0 x 10.0mm
• Voltage range: 5-8,4 V
• Supported by: Supported by BEC

ESC programming by:

• SET button on ESC: supported
• LED program field: supported
• LCD program field: not supported
• Wi-Fi module: not supported
• Program port: Program/interface cable

Firmware:

Firmware update: not supported

Dimensions and weight:

• Dimension: 33x28x31.5mm (with fan)
• Weight: 59g

KV rating/Number of T:

• 2S LiPo: 1/10 touring cars ≥ 8.5T, 1/10 trikes ≥ 13.5T
• 3S LiPo: 1/10 touring cars ≥ 13.5 T, 1/10 carts ≥ 17.5 T
  (3650 motors)

*Follow the instruction manual included with the product.
