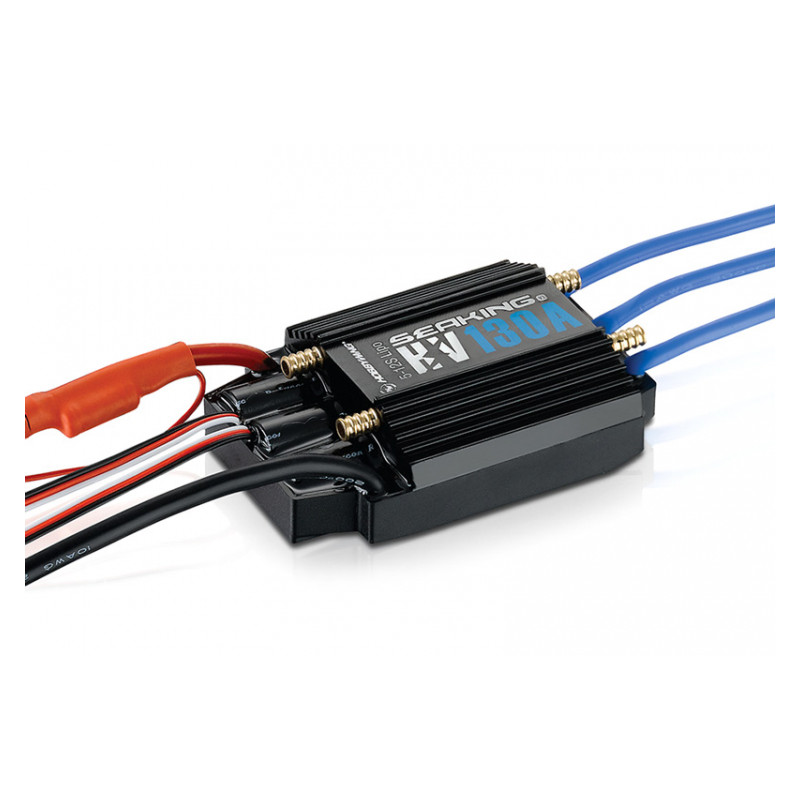

HOBBYWING SEAKING SPEED CONTROLLER PRO-130A V3 ( HW30301200 )

Hobbywing Seaking 130A HV V3 Marine ESC

Features:

• The water resistance of the "SEAKING V3" series is IP67, which means that the speed controllers can operate in water, and users can use them directly without taking any precautions. (Note: completely dry all connectors after use to avoid rusting)
• Heat conduction technology using copper rods (patented), a liquid cooling system, and a MOSFET transistor with extremely low internal resistance all greatly enhance the speed controllers' current overload resistance and reliability.
• Completely new software designed specifically for RC boats, featuring excellent starting and acceleration performance. In addition, it has exceptional adaptability to sudden load changes caused by hull popping out of the water.
• 2 operating modes: "Forward only" and "Forward and reverse" for different applications.
• Multiple protections, such as under-voltage protection, overheat protection and throttle loss protection, are specially designed for RC boats, reasonable and personalized.
• 8 timing adjustment options, compatible with most types of sensorless brushless motors.
• The program card in pocket format can help users easily set up the speed controller. (Note: the program card is optional)

Performance and reliability
Built with high-quality components and combined with state-of-the-art firmware, the Seaking 60A V3.1 features unparalleled performance and reliability. Multiple safety control options are in use, with the implementation of low-voltage cutoff protection, thermal protection and throttle loss protection.

Efficient cooling system
Hobbywing's patented copper heat-conducting rod shield on the Seaking 60A V3.1 power board can efficiently and effectively transfer heat to the integrated CNC-machined aluminum water-cooled heat sink housing, so your ESC stays as cool as possible.

Built-in BEC
A built-in BEC switching mode with a maximum output power of 6 A and a voltage of 6 V makes this ESC compatible with high-voltage servos.

Special design algorithm
The special algorithm implemented in the ESC makes acceleration more amazing and driving more stable.

Separate PRG/FAN port
A separate PRG/FAN port on the ESC allows you to connect the ESC to the programming box (using a three-color programming cable) and start programming the ESC.

Specifications:

• Type: Brushless, sensorless, waterproof, water-cooled controller
• Continuous/peak current: 130A/720A
• Input: 5-12S LiPo
• BEC output: 15-36 NiMH cells
• Input wires: 10AWG-150mm
• Output wires: 12AWG-100mm
• Input connectors: No
• Output connectors: No
• Firmware upgrade: not supported
• Size: 88x58x23mm
• Internal/external diameter of water cooling ports: 3.6/5.0mm
• Weight: 82g
• Applications: Boats up to 150cm in length

ESC Programming via:

• Transmitter: supported
• Program Box LED: supported
• Program Box LCD: not supported
• WiFi module: not supported
• OTA programmer: not supported
• Program port: separate program port

For safety reasons, always keep the "screw" away from human body or other objects.

*Follow the enclosed instruction manual.
