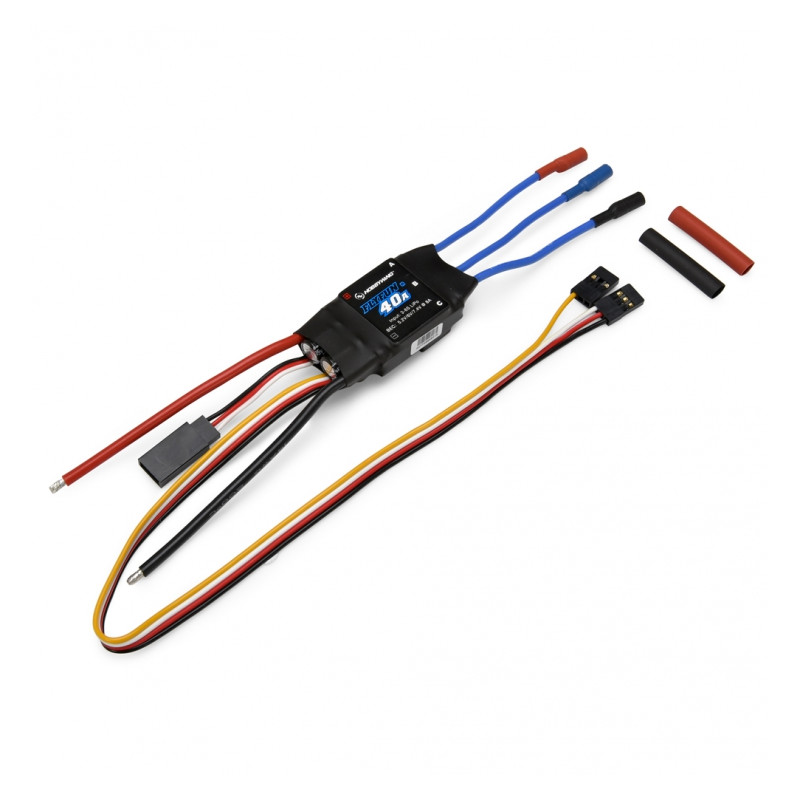

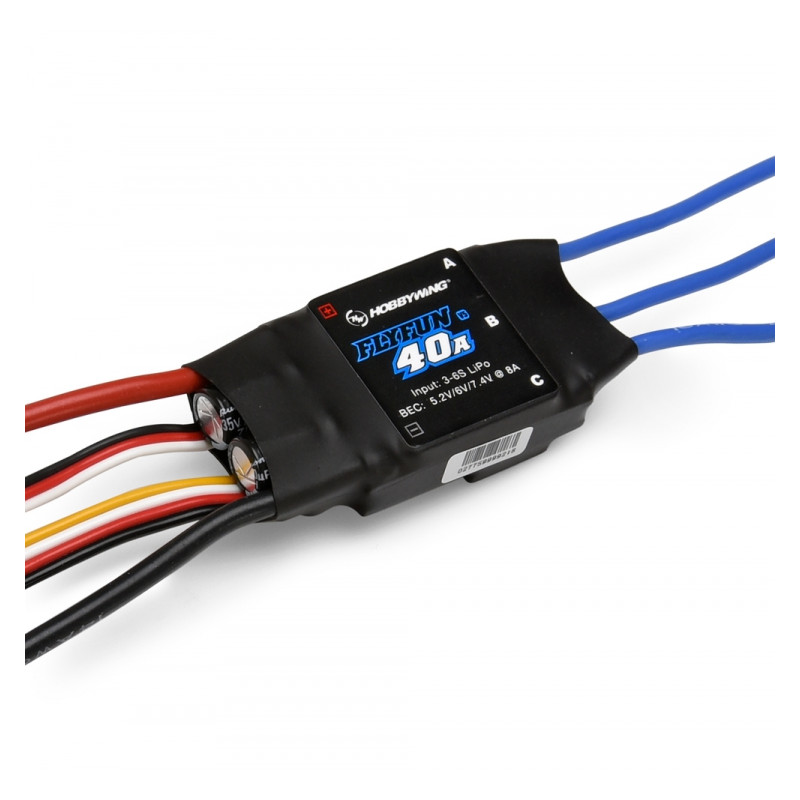

HOBBYWING FLYFUN 40A / 3-6S V5 SPEED CONTROLLER ( HW30214002 )

Hobbywing speed controller for model aircraft.

DEO / Active Freewheeling Technology
The DEO (Driving Efficiency Optimization) technology implemented in the ESC has many advantages:

● Faster and smoother throttle response, better stability and flexibility in flight.
● Longer flight time.
● Lower ESC temperature, more reliable operation.

Softstart and reverse brake
The new soft start modes apply to regular propeller aircraft and EDF aircraft of various sizes. When the reverse brake mode is activated during landing, the glide distance of the aircraft can be effectively shortened, simulating the landing of a real aircraft.

Normal brake mode, proportional brake mode and brake off mode are also available; the braking force can be adjusted in normal brake mode, while in proportional brake mode the braking force will be automatically assigned based on the position of the radio throttle stick.

High-powerBEC
The high-power BEC switching mode with 8 A/20 A continuous/peak current and adjustable voltages in the range of 5.2 V, 6.0 V, and 7.4 V allows users to have more electronics or higher-powered devices such as servos, flight controllers, and flight lights in their aircraft.

Multiple protection features
Multiple protection features include start-up, overcurrent, ESC thermal protection, capacitor thermal protection, overload, throttle signal loss (or failure protection), and abnormal input voltage, effectively extending the life of the ESC.

New design and great performance
New design provides unique appearance and good heat dissipation properties. Imported components, a high-performance 32-bit microprocessor and a PCB (printed circuit board) with extremely low impedance adopted by the ESC guarantee excellent current strength, excellent performance and high reliability. The ESC is available in high-voltage/common-voltage versions of various amperes.

Multiple Programmable Parameters
Multiple programmable parameters for configuring various fixed-wing aircraft can be adjusted using the Hobbywing LED transmitter or program box.

Specifications:

• DC current [A]: 40

• Max peak (instantaneous) current [A]: 60

• Power supply: LiXX 3 - 6 cell

• BEC voltage [V]: switchable 5.2V / 6V / 7.4V

• BEC current [A]: 8A

• Length [mm]: 47

• Width [mm]: 28

• Height [mm]: 14

• Weight [g]: 44


*Follow the instruction manual included with the product.
