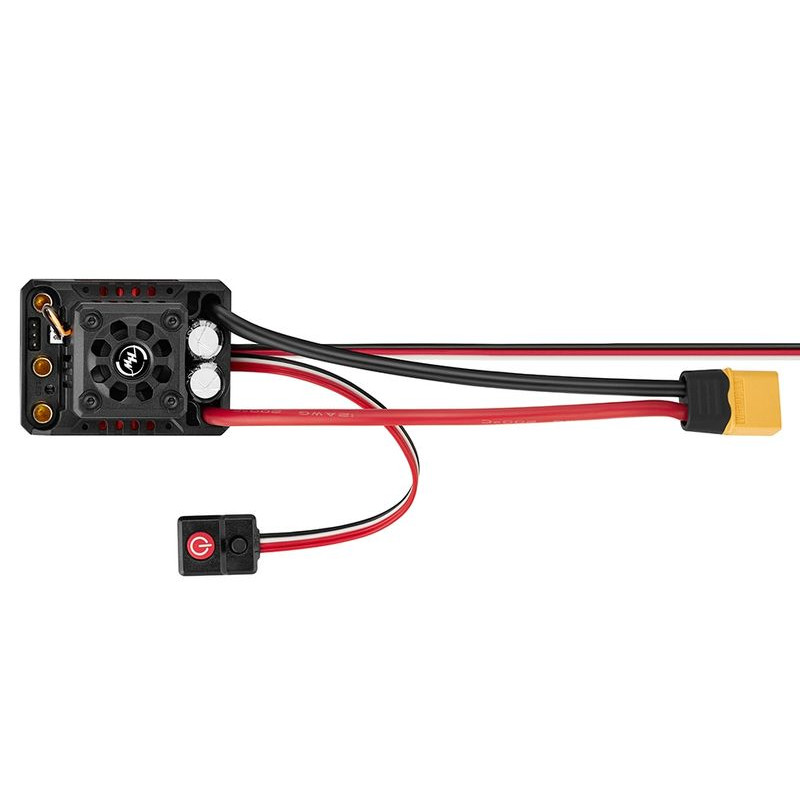

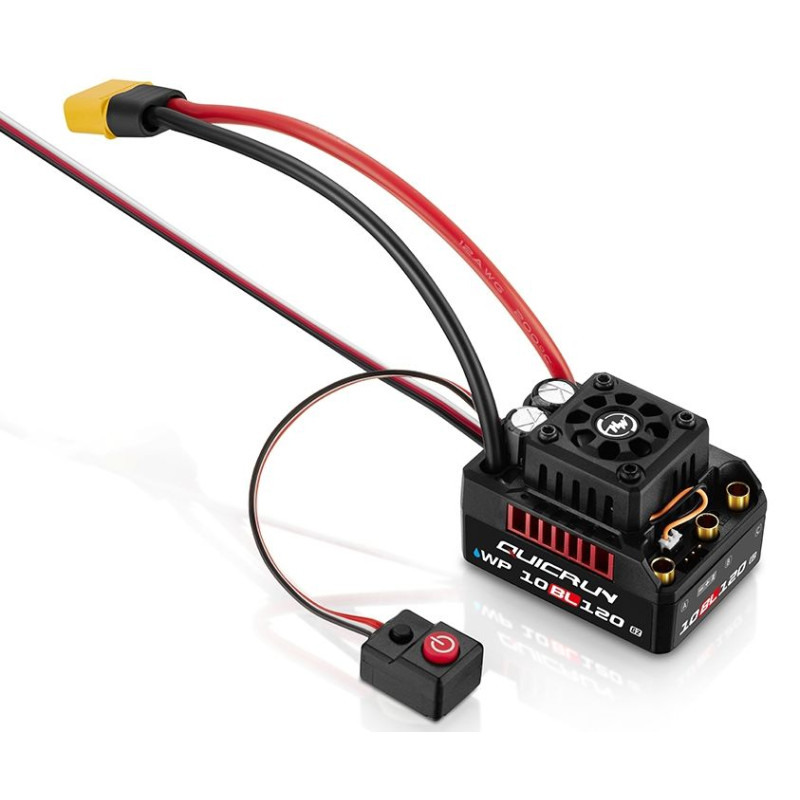

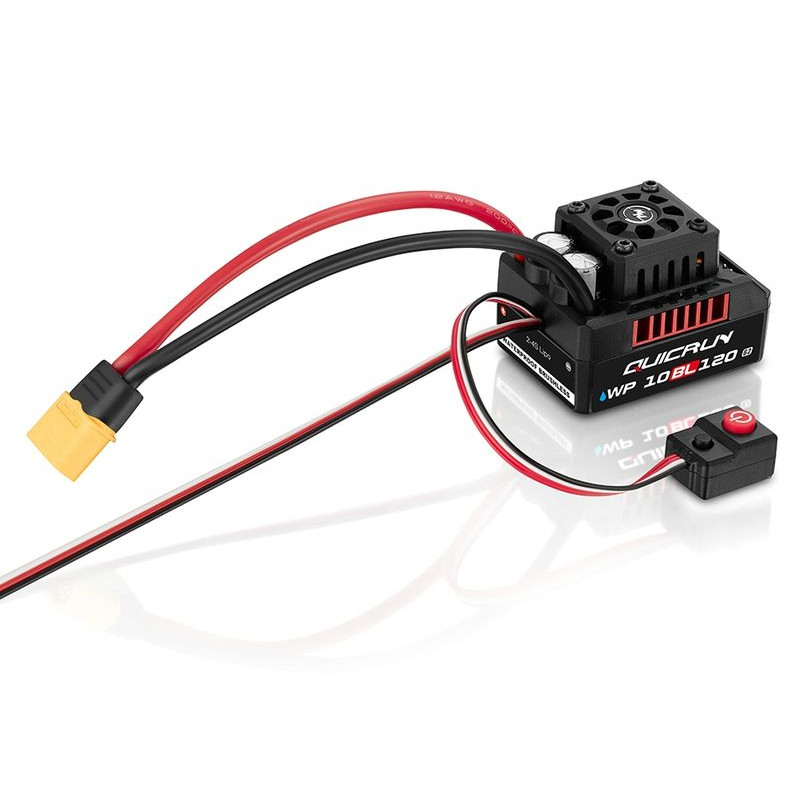

HOBBYWING REG. RPM QUICRUN WP 10BL120 (120A) G2 sensorless ( HW30107200 )

The QUICRUN WP 10BL120 G2 120A controller offers everything you need to realize the full potential of your 1:10 scale road or off-road remote-controlled car with sensorless AC motor - for road driving, drifting, Formula 1 or off-road buggies. It offers a wide range of 10 programmable parameters to perfectly adjust the engine, chassis and wheelbase.

Features:

• Specially developed for 1:10 road and off-road RC cars: 1:10 touring, buggy, drifting, Formula 1 with sensorless AC motors powered by 2-3S LiPo/5-9 NiMH cells
• For motors: 2S LiPo power supply: 1:10 stroke ≥4.5T, 1:10 carriage ≥5.5T / 3S LiPo power supply: 1:10 stroke ≥10.5T, 1:10 carriage ≥13.5T
• Compact size, low weight, patented high-performance cooling system
• Waterproof and dustproof design - IP67
• Ideal in combination with Hobbywing QUICRUN 3660SL G2 and 3552SL G2 motors
  10 programmable parameters
• Powerful switchable BEC stabilizer up to 5 A with selectable voltage of 6.0 or 7.4 V
• Advanced protection functions (voltage protection, thermal protection, fault protection, etc.)
• Programmable via LED programmer

Programmable parameters:

• General: drive mode, number of LiPo cells, voltage protection, BEC voltage
• Throttle control: Start, max reverse power, neutral throttle range
• Brake control: Resistive braking intensity, max braking effect
• Timing: time (0-26.25°)

Technical data:

• Intended use: Cars
• For brushless motors
• Continuous current [A]: 120
• Max peak current [A]: 160
• Li-Po [number of cells]: 2 - 3
• BEC voltage [V]: 6 - 7,4
• BEC current [A]: 5
• Length [mm]: 33
• Width [mm]: 28
• Height [mm]: 31,5
• Weight [g]: 105
• Rotation: Bidirectional
• Sensor input: NO
• Programmable: yes
• Waterproof: IP67

For more information, specifications and photos, visit the manufacturer's website

*Follow the instructions included with the product.
