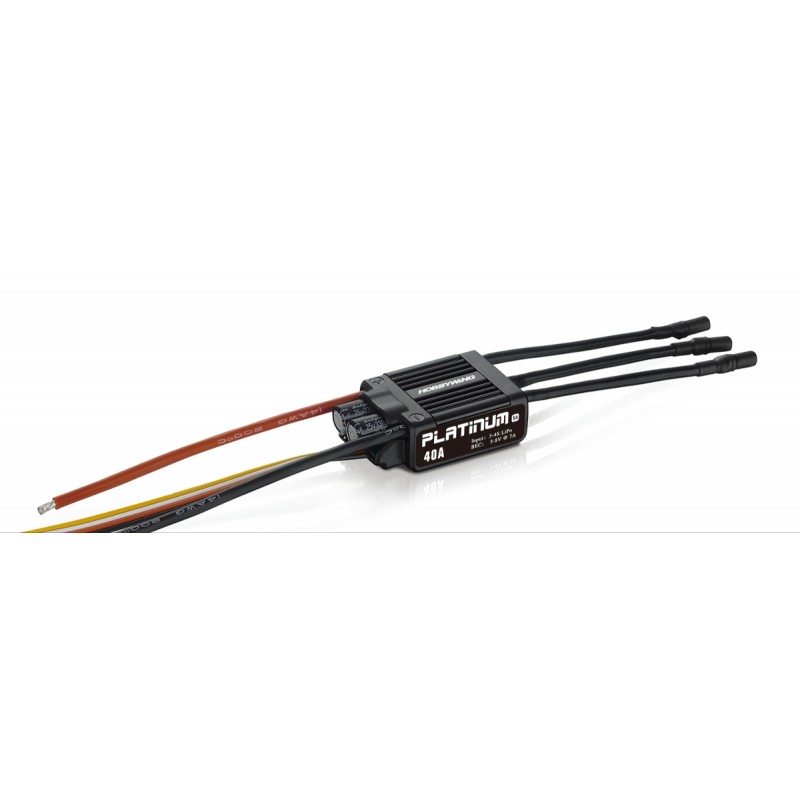

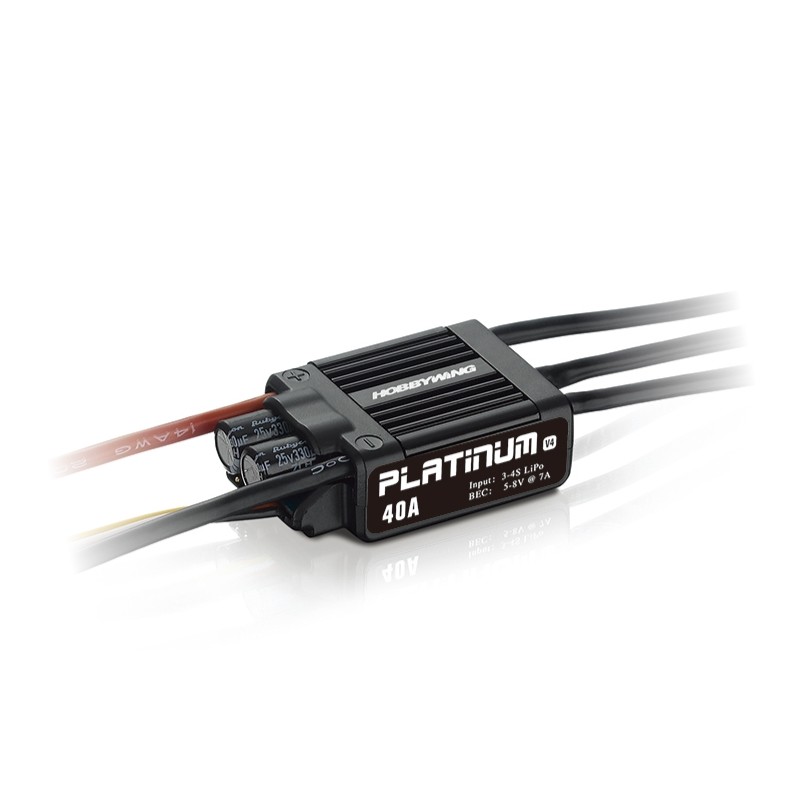

HOBBYWING REG. OBROTÓW PLATINUM 40A-

Top programmable microprocessor controller for AC motors without sensors ("brushless, sensorless") designed using the capabilities of the latest semiconductor technology with excellent performance characteristics and extensive programming and setting options. It is used to control the speed of AC electric motors in large models of airplanes or helicopters powered by NiCd / NiMH and Li-poly / Li-ion / Li-Fe batteries. For helicopters, it offers an advanced governor feature with many adjustable constant speed control parameters. It is equipped with a high-performance, switchable BEC power stabilizer with adjustable output voltage that provides power to the receiver and servos from the drive battery. A special Hobbywing LCD multi-functional programmer or a Wi-Fi WiFi Express module are available for easy setting of the controller, which are delivered separately.

Technical data:

• power supply: 3 - 4 LiPol
• power supply: 10 - 12 NiMh
• direct current: 40A
• instantaneous peak current: 70A
• BEC switchable: 5-8V / 7A
• dimensions: 48 x 30 x 15 mm
• weight: 47 g

More information and technical data can be found on the manufacturer's website or: https://www.pelikandaniel.com/?sec=product&id=99003

* follow the attached instructions
