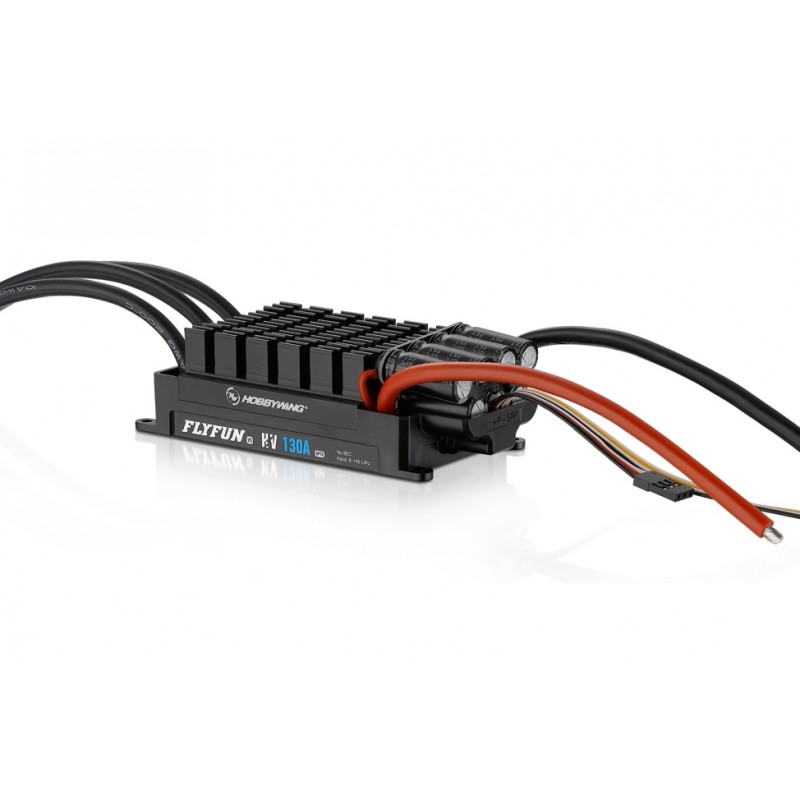

HOBBYWING REG. OBROTÓW FLYFUN 130A-H

New generation of programmable microprocessor controllers for ac motor without sensors ("brushless, sensorless") for large models of recreational and sports aircraft powered by Li-poly / Li-ion / Li-Fe batteries. Compared to the previous generations of FLYFUN controllers, the programming options have been extended with a number of functions that have proven themselves in the top Platinum series controllers. The design of the controller takes into account the high long-term load capacity and durability required for large models. The power supply part of the controller is galvanically separated from the control electronics to ensure high immunity to interference at high operating currents and high supply voltage. The controller does not have a power stabilizer for the receiver and servos. For easy adjustment of the controller, a special Hobbywing LED programming card is provided, which is supplied separately (available in our store).

DESCRIPTION AND FUNCTIONS OF THE CONTROLLER:

• The controller is equipped with a high-performance 32-bit ARM M4 microprocessor with a clock frequency of up to 72 MHz; it is compatible with most AC motors.
• It is suitable for most AC airplanes powered by 6-14S LiPo / Li-ion / LiFe batteries.
• A special power stabilizer for the microprocessor provides high noise immunity and reduces the risk of loss of control.
• The DEO (Driving Efficiency Optimization) technology significantly improves the gas response and the efficiency of the power stage control, lowers the temperature of the controller.
• Power section galvanically separated by an optoelectronic element.
• Normal / Soft / Very Soft take-off modes are suitable for regular propeller planes as well as models with turbines.
• Easy to program and set using the Hobbywing LED transmitter or programming card.
• A special programming cable for connecting the controller to the LED programming card allows the user to program the controller at any time and place (details in the Hobbywing LED programming card manual).
• A number of protection functions: start-up protection, controller thermal protection, capacitor thermal protection, overload protection, overcurrent protection, protection against incorrect supply voltage and protection against loss of the control signal effectively extends the life of the controller.
• Gas span calibration for a perfect match to the control signal from the RC kit.

PROGRAMMABLE FUNCTIONS:

• Brake type: disengaged brake, normal brake (with 7-stage brake intensity adjustment), proportional brake (throttle control: 0-20% throttle deflection corresponds to 100-0% brake, 20-100% rudder deflection corresponds to 0-100% throttle ).
• Braking force: The braking force can be adjusted from level 1 to level 7 in "normal braking" mode
• LiPo cell count: We recommend manual setting of 100% reliable voltage protection function. The controller automatically calculates the number of cells of the connected battery according to the principle of "3.7 V per cell" if auto-sensing is selected.
• Voltage protection: The threshold level of voltage protection is adjustable from 2.8-3.8V / cell; the protection can also be completely disabled.
• Starting: Normal start (immediate start), Soft start (slow start for engines with large propellers, gearbox or smaller blowers), Extra soft start (very slow start for engines with large propellers, gearbox or blowers from 90 mm).
• Time: adjustable from 0-30 °.
• Direction of rotation: clockwise / counterclockwise.
• DEO freewheel: This function can be turned on or off; can result in better linearity or a smoother gas response.

Note: When switching on the regulator for the first time, first calibrate the gas range according to the instructions. Only then can the driver be used and other parameters set using the transmitter or the LED programming card.

Technical data:

• Constant current[A]: 130
• Peak current[A]momentary: 160
• Number of LiXX cells: 6 - 14
• Length[mm]: 110
• Width[mm]: 50.3
• Height[mm]: 33.2
• Libra[g]: 221.5
• Regulation: unidirectional
• Brake Yes
• Programmable: Yes

* follow the attached instructions
