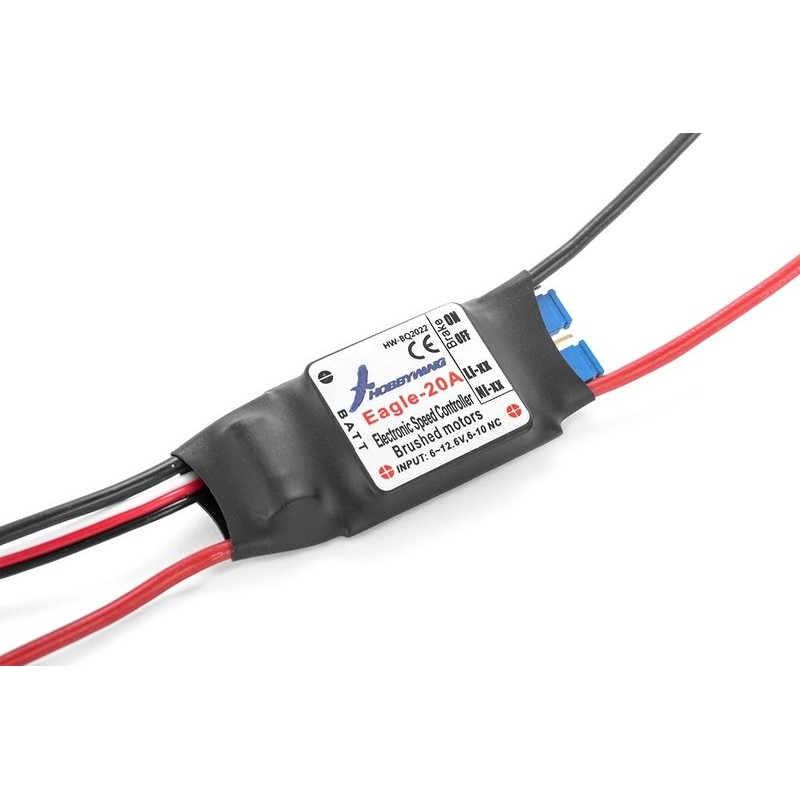

HW80050000 EAGLE 20A

Microprocessor controller for DC motors with excellent functional properties while maintaining a very simple operation. It is used to control the speed of DC electric motors in recreational aircraft models or for auxiliary applications in ship models or ground technology when powered by NiCd / NiMH and Li-Poli / Li-ion batteries. It is equipped with a BEC linear power stabilizer that supplies power to the receiver and servos from the drive battery. The type of drive battery is selected using a jumper, the propeller brake is turned on and off in the same way.

DESCRIPTION AND FUNCTIONS OF THE CONTROLLER

• Suitable for 280, 300, 380, 400, 480 series DC motors powered by 2-3S LiPo / Li-ion batteries or 4-10 NiCd / NiMH cells
• For operation with NiCd, NiMH, Li-poly, Li-ion batteries

• Linear power stabilizer BEC 5 V with a load capacity of up to 1 A

• Overload protection (when the temperature reaches 110 ° C, the controller limits the power)

• Low voltage protection (the controller limits the power when the drive battery voltage drops below 3.0 V / cell for LiPo batteries)

• Automatic gas intake in case of loss of the control signal

• Continuous linear gas regulation

• Easy to adjust with shorting jumpers

• Audible signaling of error states: incorrect supply voltage, loss of gas signal, no disengagement of the throttle stick with the engine off


ADJUSTABLE FUNCTIONS

• Propeller brake (off - on)
• Optional battery type (Li-poly or NiCd / NiMH).


PROTECTIVE FUNCTIONS OF THE REGULATOR

• Start-up protection: If the engine does not start within 2 seconds after adding the throttle, the controller shuts down the engine
• Thermal overload protection: When the controller temperature reaches 110 ° C, the controller will start to limit the output power to lower the temperature

• Protection against loss of the control signal: The controller limits the power in the case of no signal for 1 s; no signal after more than 2 seconds will cause complete engine shutdown

Technical data:

• Motor type: brush

• Constant current [A]: twenty

• Max. peak current - instantaneous [A]: 25

• Number of cells NiXX: 4 - 10

• Number of cells LiXX: 2 - 3

• BEC voltage [V]: 5

• BEC current [A]: 1

• Length [mm]: 45

• Width [mm]: 21

• Height [mm]: 8

• Weight [g]: 17

• Regulation: unidirectional

• Brake: Yes

• Programmable: Yes
