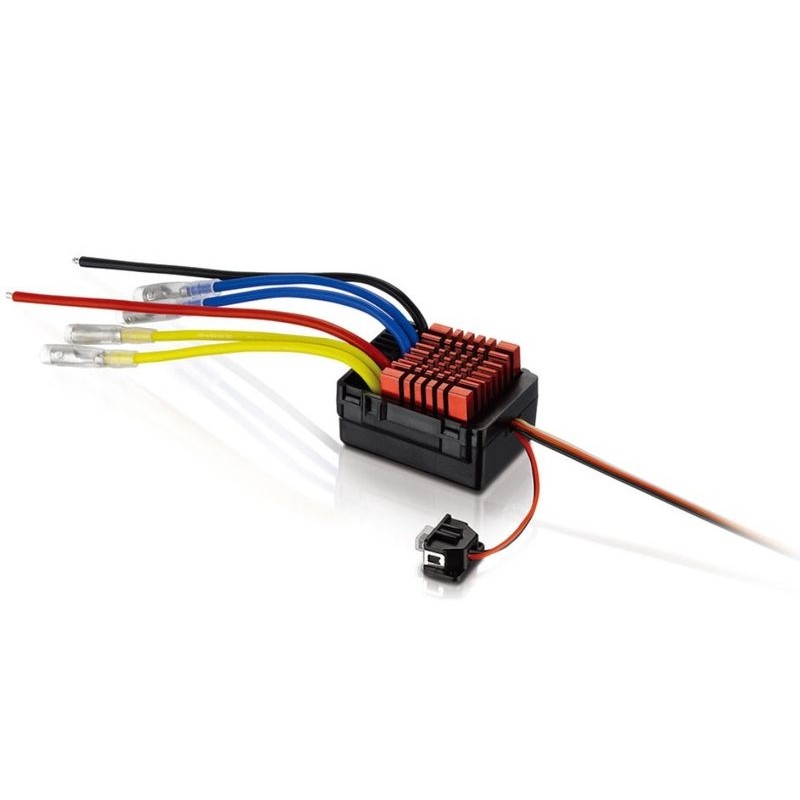

HW30120301

This regulator is specially designed for beginners and intermediate users. This ensures, above all, the excellent quality of HOBBYWING products, and also facilitates their use.

Suitable for all weather conditions.
The ESC's excellent waterproof and dustproof design allows it to be used in any weather, whether the track is covered with dust, gravel, snow or mud.

Integrated BEC circuit.
The built-in switchable BEC circuit with an output current of up to 4A and an output voltage of 6V ensures that it is compatible with most servos.

High reliability and durability.
Reliable hardware combined with advanced software allows ESC to provide extremely high performance, but can also prevent overload. This significantly reduces the possibility of damage due to high loads and thus increases reliability and durability.

Lots of protection features.
Voltage protection (motor disconnection with low drive battery voltage), overheating protection, signal loss shutdown.

Easy to use.
Automatic gas span calibration and parameter setting by LED programming box is easy to use by the user, especially for beginners.

Double output.
This controller can operate two DC motors simultaneously. This is an overall effective solution for low speed dual engine models such as the Crawlers.

Wide range of applications.
A regulator designed to work in all conditions, for 1/8, 1/10 scale models of touring cars, buggies, short-course trucks, monster trucks, rock crawlers, tanks and ships.

Technical data:

• Motor type: brush

• Constant current [A]: 80

• Max. peak current [A]: 400

• Number of cells NiMH: 5 - 12

• Number of cells Li-Pol: 2 - 4

• BEC voltage [V]: 6

• BEC current [A]: 4

• Length [mm]: 46

• Width [mm]: 35

• Height [mm]: 26.5

• Weight [g]: 75

• Adjustment: two-way

• Brake: Yes

• P.programmable: Yes
