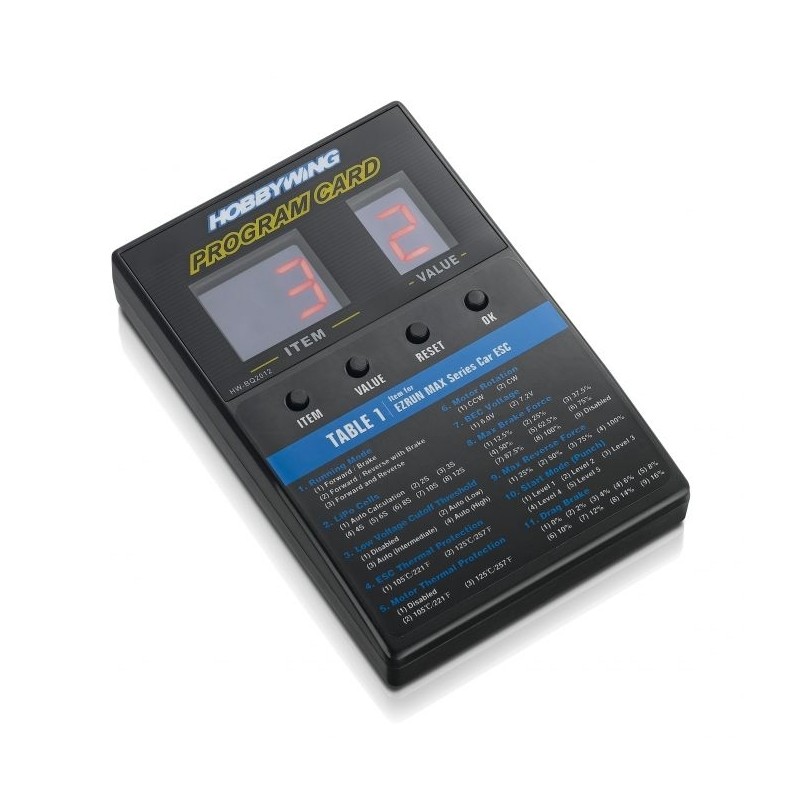

HOBBYWING GENERAL LED PROGRAM CARD

Programming device for the Platinum V1 / V2, Flyfun V5 series speed controllers, for a large number of XeRun, EzRun and QuicRun series toy controllers (alternating ESC). Also for Seaking boat regulators. Specific supported versions in the description.
The LED programmer for selected Hobbywing series regulators, for cars, airplanes and ships is used for easy and quick programming of the regulators - at home "on the table" and at the airport. The controller is connected via a servo cable, the socket is located on the top of the housing. The device is powered from the BEC stabilizer of the Hobbywing controller power supply or from a common package of 4-5 cells. NiCd / NiMH or 2S LiPo / LiFe receiver battery connected to the device (in the case of OPTO controller). Programming takes place with connected motor and drive battery (even with OPTO controllers).

Hobbywing speed controllers can be programmed in a model with an installed propeller - however, for safety reasons, we still recommend that you remove the propeller during programming - to prevent a possible accident in the event of operator negligence or error. In the same way, program the regulators in cars and boats, securely place them on the stand (so that the wheels or propeller are in the "air").

There are four programming buttons on the front panel of the programmer. They are used to select the program functions ("POSITION") to be set and set their value (VALUE. The "OK" button confirms the change and sends it to the controller, the "RESET" button is used to reset all settings and restore all values to the factory settings. program function is displayed on the left side of the two-digit LED display ("POSITION"), the function value is displayed on the single-digit LED display on the right ("VALUE").

The method of connecting the controller to the LED programmer depends on the type of controller - it differs depending on whether it is a controller with a BEC or OPTO stabilizer, or whether the controller has a special programming cable, socket, etc. When connecting, follow the instructions included with the programmer and regulator.

The list of functions and values to be set is given on the label on the card ("Table 1" - car controllers, Table 2 - aircraft controllers, Table 3 - ship controllers); a detailed description of the functions can be found in the manuals delivered with Hobbywing controllers.

Compatible Hobbywing controllers

Platinum V1 / V2, FLYFUN V5 for model airplanes and helicopters
XERUN (Most), EZRUN and QUICKRUN for car models
SEAKING for boat models (not Seaking Pro).

Technical data:

• Power [V]: 4.8 - 8.4
• Length [mm]: 88
• Width [mm]: 58
• Height [mm]: 14
• Weight [g] 40

Instructions for download: HERE
