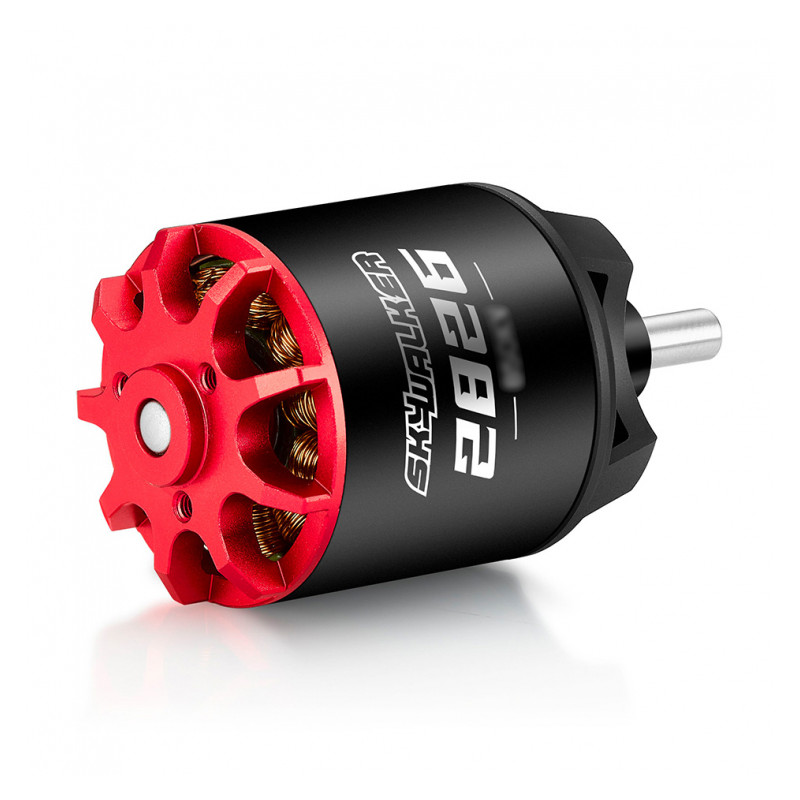

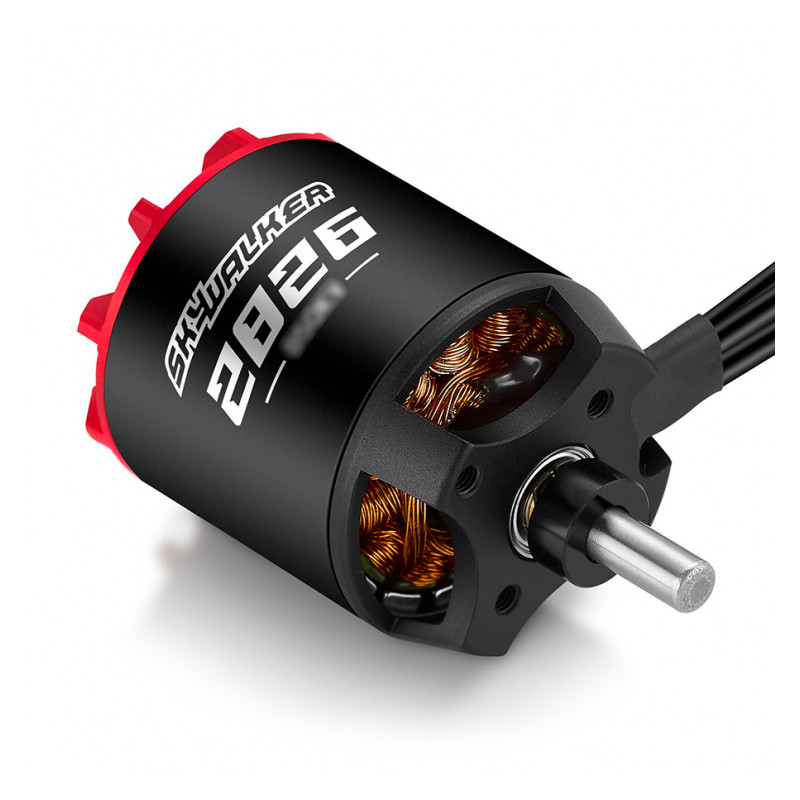

Hobbywing HW30415250 - SkyWalker 2826SL 540Kv Outrunner
Specifications:
- Recommended battery: 6S LiPo
- KV value: 540KV
- No-load current: 1.58 A/22.2 V
- Winding resistance: 43.9 mΩ
- Number of slotted poles: 12N14P
- Maximum continuous current: 49.7A/1m
- Maximum continuous power: 1106W/1m

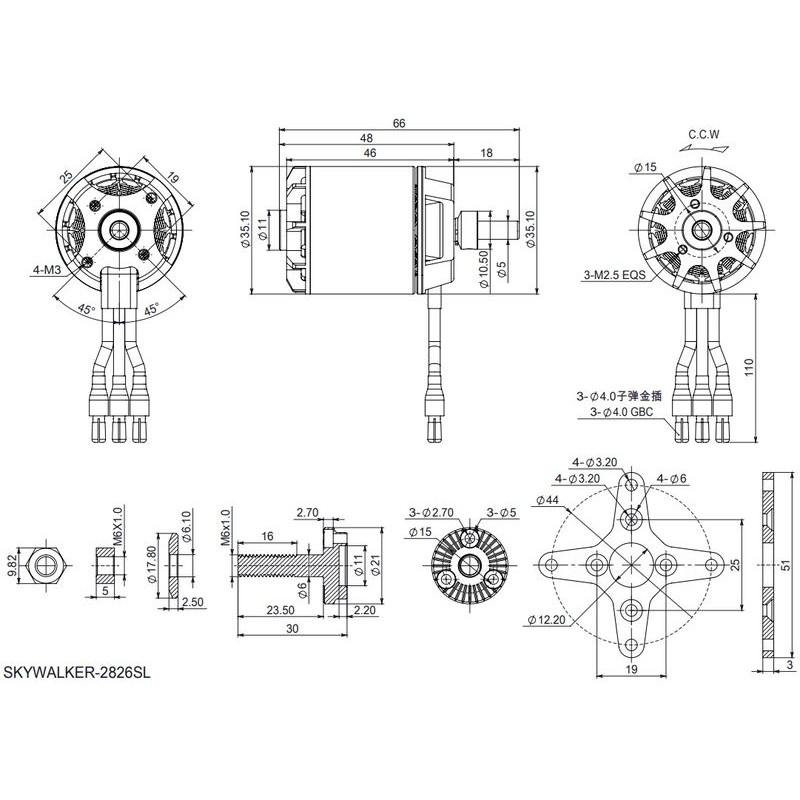

- Motor size: D35.1xL48mm
- Motor weight: 175,5 g
- Shaft diameter: 5mm
- Bearing model: 685ZZ (OD11xD5xT5mm)
- Phase wire: 16AWG
- Cable length: 110mm
- Connectors: 4mm Bullet
- Recommended ESC: Skywalker 80A
- Recommended propellers: 6S: 12x6E, 13x6.5E, 14X6
- Clip mounting hole threads: D15mm-3xM2.5
- Base threads: D19mm-2xM3 / D25mm-2xM3
*Follow the instruction manual included with the product.
