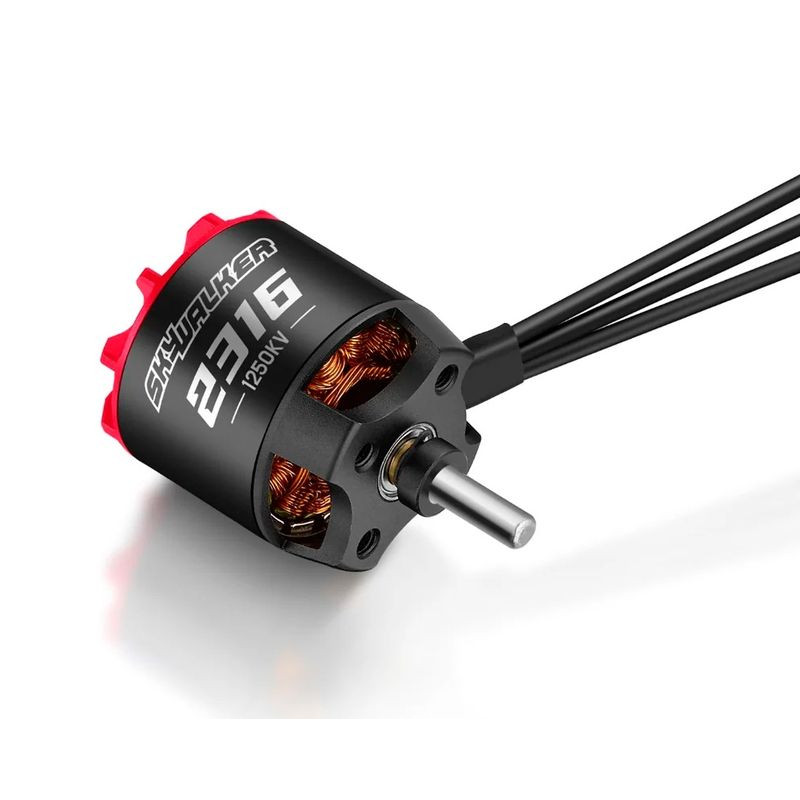

HOBBYWING SKYWALKER MOTOR 2316SL-1250KV (30415051)

Hobbywing's SKYWALKER motors are high-performance, commutatorless ("brushless") fourteen-pole rotary ("outrunner") electric motors with excellent electrical characteristics, sophisticated design and superior manufacturing quality. Shafts made of hardened steel and high-quality bearings ensure a long service life, and the high-quality materials used for the stator and rotor also guarantee excellent performance at high efficiency. These are low-speed, high-torque motors that handle large-diameter propellers and operate without the need for gears.

Motor designation system: xxYY SL zzzz

• xx - diameter of the stator in mm
• YY - length of the stator in mm
• SL - sensorless motor (SensorLess)
• zzzz - number of revolutions per volt (rpm/V), "KV"

Technical data:

• Power supply (number of LiXX cells): 3 - 4
• RPM per volt [rpm/V]: 1250
• Max power (54 s) [W]: 615
• Internal resistance [mOhm]: 38,5
• Open circuit current (at 14.8 V) [A]: 1,7
• Max peak current (54 s) [A]: 41
• Diameter [mm]: 28,8
• Length [mm]: 32
• Overall length [mm]: 50
• Shaft diameter [mm]: 4
• Weight [g]: 79
• Number of fields: 14
• Timing [°]: 20 - 25
• Recommended speed regulator [A]: 40 - 50
• Recommended propeller (3S): 9x4.5", 10x5", 10x6"
• Recommended propeller (4S): 7x6", 8x6"
• For models weighing up to: 1000 g
• cables have gold-plated 3.5mm connectors

*Follow the instruction manual included with the product.
