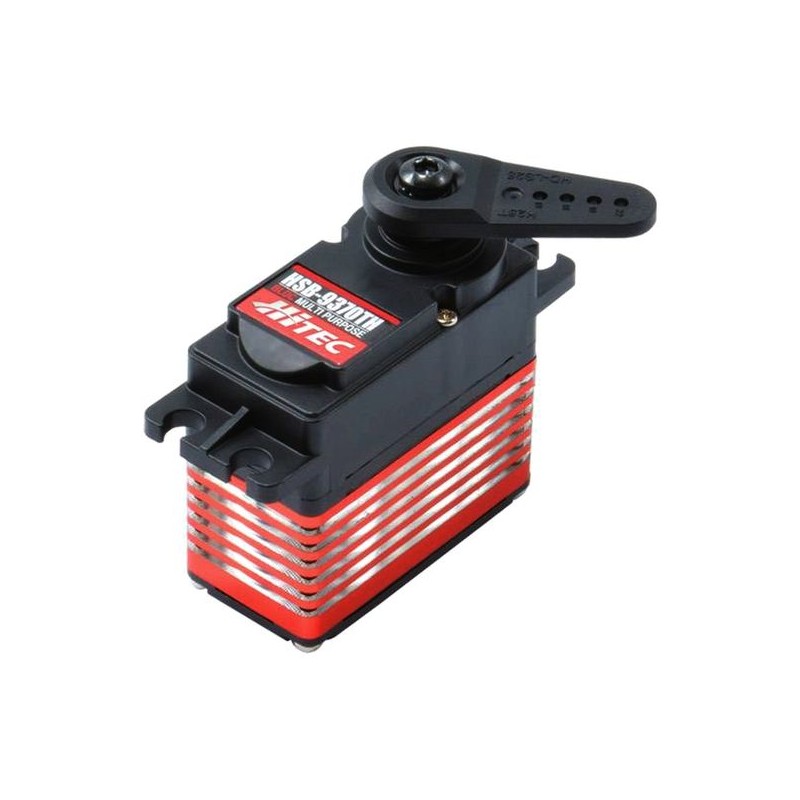

HITEC SERVO HSB-9370 TH DIGITAL

HITEC HS-9370TH SERVO

High-class programmable servo for demanding customers. The brushless motor, precise titanium gear, high torque, high speed of operation while maintaining standard dimensions make it one of the premium servos.

Hitec DPC-11 or HFP-30 programmers):

• swing range (End Point)

• neutral position
• swing direction
• speed of operation
• Fail Safe

Technical data:

• supply voltage: 5-9V

• recommended supply voltage: 6-7,4V
• speed sec / 60 º : 0.12 (6V) 0.10 (7.4V)
• max. torque: 25kgcm
• dimensions (mm): 40.0 x 20.0 x 38.0
• weight: 68g
• output shaft: H25T

Attention! The servo has the function of "recuperative braking", which means that when the servo stops moving, it does not consume any current, but can send it back to the receiver's battery. If the servo is powered directly from the receiver battery (via the receiver without a power stabilizer or electronic backup system) - in this case it can be connected as a normal powerful digital servo, the reverse current during braking will charge the receiver battery. If the servo is powered by a non-reverse current tolerant electronic powerbox, the PAD Backflow Absorber system MUST be used to eliminate the reverse current flow. For details on using the PAD absorber, see the servo instruction manual
