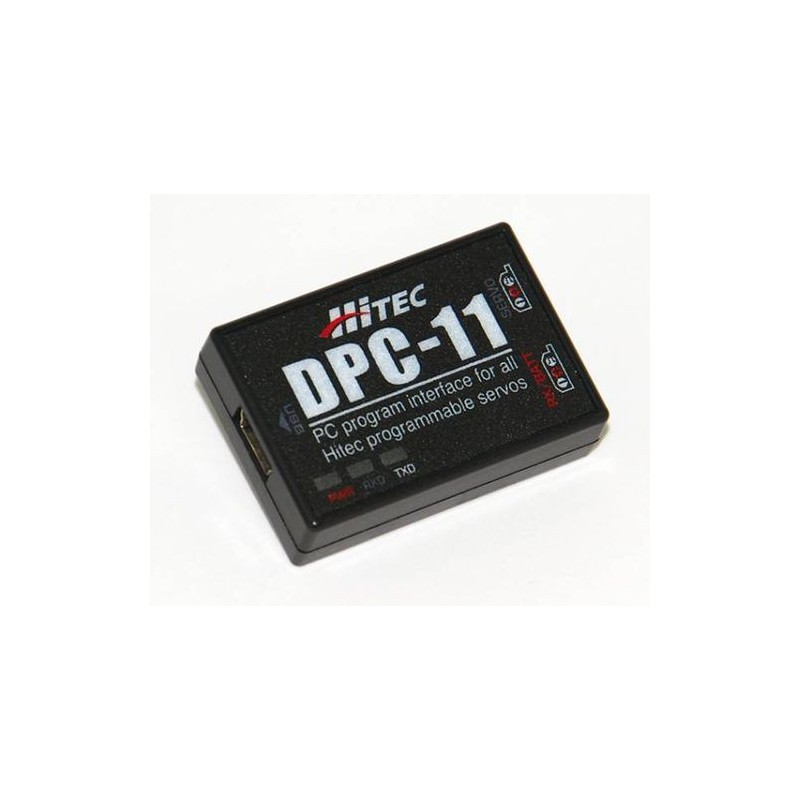

DPC-11 is a universal programmer and tester for all Hitec programmable servos. This means that with the DPC-11 programmer you can program all DXXX series digital servos, HSB-9xxx servos and HS-5xxx and HS-7xxx series digital servos. By using the monitor as a user interface, it is a convenient and easy-to-use device for testing and programming.
During programming / testing, the servo is powered by the receiver's 4.8 to 7.4V battery (4-6cele NiMH, 2S LiPo / LiFe / Li-ion). All parameters are first set in a window on the computer screen, and then loaded into the servo. Then using the PC servotester function, you can check the accuracy of the servo settings.
To use the programmer, you will need:
- A PC running Windows XP, Windows 7, 8 or 10. NOTE: The USB driver for the DPC-11 operating software has two different versions, depending on whether you are using 32-bit (Windows XP, 7 and 8) or 64-bit (Windows 7 8 and 10).
- A standard 5-pin mini-USB / USB 2.0 cable (such as a cable for an external memory card reader, some digital cameras or cell phones)
- Receiver battery of 4.8 - (4-6cele NiMH, 2S LiPo / LiFe / Li-Ion) 7.4 volts
- USB 2.0 (traditional) A / Mini B (5-pin) cable
In addition, the servotester function allows you to examine the parameters of the programmed Hitec servo:
- "manual" settings
- Checking Center, End Point and Fail Safe settings
- Checking fail-safe positions
The DPC-11 allows you to program the following Hitec digital servo functions:
- Servo Test (Manual / Auto)
- FAIL SAFE mode setting
- Direction of rotation
- Servo speed
- Center, End Point and Fail Safe point setting
- Dead Band width
- Soft Start
- "Save and Open" parameters from a file
- Restore factory/default settings from file
Dimensions: 25x36x10.4mm
Detailed instructions can be downloaded here:
