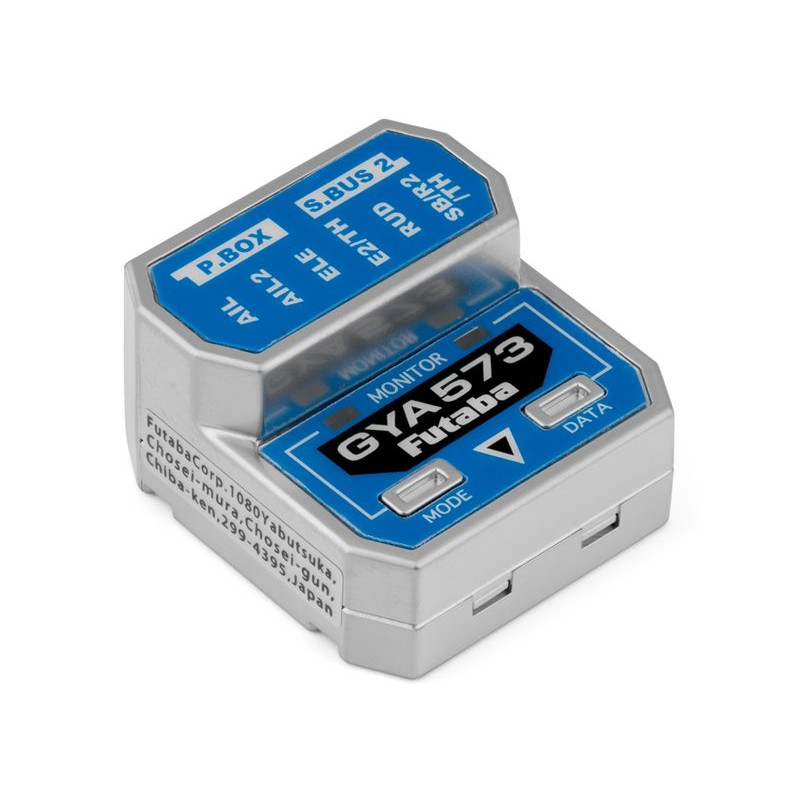

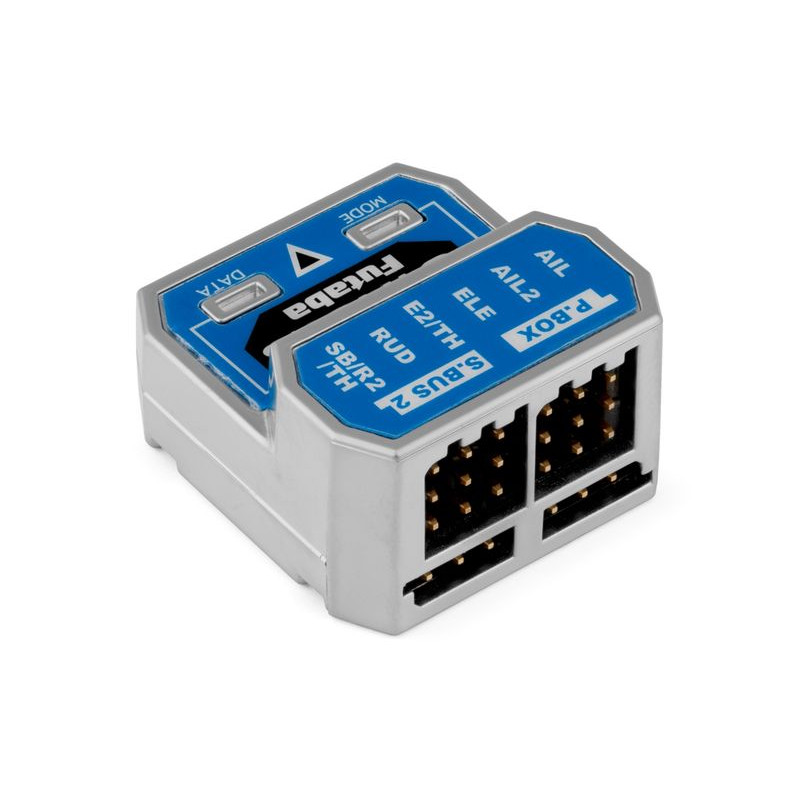

FUTABA Gyroscope GYA573 / 3-axis

Futaba FP05102757-3 - GYA573 3-axis gyroscope for EP/GP aircraft
Here is the new GYA573 aircraft gyroscope. Compact and lightweight, the GYA573 is a 3-axis electrically controlled gyroscope with a 6-axis sensor, designed to control ailerons (roll axis), elevator controls (pitch axis) and directional controls (yaw axis). In addition, the GYA573 has an emergency mode to avoid danger. Features include simple setup and S.BUS2 connectivity.

GYA573 is a replacement for the GYA553 gyro.

Features:

• Remote gain function
• 4 flight modes (Auto recovery/Normal/AVCS/Gyro OFF)
• Supports 4 ailerons, 2 elevators
• Supports FASSTest26CH
• Supports 4D flight
• Supports roll flat
• Air brake mixing
• Camber mixing and 2 rudders types
• Supports a variety of wing types, including Flying Wing
• Supports Gasoline and EP planes

These functions must be set from a transmitter that supports the GYA573 settings or from the GPB-1:

• Supports FASSTest26CH
• Supports 4D flight
• Supports roll flat
• Air brake mixing
• Camber mixing

*Gyro control is not possible if the aircraft stalls
*Do not set the fail-safe function of the transmitter to the channel used by the gyro
*GYA573 can only be used in combination with Futaba products
*GYA573 requires a transmitter system of 10 CH or more
*GYA573 requires an S.BUS2 receiver

GYA573 Updates
The GYA573 can be updated from a PC by connecting the separately sold CIU-3/2. Please check the our tab for downloads on the specific minicars.se product page for the latest firmware and update method.

Specs:
(Integrated sensor type rate gyro)

• Gyro sensor: MEMS vibrating structure gyro
• Operating voltage: DC 3.8 V to 8.4 V
• Current drain: 27 mA (excluding a servo)
• Operating temperature range: -10ºC to +45ºC
• Dimensions: 28 x 26 x 16 mm
• Weight: 8.5 g

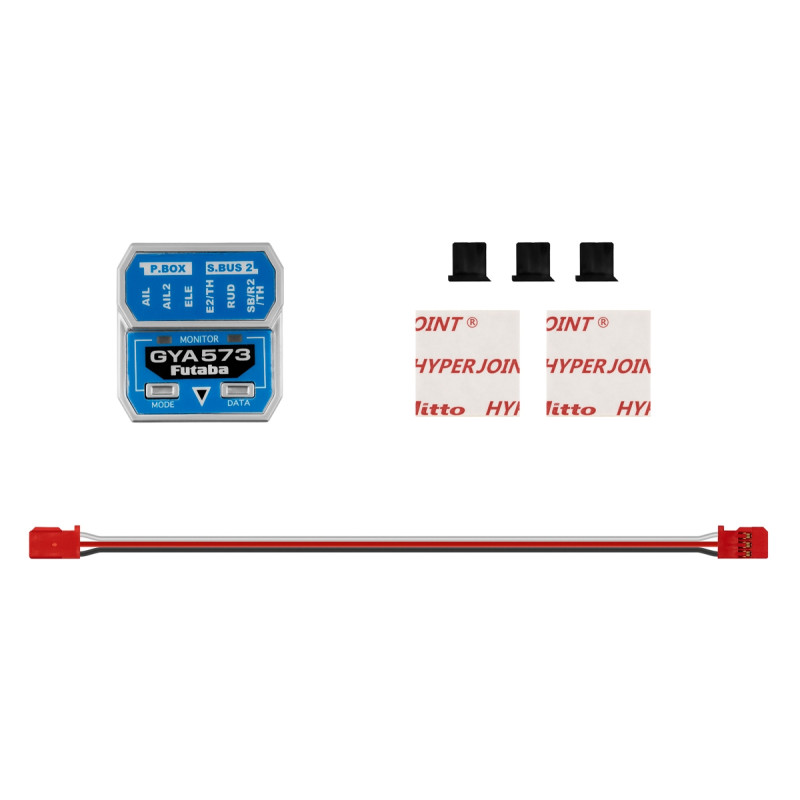

Set contents:

• GYA573
• 2x Double-sided tape
• Receiver connection cable

*Follow the instruction manual included with the product.
