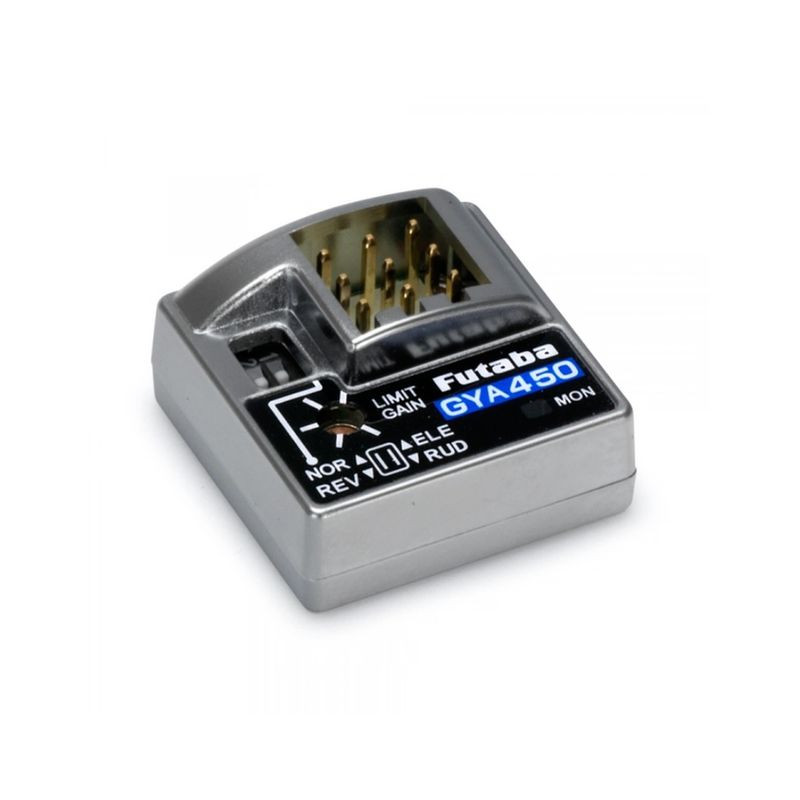

FUTABA two-axis gyroscope GYA450

Futaba GYA450 1-axis gyroscope for directional or altitude rudder
The GYA450 aerial gyroscope is a compact and lightweight device designed to control altitude rudder (tilt axis) or directional rudder (yaw axis). Features include simple setup and S.BUS/S.BUS2 connectivity.

Dedicated aircraft settings

• Stabilizes flight

Compatible with altitude or rudder control

• Controls 2 altitude or 2 directional rudders via S.BUS/S.BUS2 connectivity
• GYA450 can be used with altitude or directional rudder controls

Compatible with Alevon or V-tail wing mixer

• Two axis control is possible with two GYA450 or GYA451 when using combined connection (S.BUS only)

Remote gain function

• The remote gain function allows you to adjust the sensitivity of the gyro from the transmitter, and the mode-switching function allows you to switch between AVCS/NORMAL modes. Gain can also be adjusted using the trimmer on the GYA450 gyroscope

Easy mounting, compact size and light weight

• High-density mounting technology makes the GYA450 compact and lightweight

Easy setup

• Basic settings allow you to get ready for flight in no time

Supports S.BUS and S.BUS2 connection

• Only one wired connection to the receiver allows you to operate the GYA450

Excellent vibration resistance

• GYA450 can be used on models equipped with large internal combustion engines

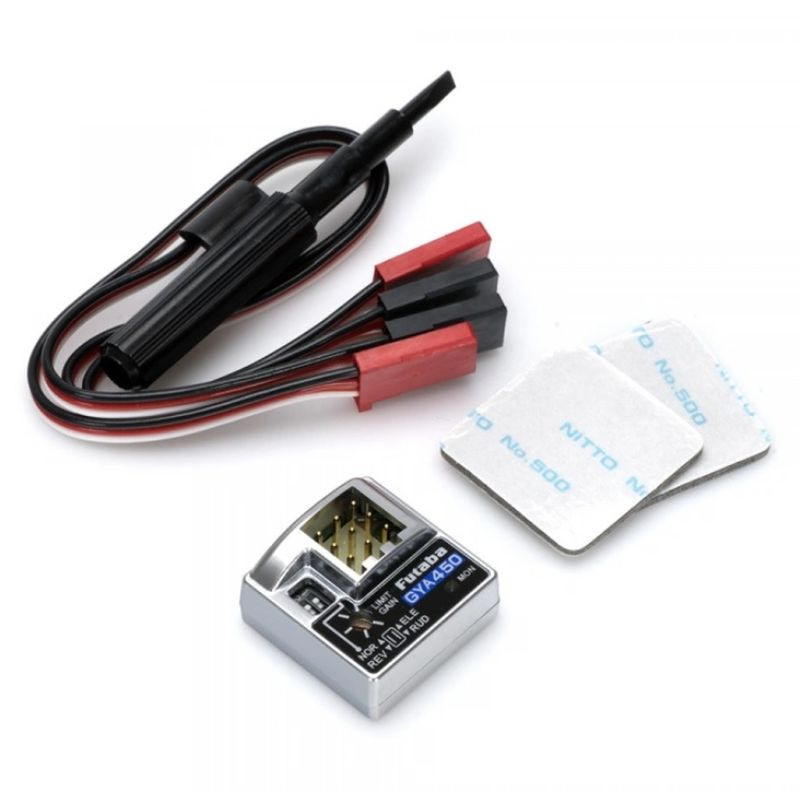

Included:

• GYA450 gyroscope
• Mini screwdriver
• 2x Double-sided tape for mounting the sensor
• Extension cords

Features:

• S.BUS/S.BUS2
• Operating voltage: 4-8,4 V
• Current consumption: 30mA
• Size: 20.5 x 20.5 x 7.8/11.1mm
• Weight: 3.7g
• Operating temperature: -10 - +45°C
• Gyroscopic sensor: MEMS vibrating gyroscope

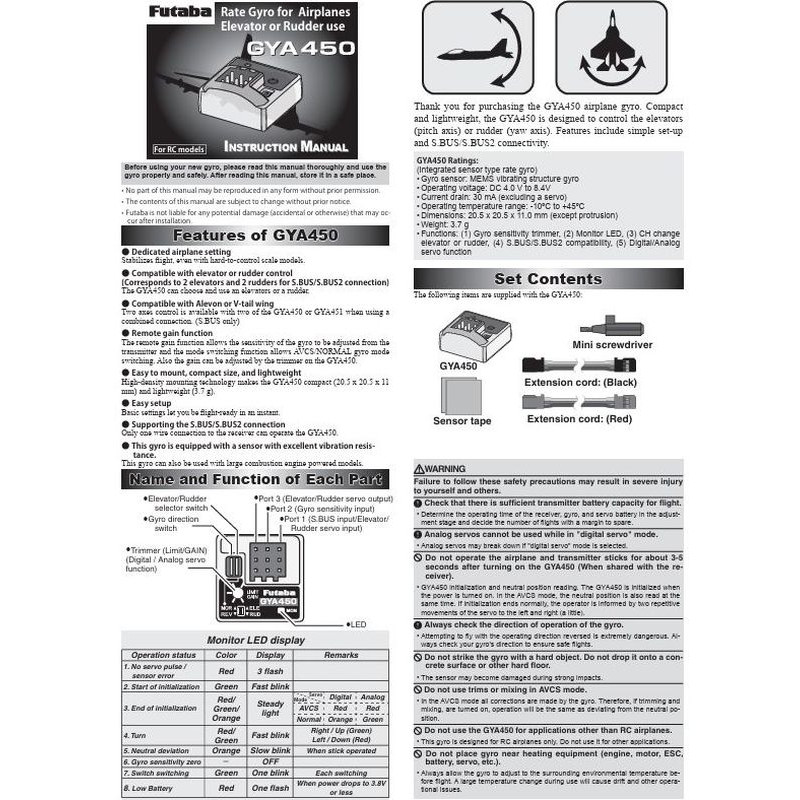

*Follow the instruction manual included with the product.
