FLIGHT STABILIZER BGL-3G-A (gyroscope)

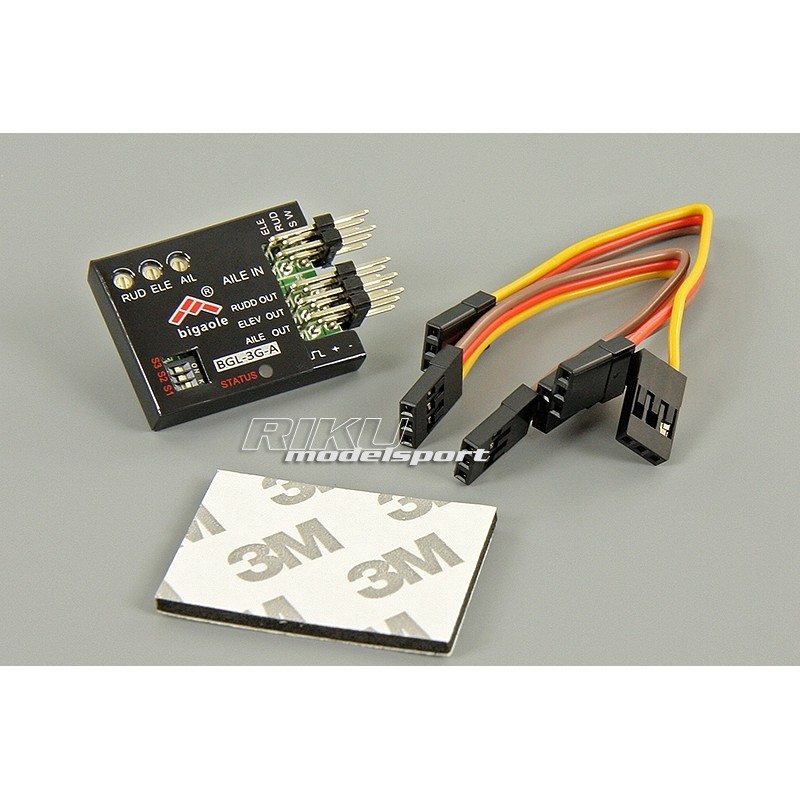

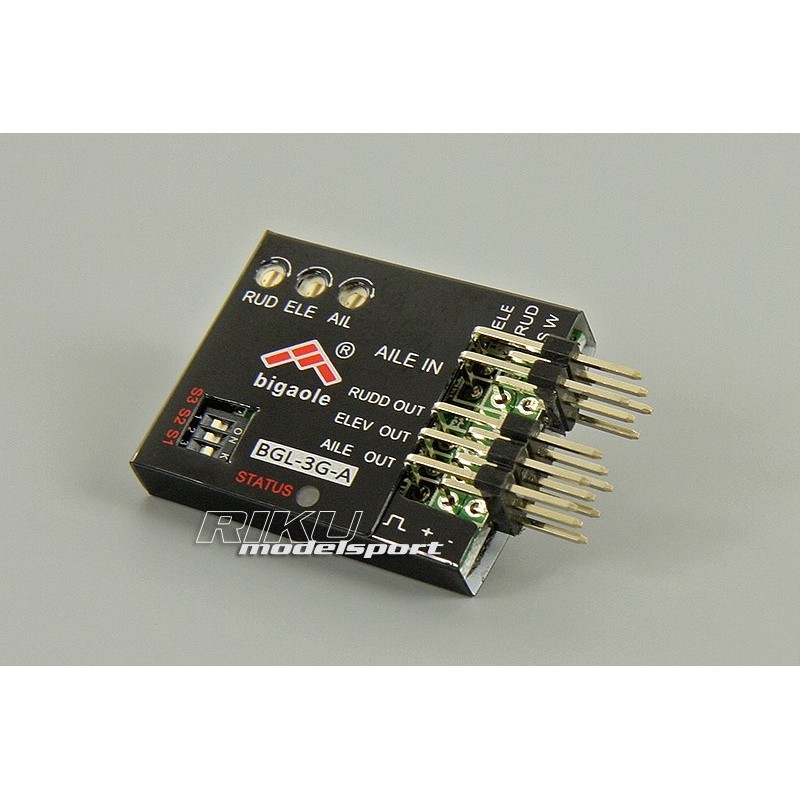

BGL-3G-A flight stabilizer (gyro).

The BGL-3G-A flight stabilizer, is a stabilization system equipped with a 3-axis gyro.
It is considered one of the best mass and semi-professional products.
The stabilizer can be used for both electric and combustion powered models.
It can be used for virtually any type of model from simple training models to aerobatic models.
Thesmall and lightweight housing allows the stabilizer to be safely and conveniently installed in any model.

A prerequisite for the use of this system in an RC model, is the use of a minimum of five-channel control apparatus, where the fifth channel in the transmitter is realized by a two- or three-position switch.

The two-position switch allows you to use two flight states:

• aVCS mode - stabilization in "Heading Hold" mode
• normal mode - normal stabilization

The three-position switch allows you to use three flight states:

• aVCS mode - stabilization in "Heading Hold" mode
• normal mode - ordinary stabilization
• gyro Off mode - no stabilization - manual flight

The stabilizer can be used for four airframe layouts:

• airplane system (two ailerons, altitude, direction)
• glider system (two split ailerons, altitude, direction)
• delta system (flapping ailerons, direction)
• v-Tail system (two ailerons, "V-Tail" type of tailplane

The stabilizer has smooth and independent sensitivity adjustment of all three axes.This allows you to adjust the response of the stabilizer to the pilot's preference.

The system allows you to connect two ailerons to one AIL channel using a "V" type cable.

Technical data:

• Weight: 7.5 g
• Dimensions: 31 x 25 x 10 mm
• Current consumption: 20 mA
• Permissible operating temperature: -15℃ / +65℃
• Operating voltage: DC 3.5V - 9.0V
• Compatibility with systems: PPM/PCM 2.4 GHz
• Compatibility with servos: 1.52ms - analog, 1.52ms - digital

*Follow the instructions included with the product.

Gyroscope - wiring diagram: TU
