Graupner

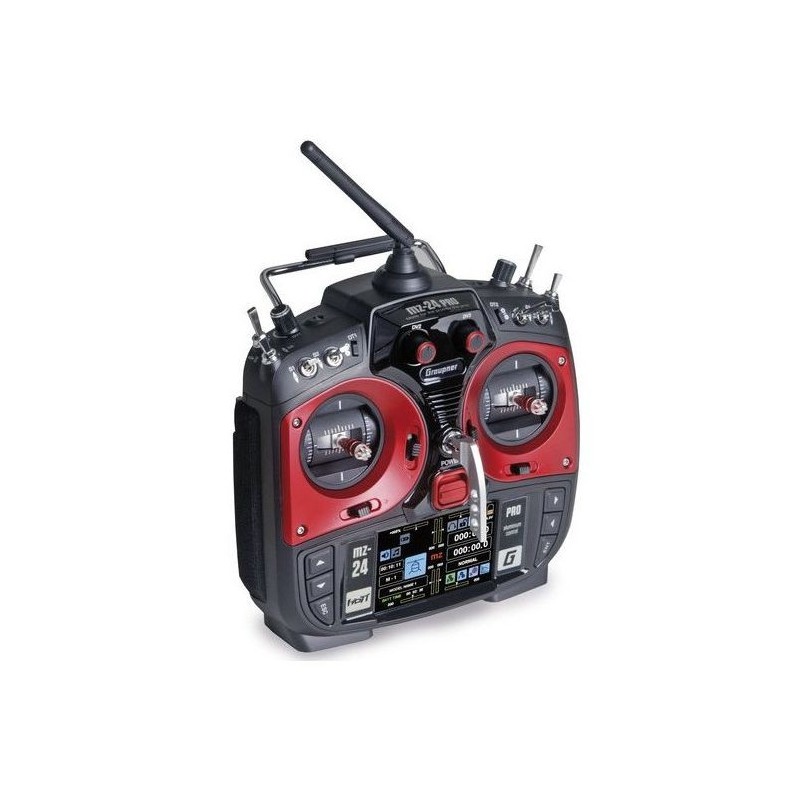

GRAUPNER/SJ APARATURA MZ-24 PRO (S1006.PRO)

GRAUPNER/SJ APARATURA MZ-24 PRO (S1006. PRO)

12-1285
Graupner/SJ
Product available on request. If interested, please contact us by e-mail: sklep@modelemax.pl

Product on order,

if you are interested in purchasing, please write to us and we will check the availability with the supplier, offer you an attractive price and after accepting the offer we will complete the order within 3 - 5 working days.

The very well known and successful Graupner MZ-24 apparatus has received a new version! Graupner company meets demanding users and does not rest on its laurels, on the contrary. The result of close cooperation with leading pilots is a new version of the transmitter, designated MZ-24 PRO. The new transmitter is not only a change in design, it also includes improved functions and a more intuitive and programming-friendly menu. In addition, the plastic control stick gimbals have been replaced with aluminum ones and a new battery with a larger capacity of 5000mAh is used.

The MZ-24 PRO from the renowned Graupner/SJ company, a 12-channel HOTT-based transmitter equipped with a 3.5" (inch) color touchscreen display.
Intuitive graphic icons simplify menu navigation and increase the speed of model programming.
Multilingual menus available via card-based updates or via computer via USB cable.
The transmitter has extensive telemetry capabilities allowing real-time visualization of many flight parameters of receiver operating voltage, flight altitude speed and position using the GPS module. After the use of appropriate modules also the parameters of operation of electric and combustion drive units .
It is also possible to record all flight parameters and servo positions on a micro SD card.
The transmitter allows pairing several receivers to one model, which simplifies the construction of advanced and complex multi-activity models.
Precision manipulators equipped with ball bearings to ensure precise operation for a long time of use.
Micro SD card for recording telemetry data , archiving models and other data.
Features:
-Ability to store 30 models in the transmitter software and many more on the SD card
-Software update with micro SD card , or USB cable
-3 programs helicopter , airplane , glider
-Extensive settings for handling directional and curve deflection mechanisms.
-6 Flight phases for each model
-Rotor disc types for helicopter 1 Servo, 2 Servo 180°, 3 Servo 120° , 3 Servo 140°, 4 Servo 90°
-7 point pitch and gas curves for each phase of flight
-5 linear and 3 graphic mixers
-Extended wing mechanics from 1 aileron and 1 flap to 4 ailerons and 4 flaps
-Support for all types of airframe: delta , classic layout , flying wing and butterfly tailplane, as well as division of the elevator rudder into two separate servos
-Dedicated mixers to operate airbrakes and other dedicated mixers specific to airframe type.
The kit includes:
  • aluminum carrying case
  • mZ-24 PRO transmitter
  • micro SD card
  • 5000mAh lithium-polymer battery for the transmitter allowing about 7 hours of continuous operation !!!
  • mains charger for the transmitter
  • gR-18 receiver
  • strap for the transmitter
  • cable and USB interface for transmitter and receivers software update
Technical parameters of the transmitter:
  • dimensions: 194 x 287 x 112mm
  • power supply voltage of the transmitter: 3,4...6V
  • operating frequency: 2400...2483.5MHz
  • weight: approx. 840g
  • modulation: FHSS
  • range: approx. 4000m
  • control channels: 12
  • current consumption: 670 mA
  • operating temperature: -10...+55°C
  • antenna length: 120mm
Receiver GR-18 + 3 axis gyroscope, 3 axis accelerometer and Variometer.
9-channel HOTT system receiver equipped with integrated 3 axis gyroscope, 3 axis accelerometer and variometer allowing to stabilize the model in difficult wind conditions extended with FLYBARLESS helicopter functions
Features:
- Individually adjustable in each of the 3 axes gyro sensitivity
-Vario measuring sensor with zoom function ( 10cm/s)
-Acro and Heli mode
- All parameters set from the telemetry of the HOTT system transmitter .
- Easy to adjust and operate simplifies learning to fly by leveling the impact of turbulence and wind .
- Allows increased safety during learning to fly as well as performing aerobatics .
- Makes it easier to maintain direction during takeoff and landing .
- Small dimensions and very low weight allow you to install this receiver in virtually any flying model.
- It has a built-in pressure sensor offering functions analogous to an external variometer (altitude , descent or ascent speed )
- Facilitates learning to fly in thermals and use air currents.
In the heli system saving space , reaction time of the system operating rotor disk 90/120/135/140 degrees. Super sensitive gyroscope operating tail rotor. Main rotor servo signal frequency from 50 to 200Hz Tail rotor servo 50-330Hz in fast mode with pulse width of 760us , 960us and 1.5ms easy adjustment of all parameters from the transmitter level saving space and weight , for additional gyroscopes and controllers of FLYBARLESS system and cables. Plus reduced response time by the time of the external FLYBARLESS system .
Technical specifications:
  • Dimensions: approximately 46 x 21 x 14 mm
  • Operating voltage: (2.5) 3.6 ... 8,4 V
  • Frequency: 2400 ... 2483.5 MHz
  • Total weight: approx. 14 g
  • Range: approximately 4000 m
  • Current consumption: 70 mA
  • Temperature range: -15 ... +70 ° C
  • Antenna length: 2x 145mm (30mm antenna)
