GRAUPNER/SJ ODBIORNIK GR-18 + 3XG+3A HO TT (33579)

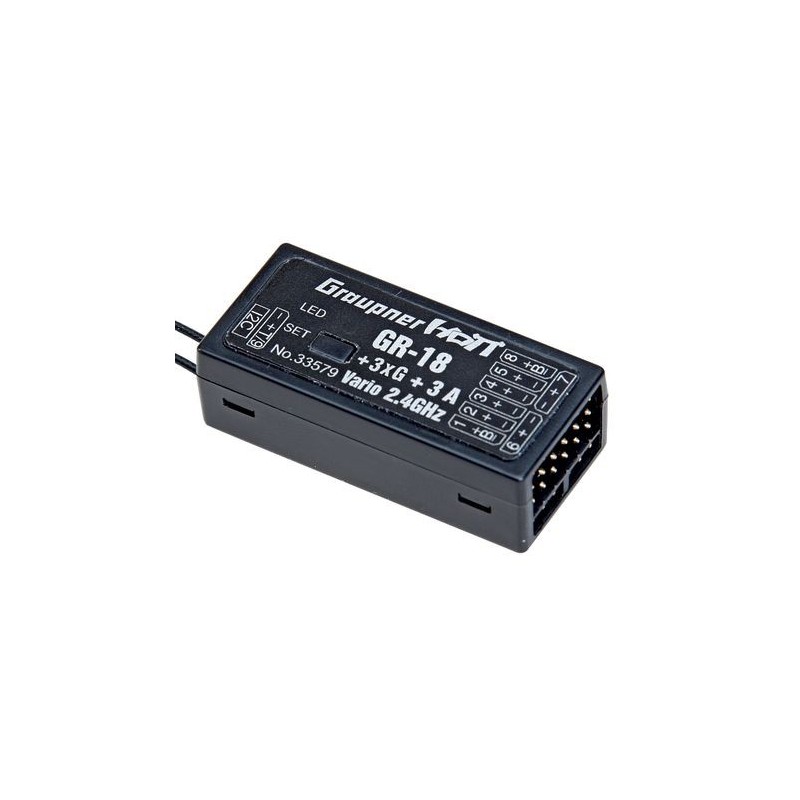

GR-18 receiver + 3-axis gyroscope, 3-axis accelerometer and Variometer.

9-channel HOTT system receiver equipped with an integrated 3-axis gyroscope, 3-axis accelerometer and variometer allowing for the stabilization of the model in difficult wind conditions, extended with the functions of a helicopter with the FLYBARLESS system

Characteristic:

- Gyro sensitivity individually adjustable in each of the 3 axes
-Vario measuring sensor with zoom function (10cm / s)
-Acro and Heli mode
- All parameters set from the telemetry level of the HOTT system transmitter.
- Simple to adjust and use, it simplifies learning to fly by eliminating the influence of turbulence and wind.
- It allows you to increase safety while learning to fly as well as performing acrobatics.
- Makes it easier to maintain heading during take-off and landing.
- Small dimensions and very low weight allow this receiver to be installed in virtually any flying model.
- It has a built-in pressure sensor offering functions analogous to the external variometer (altitude, speed of descent or climb)
- Facilitates learning to fly thermals and use air currents.
The heli system saves space, system response time, supports the rotor disc 90/120/135/140 degrees. Super sensitive tail rotor gyro. Main rotor servo signal frequency from 50 to 200Hz 50-330Hz tail rotor servo in fast mode with 760us, 960us and 1.5ms pulse width easy adjustment of all parameters from the transmitter level saving space and weight, for additional gyroscopes and FLYBARLESS system controllers and cables. In addition, the response time is reduced by the time of the external FLYBARLESS system.

Technical parameters:

• Dimensions: approx. 46 x 21 x 14 mm.
• Operating voltage: (2.5) 3.6 ... 8.4 V
• Frequency: 2400 ... 2483.5 MHz
• Total weight: approx. 14 g.
• Range: about 4000 m
• Current consumption: 70 mA
• Temperature range: -15 ... +70 ° C
• Antenna length 1 x 145 wire (antenna 30) mm.
