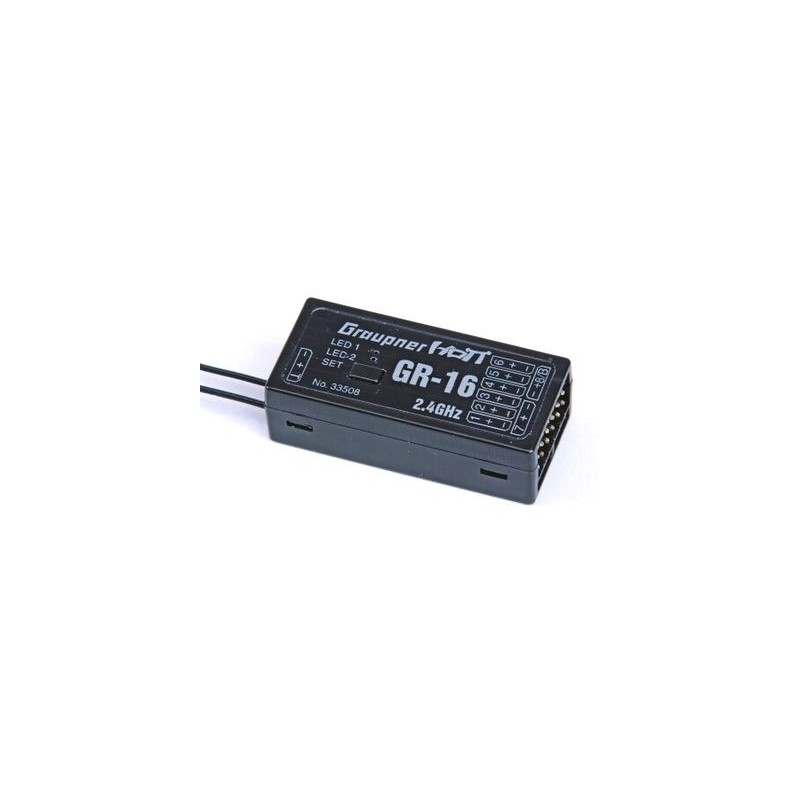

GRAUPNER/SJ ODBIORNIK GR-16 HOTT (33508 )

The GR-16 receiver can control up to 8 servos

The receiver equipped with GRAUPNER HoTT 2.4 GHz technology features a new high-frequency HoTT part with state-of-the-art components and state-of-the-art software. Antenna hardware differentiation always uses the better antenna signal to receive, and when transmitting, it always uses the antenna that was last used to receive. In this way it is ensured that the return channel data is transmitted via a better positioned antenna. The parameters "receiver voltage", "temperature" and "signal strength" are transferred without additional sensors.

Characteristic:

• The use of up to 75 channels ensures exceptional safety of use and insensitivity to external interference
• Extremely wide operating voltage range of the receiver from 3.6 V to 8.4 V (efficient up to 2.5 V) ensures full functionality even with voltage fluctuations
• Two LEDs indicate the operating status
• It was possible to reduce the size and weight
• The receiver's input sensitivity has been improved, and thus the range
• Front side servo connections
• Programmable falI safe, hold, OFF and standard (channel 1 "fail safe", all other "hold")

When using two or more receivers in the model, programming must not be carried out, e.g. via the Smart Box during flight, because the programming affects all enabled receivers and therefore may result in the appearance of undesirable, incorrect settings, which in the worst case may lead to that the model will fall. Therefore, programming should always be carried out on the ground and make sure that only the receiver that is being programmed is switched on.

Functions from SMART BOX:

• Possibility to program 3 mixers
• The servo can be programmed in a linear, degressive and exponential way
• Possibility to program the sum signal on the highest output of the highest channel (e.g. for V stabilizer, Microbeast system, quadrocopter, wireless student function with mc19 / 22 HoTT, flight simulators)
• The servo travel can also be restricted and changed in the direction of the receiver
• Safe wave, hold and OFF functions can be programmed separately. for servo channels
• Programmable low voltage, too high and too low temperature warning thresholds
• Servo test function

Technical data:

• dimensions: 46 x 21 x 14 mm.
• operating voltage: 3.6V - 8.4V
• frequency: 2400-2483.5 MHz
• weight: 12 g.
• modulation: 2.4 GHz FHSS
• range: approx. 4000 m.
• current consumption: 70 mA
• antenna length: 2 x 145 mm.
• operating temperature range: -15 ° C to 55 ° C

And how the software is updated, see here:

• https://www.youtube.com/watch?feature=player_embedded&v=Tb2PCP06DRs
