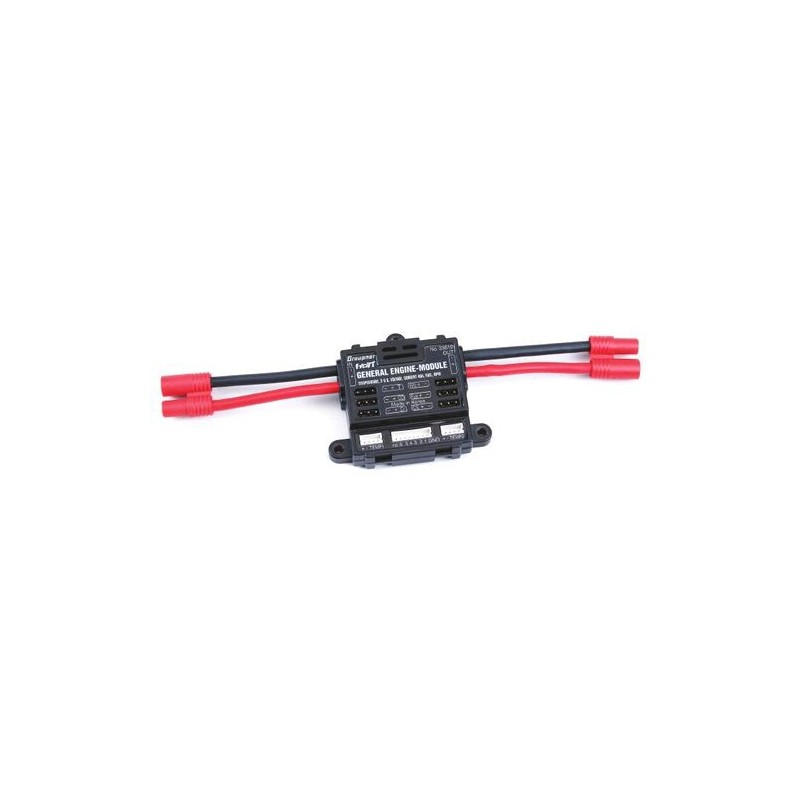

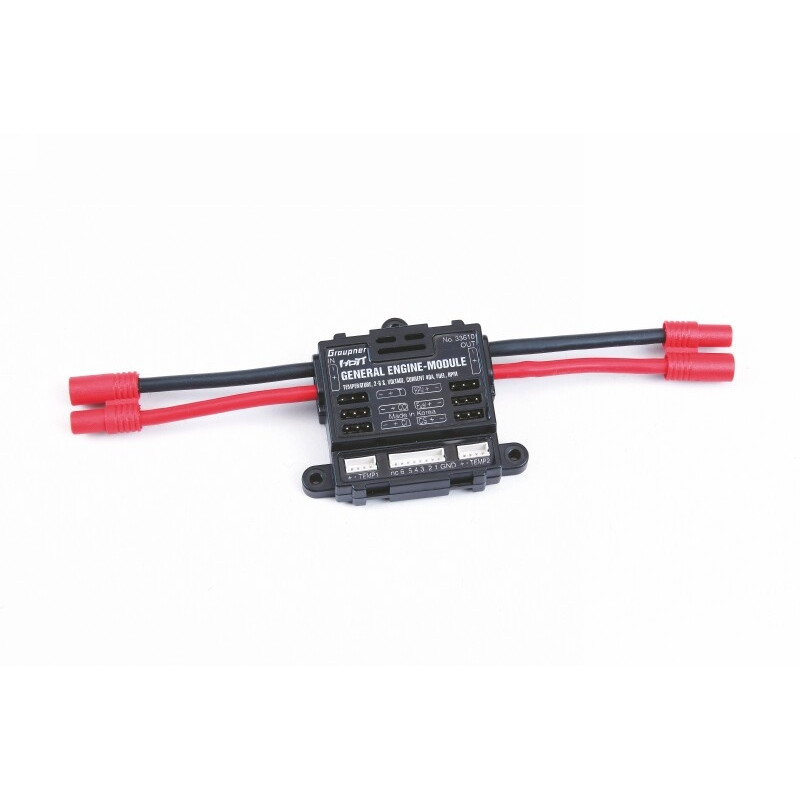

GRAUPNER/SJ HOTT GENERAL ENGINE-MODUL 2 -6S / 40A (33610

Main telemetry module for Graupner HoTT receivers and models with internal combustion engine or electric motor.

• 2x temperature and voltage inputs for sensors. Via warning thresholds for min/max voltage and min/max temperature
• measurement of the voltage of individual cells (balance connector) with warning when the minimum voltage is reached
• measurement of voltage, current and capacity with warning of minimum/maximum voltage, maximum capacity and maximum current
• programmable current limit
• current measurement with shunt 2x 1 mOhm in parallel = 0.5 mOhm
• speed measurement with warning when min/max value is reached
• fuel level measurement with warning in 25% increments
• voice warning can be set to: OFF, 5, 10, 15, 20, 25, 30 s, continuous warning
• repetition time warning can be set to: constant, 1, 2, 3, 4, 5 minutes, one time

Important note on the use of telemetry modules 33601, 33610, 33611, 33620, S8437:

• Never make any program adjustments or adjustments while the model is in flight, lest the model get out of control due to your inattention
• Under no circumstances should you attempt to configure and program a telemetry model in flight if your model is equipped with two receivers. Program changes may affect a receiver without telemetry modules connected and thus you may lose control of your model
• Always perform all programs and settings on the ground and make sure that only the receiver with active telemetry units is powered.

*Follow the instruction manual included with the product !
