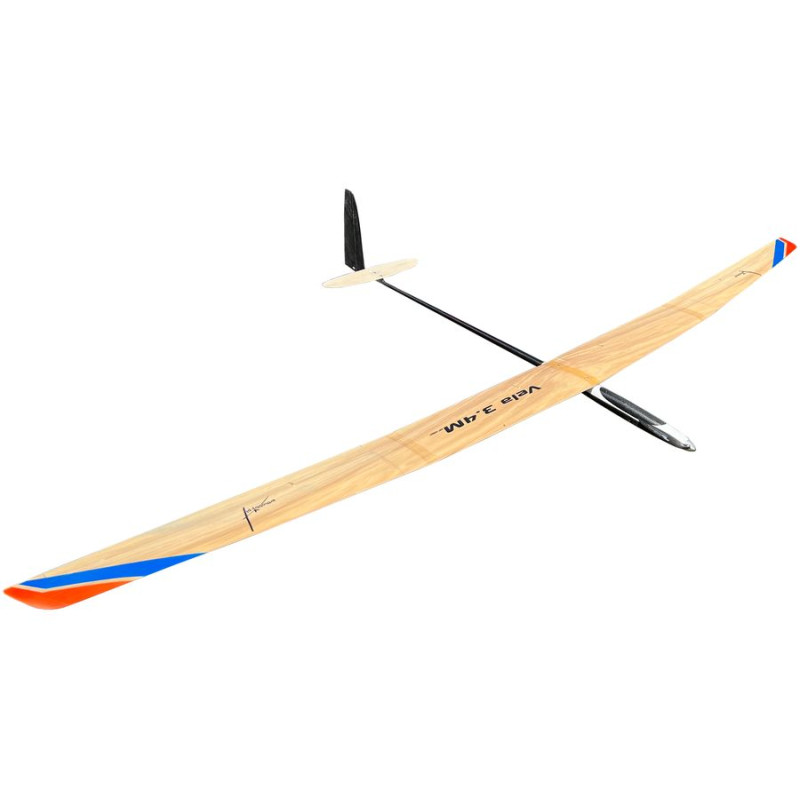

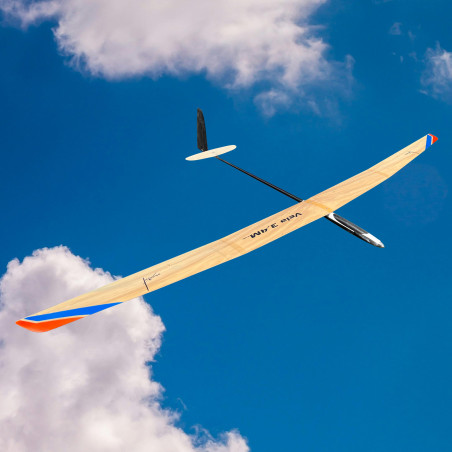

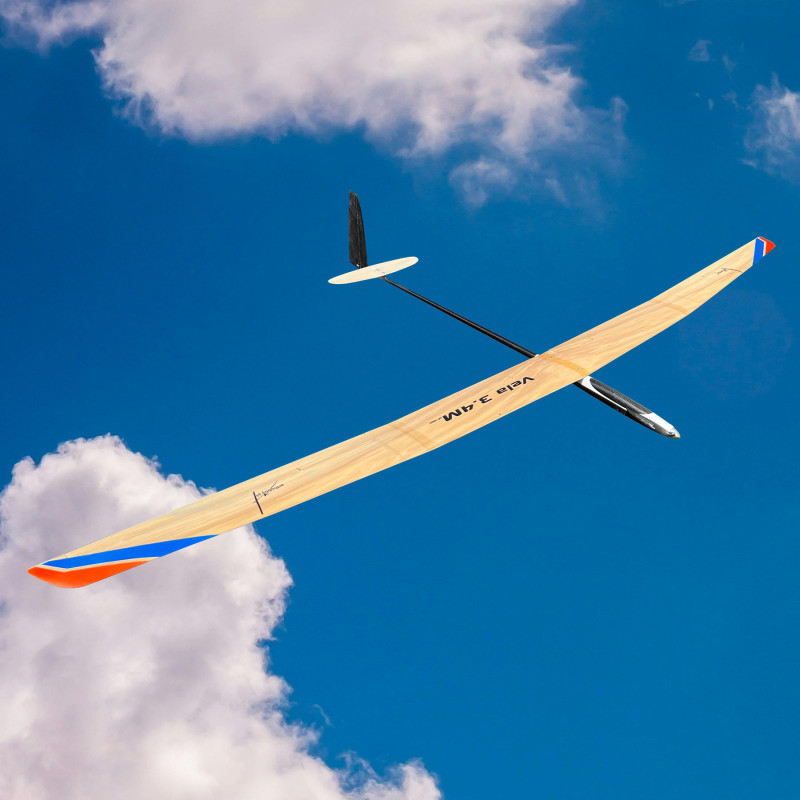

ART VELA-ECL F5J / 3400 mm ELEKTRO (0210)

VELA-ECL F5J - a glider with electric drive from the Polish company Art Hobby. The model, thanks to the right proportions and profile of the airfoil, has excellent flight and thermal properties, as well as high speed and excellence.

The fuselage is made of laminate, three-segment wings covered with veneer (ailerons / flaps or ailerons only version). Balsa and laminate V-type butterfly tailplane - removable (also possible to be fixed). The model should be painted with cellulose varnish (manufacturer's dedicated varnish - see TU).

The model is 90% ready to fly, to be finished by yourself and "armed" with RC accessories.

Important !

Before assembling and painting the model, read the instructions carefully, follow the manufacturer's recommendations !

For the model are available (under the order) all parts such as: wings, fuselage, contraption, etc....

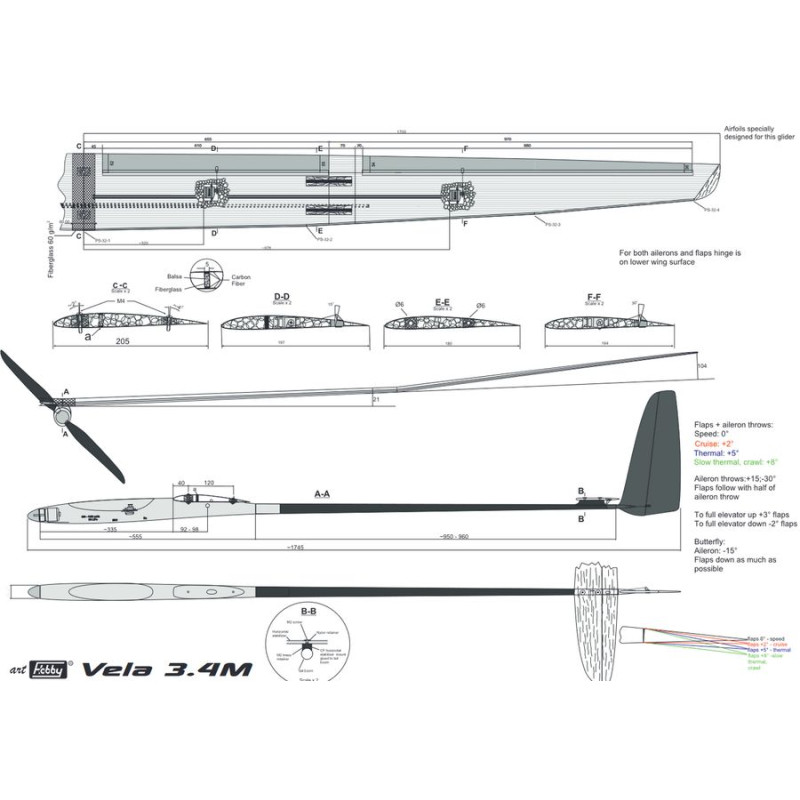

Technical data:

• span: 3400 mm
• length: 1745 mm
• wing area: 57.20 dm²
• wing profile: specially designed for this glider
• model weight: 796 g
• flight weight: about 1350 g

Recommended equipment:

• rC apparatus with receiver: 8 CH and above ( with mixer)
• servos: 4 x ES 3352 + 2 x(e.g. HS-65MG)
• motor e.g. ART-1700 / 1900
• speed controller 35A - 50A
• 35 mm cap
• propeller 14x8 / 15x6
• liPo battery
• servo covers x 4

For more information and photos, visit the manufacturer's website : TU

*Follow the instruction manual attached to the product and legal regulations for flying RC models.
