FUTABA 32MZ WC + R7208SB receiver

Product on order,

if you are interested in purchasing, please write to us and we will check the availability with the supplier, offer you an attractive price and after accepting the offer we will complete the order within 3 - 5 working days.

*Description translated by translator - may contain errors

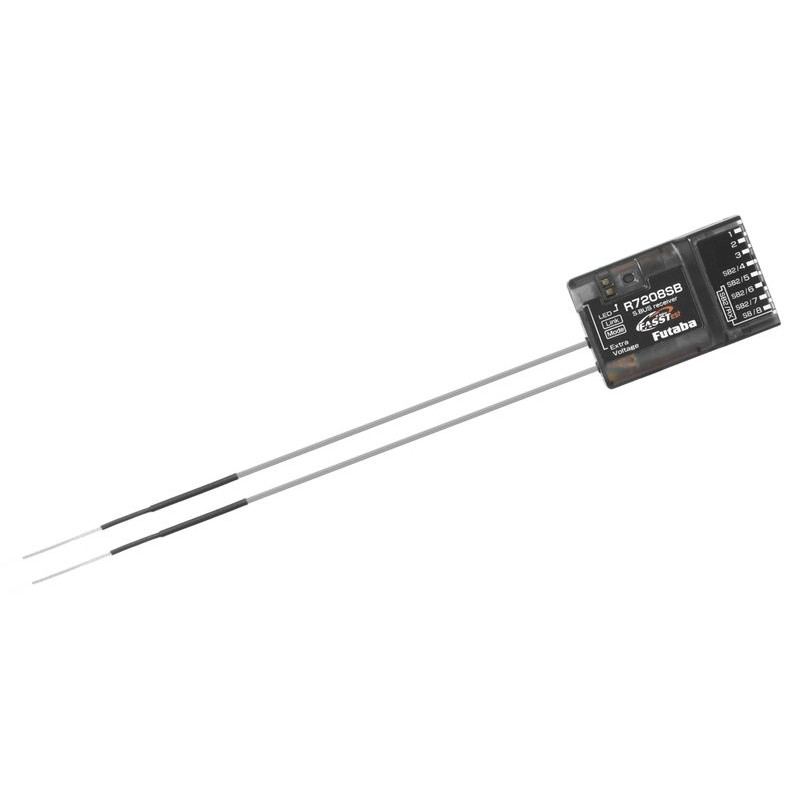

High-end 26-channel (expandable to 32-channel) RC kit using the FASSTest-2.4 GHz telemetry transmission system for advanced sports and very advanced recreational modelers and their simple, complex and giant models. The transmitter can also be switched to T-FHSS Air (also telemetry), FASST Multi/7ch and S-FHSS transmission modes and thus use the entire range of Futaba antenna receivers with and without telemetry. With the R7208SB receiver included in the kit, you have 8 PWM channels for classic servos in FASSTest 26CH transmission mode (or 16 channels when using 2-receiver mode, or 24 channels when using 3-receiver mode and one or two additional R7208SBs) or the full 26 channels of channels via the S.BUS and S.BUS2 buses; as well as telemetry data on the receiver's power supply voltage, the voltage of another external battery (such as a drive) and the signal strength received by the receiver. Additional telemetry data can be acquired from additional telemetry sensors connected to S.BUS2. Using Multiprop 1 and 2 and MPDX-1 proportional multidecoders connected to the receiver, 1 or 2 proportional channels can be expanded to 8 proportional channels, allowing the T32MZ-WC to control up to 32 channels in total (using the FASSTest 18CH transmission system).

Compared to the existing T32MZ, the new T32MZ-WC offers a number of novelties:

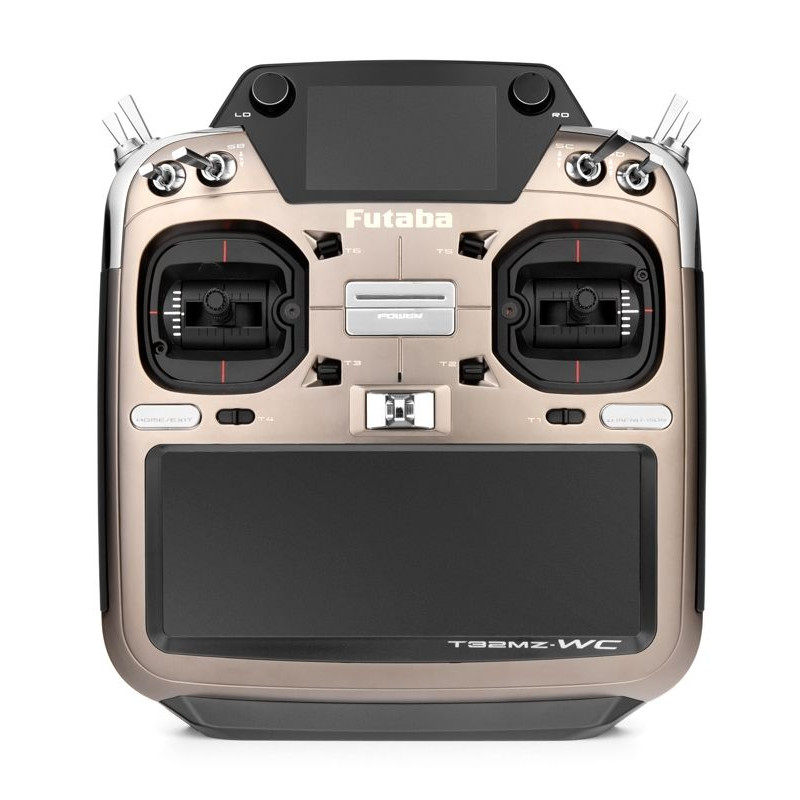

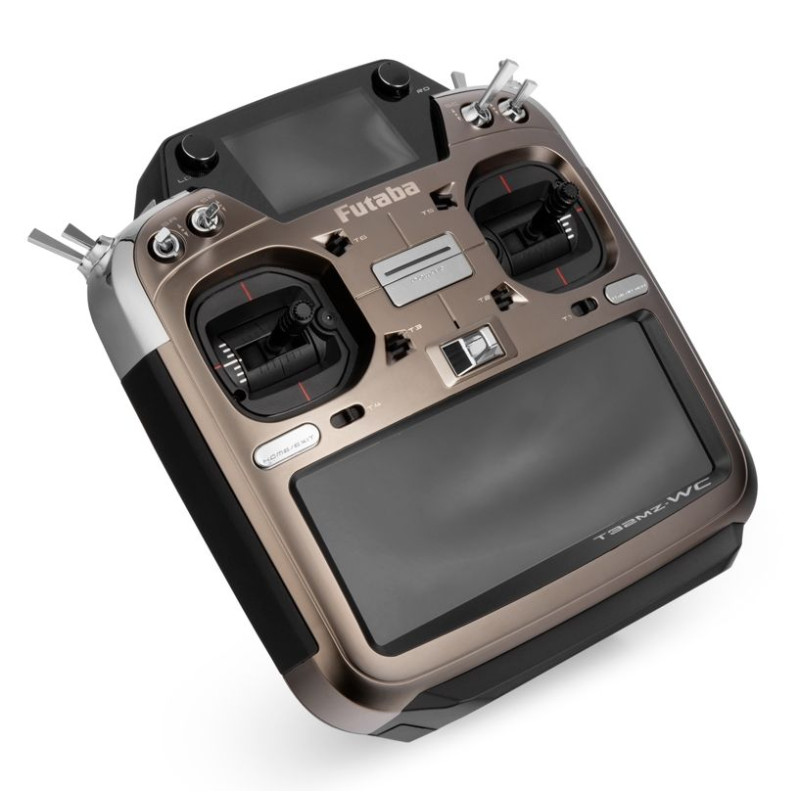

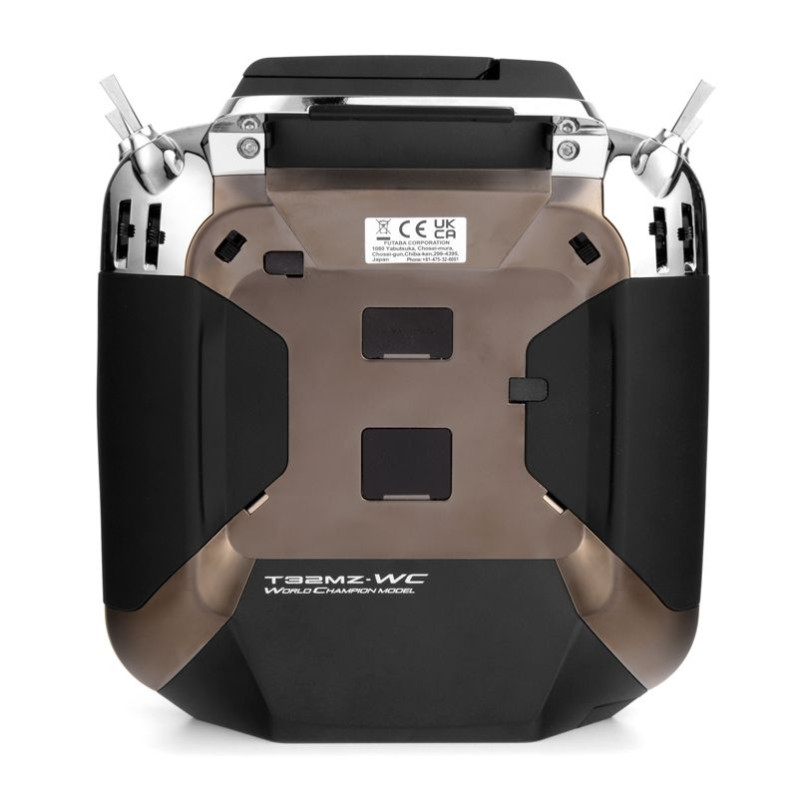

The T32MZ-WC transmitter, in a case that fits perfectly in the palm of your hand, features precision crossover control with lock/neutral adjustment, 10 switches, 4 faders, 6 digital trimmers and 2 rotary proportional controls. For programming, a pair of pushbuttons and a large, backlit HVGA color LCD touchscreen display provide easy navigation through intuitive menus using the Windows Embedded Compact 7 operating system. The T32MZ-WC has memory for 30 models, which can be expanded at will using an SD card, and a wide range of advanced mixing functions for aerobatic aircraft, gliders and helicopters. In addition to displaying telemetry data on the display, there is a voice telemetry output in the handset socket (not included). The T32MZ-WC is also equipped with a teacher-student jack, and allows programming and setting of S.BUS servos. There is also a music player (for WMA audio files stored on a microSD card) and an audio recorder with microphone.

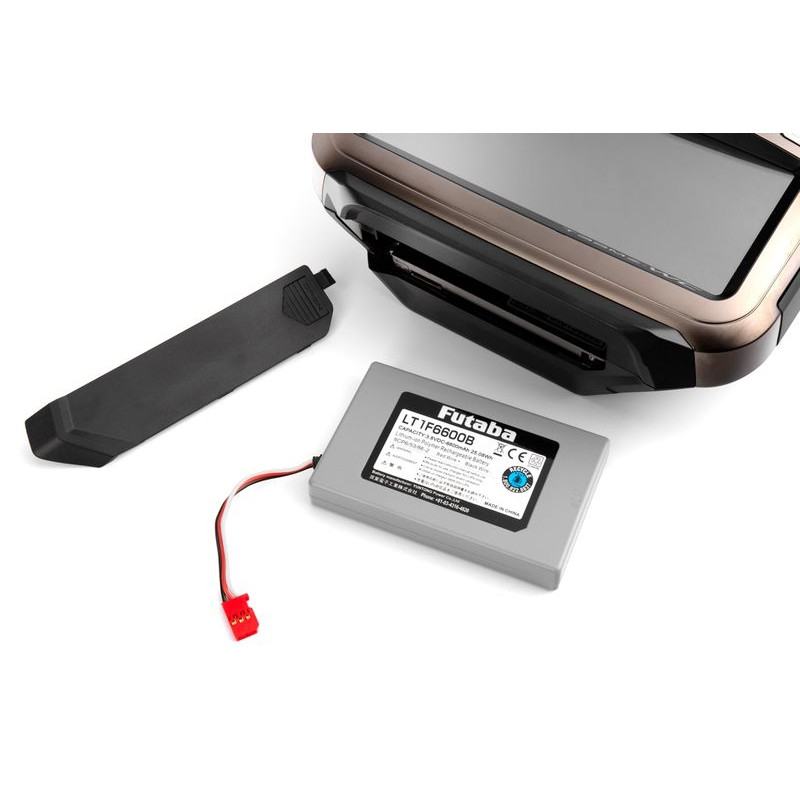

A 1S 6600 mAh LiPo battery is used for power, and an AC adapter is included for charging it (automatic charging is built into the transmitter).

FEATURE

• FASSTest 26CH transmission system with telemetry (24 proportional + 2 switchable channels), FASSTest 18CH with telemetry (16 proportional + 2 switchable channels), superfast FASSTest 12CH (12 channels, telemetry only receiver supply voltage), FASST MULTI (16+2 channels without telemetry, FASST 7CH (7 channels), T-FHSS Air with telemetry, S-FHSS 2.4GHz without telemetry, CRSF protocol for TBS Crossfire (one-way communication). In FASSTest 18CH and FASST MULTI modes, two proportional channels can be expanded to 8 proportional channels using the Multiprop function and MPDX-1 decoder connected to the corresponding receiver channel.
• Color backlit HVGA (640x240 dots) touchscreen LCD display for quick and easy programming, additional display on top of transmitter front panel for timer and telemetry display
• As many as 8 flight modes for superior model control in all conditions
• Full telemetry with data transfer from a wide range of sensors with microSD card storage capability
• Memory for 30 models with unlimited expansion via microSD card.
• LiPo 3.7V 6600 mAh transmitter battery for long operation
• Telemetry voice output to headphone jack (3.5 mm jack) + music playback from microSD card
• Upgradable software
• Freely assignable 4 faders and 2 knobs, 10 switches, 6 digital strips while the switch blocks in the upper left corner are detachable and allow you to replace switch types with other types (2/3 position, momentary, etc.)
• Precision cross-over drivers housed in 4 ball bearings
• Teacher-student socket
• S.BUS servo programming socket
• Model names of up to 32 characters + configurable image for each model
• Subtrims, now also with balance function for fine-tuning the entire yaw waveform along a 17-point curve
• Reversal of servo deflection direction
• Setting end points and deflection limits
• Setting servo speed
• Data reset
• Reliable emergency deflection
• Dual deflection (up to 6 different ratios for each flight mode)
• Set deflection waveforms with six selectable waveform types (linear, 2x exponential, symmetrical curved, curves with up to 17 points with straight segments or smoothed waveforms)
• Freely programmable mixes (10 mixes for each flight mode) with six selectable waveform types (linear, 2x exponential, symmetric curved, curves with up to 17 points with straight segments or smoothed waveform)
• Sequencer function for controlling, for example, a retractable chassis with a choice of three modes and adjustable timing for opening/closing the chassis door and extending/retracting the chassis legs
• Most mix functions have six types of waveforms to choose from (linear, 2x exponential, symmetrical, curves with up to 17 points with straight segments, or smoothed waveforms) and the ability to assign trim/rotary or sliding controls for fine-tuning on the fly
• Engine shutdown
• Safe idle
• Rich mixture (for RC carburetors with adjustable needles)
• Logically linked switches (max. 10 to select flight modes, 8 to mix functions for each flight mode)
• User menu (allows you to select only a few of the most frequently used program functions for greater clarity)
• Servo and servo monitor
• Two timers (stopwatch or timer)
• Model run time
• Transmitter run time
• Throttle position indication when turned on
• Adjustable display backlighting
• Cross-controller calibration
• Warning signaling - sound and vibration
• Range control
• Setting the mode of operation with 2 or 3 receivers

Program menu for aerobatic aircraft

• 13 types of wings (7 types for normal aircraft, 6 types for autowing)
• 3 types of tail surfaces
• 2 types of vertical tail surfaces (wings)
• Flap adjustment - up to 4 flaps
• Differentiation of aileron deflection - up to 4 ailerons (6 runs, curve up to 17 points)
• Mix of aileron and flaps (6 courses, curve up to 17 points)
• Aileron-brake flap mixture (6 runs, curve up to 17 points)
• Aileron and rudder mix (6 courses, curve up to 17 points, tuning)
• Aero-brake elevator mixture (6 courses, curve up to 17 points, tuning)
• Mixed rudder and ailerons (6 courses, curve up to 17 points, tuning)
• Mixed camber (trailing edge curvature) for up to 8 flaps/aviators (6 runs, curve up to 17 points, retardation)
• Mixed elevator and tilt (6 runs, curve up to 17 points, tuning)
• Flap/elevator mix (6 courses, curve up to 17 points, tuning)
• Aerodynamic brake supporting up to 8 brakes/flaps/flaps
• Gyro Control - gain control/mode switching for triaxial flight gyroscopes
• Kicked twist
• Butterfly tail surfaces
• Mixing elevator (elevator for 2 servos)
• Winged
• Mixing motor (for switch control with adjustable start and stop)
• Mixed rudder and elevator (6 courses, curve up to 17 points, tuning)
• Multi-engine model - combination for coordinated control of up to 4 engines
• Configuration of the GYA553 gyro system on the transmitter

Program menu for gliders

• 13 types of wings (7 types for normal aircraft, 6 types for autowing)
• 3 types of tail surfaces
• 2 types of vertical tail surfaces (wings)
• Adjustment of flaps - up to 4 flaps
• Differentiation of aileron deflection - up to 4 ailerons (6 runs, curve up to 17 points)
• Mix of aileron and flaps (6 courses, curve up to 17 points)
• Aileron-brake flap mixture (6 runs, curve up to 17 points)
• Aileron and rudder mix (6 courses, curve up to 17 points, tuning)
• Aero-brake elevator mixture (6 courses, curve up to 17 points, tuning)
• Mixed rudder and ailerons (6 courses, curve up to 17 points, tuning)
• Mixed camber (trailing edge curvature) for up to 8 flaps/aviators (6 runs, curve up to 17 points, retardation)
• Mixed elevator and camber (6 runs, curve up to 17 points, tuning)
• Flap/elevator mix (6 courses, curve up to 17 points, tuning)
• Butterfly mix for up to 8 flaps/flaps (6 runs, curve up to 17 points, delay)
• Trim mix 1 and 2 (delay, tuning)
• Gyro Control - gain control/mode switching for triaxial flight gyroscopes
• Butterfly tail surfaces
• Mixing elevator (elevator for 2 servos)
• Winged
• Mixing motor (for switch control with adjustable start and stop)
• Accelerator - for accelerating the response of the elevator rudder, elevator combination, elevator tilt and aileron and directional rudder
• Configuration of the GYA553 gyro system on the transmitter

Program menu for helicopters

• Mix for 8 types of turntables with adjustable neutral, yaw rate, compensating mix ratio, drawbar and speed compensation
• Throttle curve (6 passes, curve up to 17 points, hover throttle trim)
• Aggregate curve (6 passes, curve up to 17 points, hovering trim, high and low trim)
• Acceleration - throttle and collective acceleration response
• Automatic rotation
• Deviation and correction correction for cyclic board (6 runs, curve up to 17 points)
• Cyclic adjustment deviation limit
• Throttle correction mixtures (throttle roll/tilt/throttle deviation) (6 passes, curve up to 17 points)
• Gain control/gyro mode switching for up to 3 gyros with up to 3 values for each flight mode
• Aggregate needle mix (6 passes, curve up to 17 points, tuning)
• Revomix (6 runs, curve up to 17 points)
• Regulator control (up to 3 target speed values for each flight mode, tuning)
• Throttle limiter
• Intelligent interface for configuring Futaba CGY755 and CGY760R gyro systems on the transmitter display, with the option of wired connection (same full range of functions as in GPB-1) or wireless connection (after reading gyro data via cable, limited number of functions)

Compatible telemetry sensors and other devices

• Temperature sensor (SBS-01T)
• Temperature sensor (SBS-01TE)
• Tachometer with optical sensor (SBS-01RO)
• Tachometer with magnetic sensor (SBS-01RM)
• Tachometer for AC motors (SBS-01RB)
• Voltage sensor (SBS-01V)
• Current sensor (SBS-01C)
• Barometric altimeter/variometer (SBS-01A, SBS-02A)
• GPS sensor (SBS-01G, SBS-02G)
• Pitot tube speedometer (SBS-01TAS)
• Servo sensor pro S.BUS2 servo (SBS-01S)
• Flight recorder (recording telemetry data on SD card)
• rOXXY controllers
• Kontronika controllers
• Futaba controllers
• Hobbywing controllers
• JetCat V10
• Power box

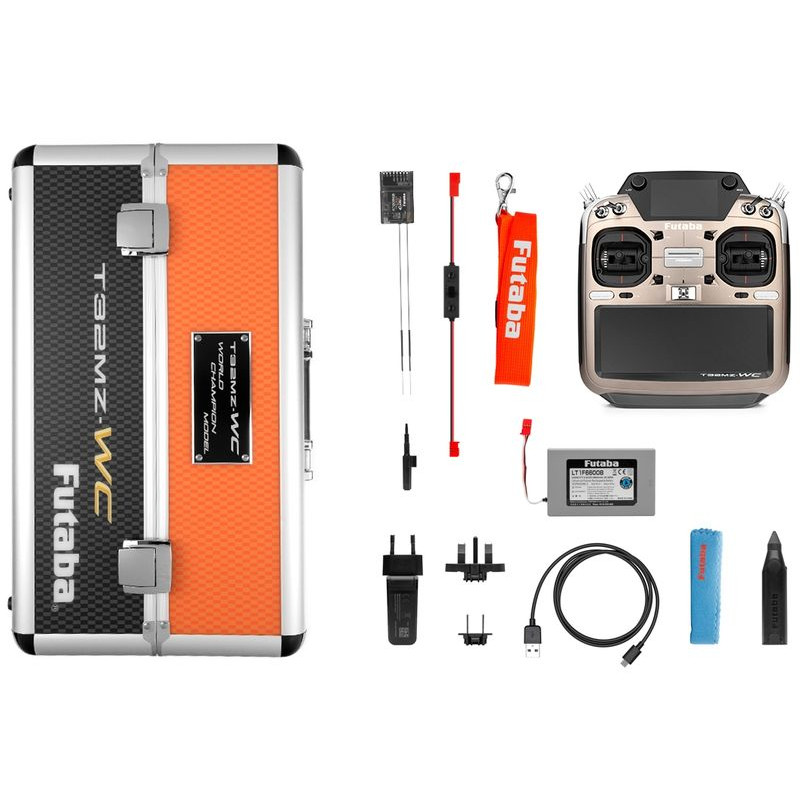

RC KIT INCLUDES

• Futaba T32MZ-WC 2.4 GHz transmitter
• R7208SB receiver
• ESW-1J electronic switch with cables
• Strap
• 3.7V LiPo 6600 mAh transmitter battery
• Power adapter with USB cable for charging the transmitter battery
• Stylus (in combination with toggle nut wrench)
• Allen loop of 1.5 mm and 2.5 mm (stored in the stylus)
• Plastic screwdriver
• Display cleaning cloth
• User manual
