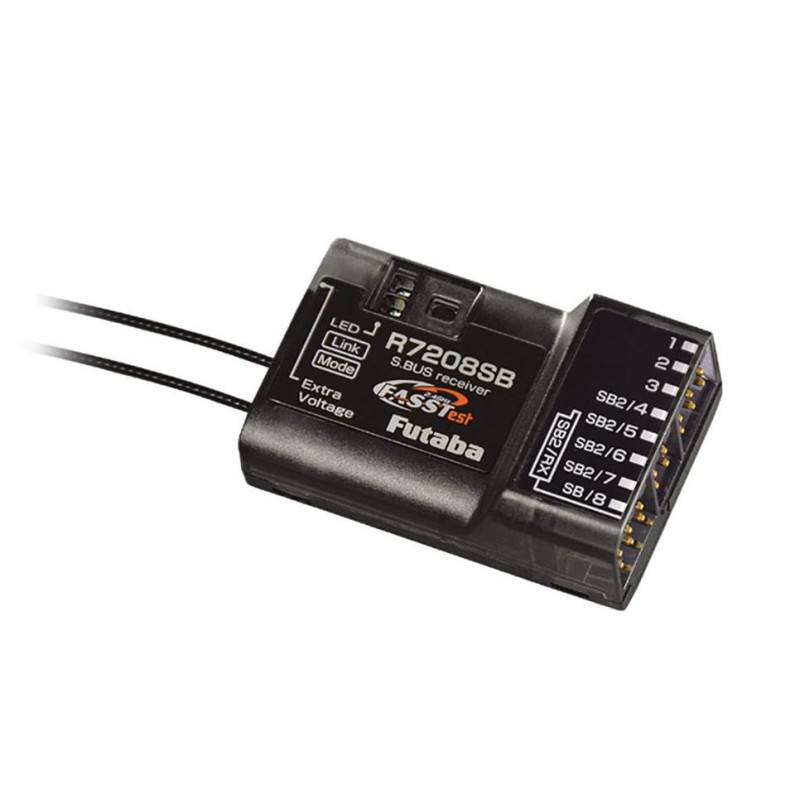

FUTABA R7208SB FASSTTest 8ch RECEIVER

Futaba's eight-channel FASSTest-2.4GHz and FASST (no telemetry) transmission system telemetry receiver with a pair of full-band diversity antennas. It is designed for general use in models of all categories; its compact size, light weight and retractable along connectors make it suitable for slim-frame models such as F3B, F3J, etc. With a choice of channel modes and dual-receiver operation, it will also serve well in models requiring a large number of channels, in which case the R7208SB pair will provide up to 16 classic PWM channel outputs or 14-15 PWM outputs and 1-2 S.BUS serial outputs. In addition, the receiver is equipped with an S.BUS2 port for bi-directional communication, allowing the connection of S.BUS2 servos, telemetry sensors and other compatible devices; channel slots 4-7 can also serve as S.BUS2 ports.

Technical specifications:

• modulation: FASSTest-24 GHz
• number of channels: 8
• power supply: 3.7 / 4.8 / 6 / 6.6 / 7.2 / 7.4 / V
• length: 38.8 mm
• width: 24.9 mm
• height: 14.3 mm
• weight: 9.9 g
• serial output: S-BUS / S-BUS2

*Follow the enclosed instruction manual.
