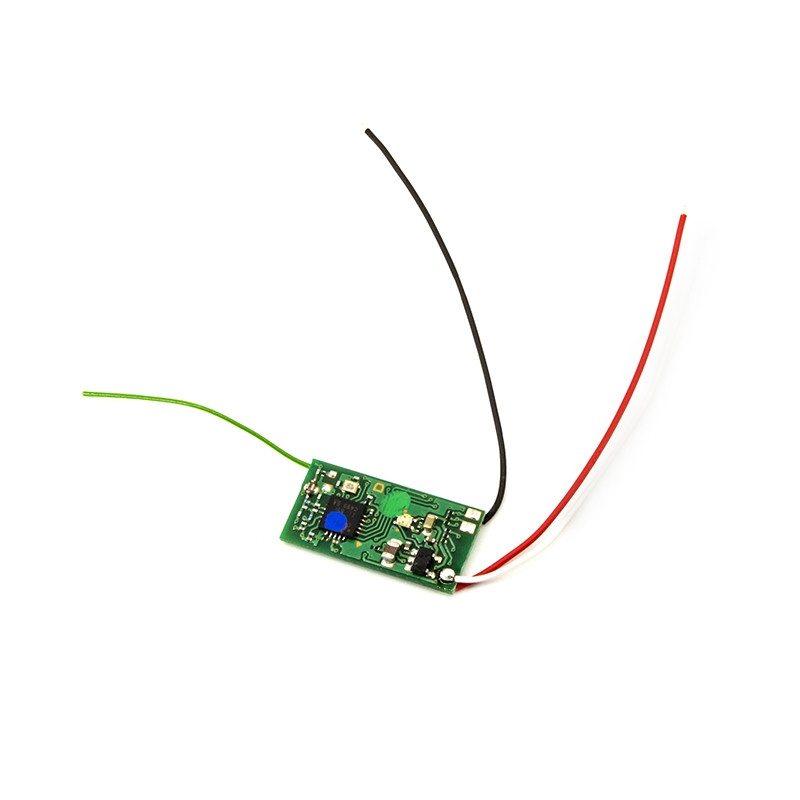

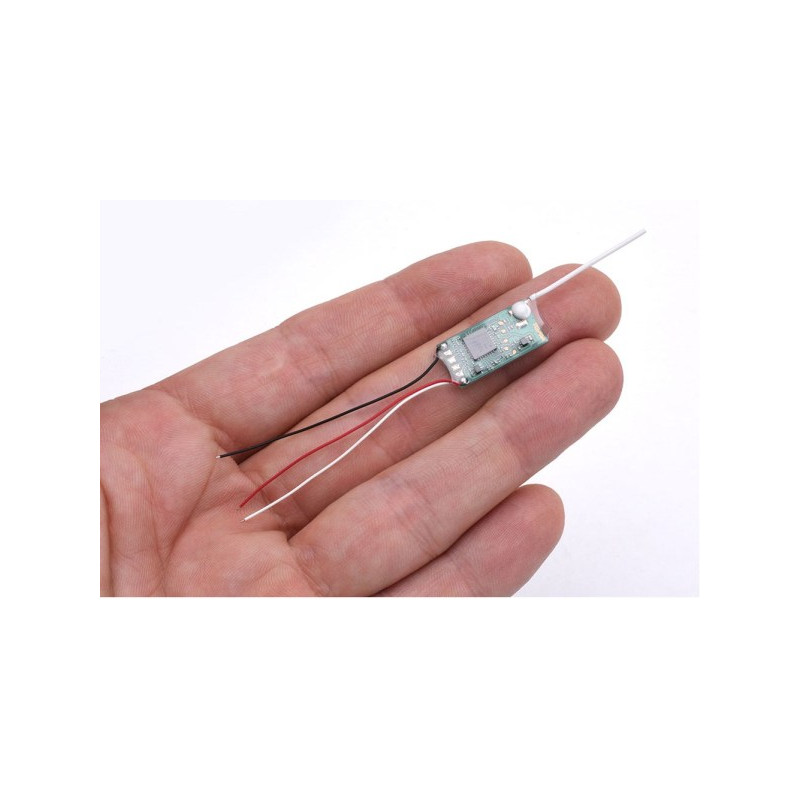

FUTABA R3206SBM T-FHSS micro RECEIVER

Futaba six-channel miniature T-FHSS Air-2.4GHz transmission system receiver without telemetry with limited range (the smallest of Futaba receivers). It is designed for use in mini drones with a control unit communicating over the S.BUS or in indoor model aircraft with S:BUS or classic (PWM) servos. The R3206SBM provides up to 6 classic PWM channel outputs and 1 S.BUS serial output. The receiver's operating states are indicated by an LED. There are no pins for direct connection of servos. You need to solder the wires or pins on your own and according to your individual requirements, and then put the receiver in a heat shrink sleeve.

The S.BUS or S.BUS2 servo connected to the channel output of the classic receiver (PWM) works like a classic servo. Its movement is given by the signal in the channel of the receiver to which it is connected. The settings of the programmable servo functions remain in effect.

Specifications:

• Modulation: T-FHSS Air-2.4 GHz
• Number of channels: 6 (no pins with solder spots) or via S.BUS
• Power supply: 3.2 - 8.4 V
• Length: 20 mm
• Width: 10 mm
• Height: 3 mm
• Weight: 1 g
• Serial output: S-BUS
• Telemetry: NO
• Range: short (up to 100 mb max) - always check the actual range under the conditions before flying

*Follow the enclosed instruction manual.
