FUTABA T4PM + R334SBS RECEIVER

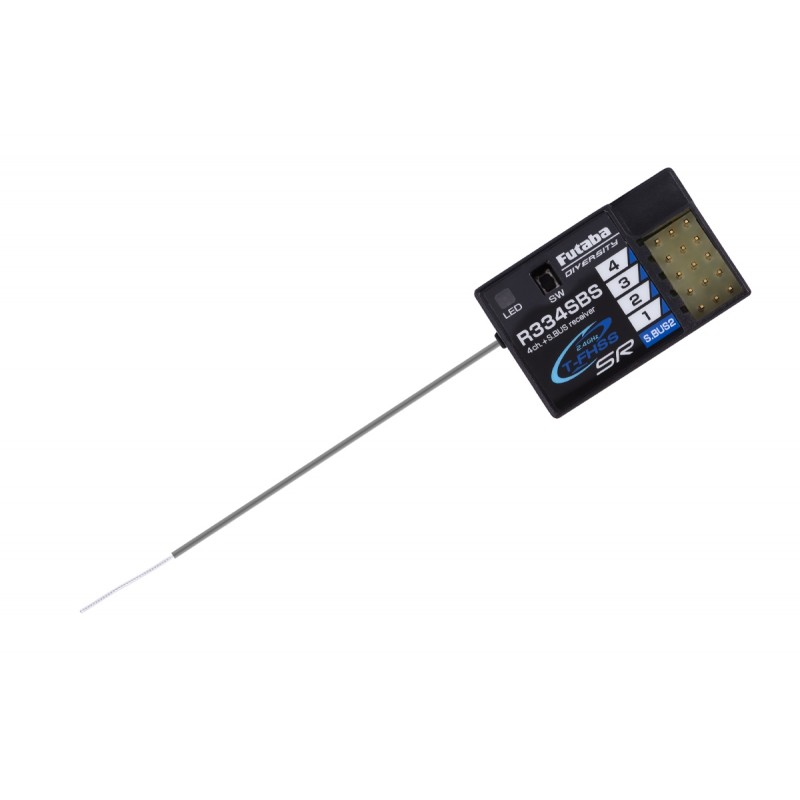

A four-channel RC kit with Futaba computerized steering wheel using the 2.4GHz T-FHSS SR transmission system with super-fast response for competition and advanced recreational car and boat models. The transmitter can also be switched to transmit modes with T-FHSS telemetry or without S-FHSS telemetry, thus utilizing the entire range of T-FHSS and S-FHSS receivers for RC cars and boats. With the included R334SBS T-FHSS, SR/T-FHSS receiver you have 4 PWM channels for classic servos and the ability to transmit telemetry from sensors connected to the S.BUS2 socket

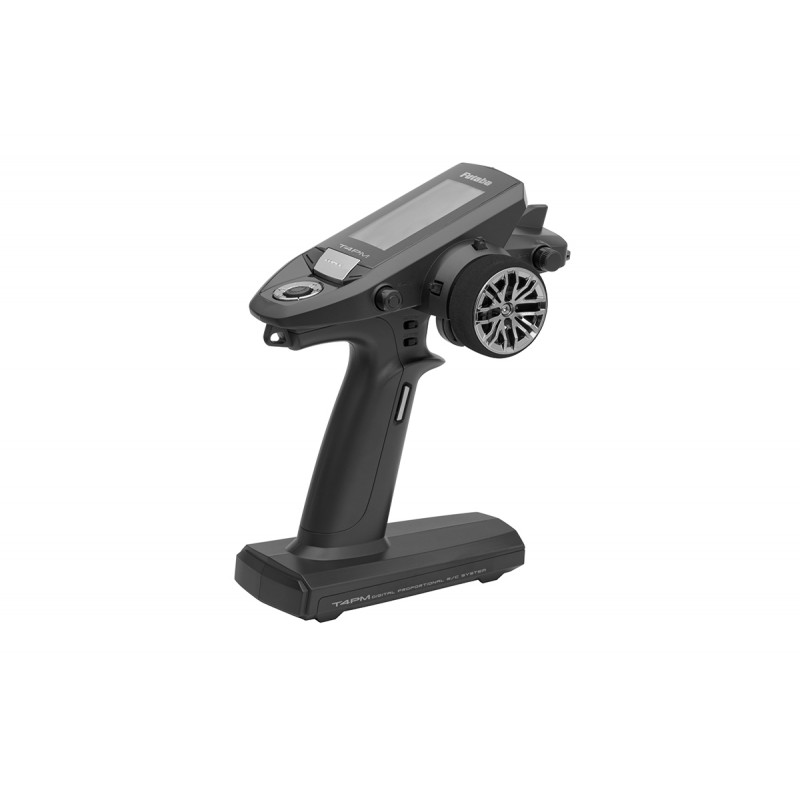

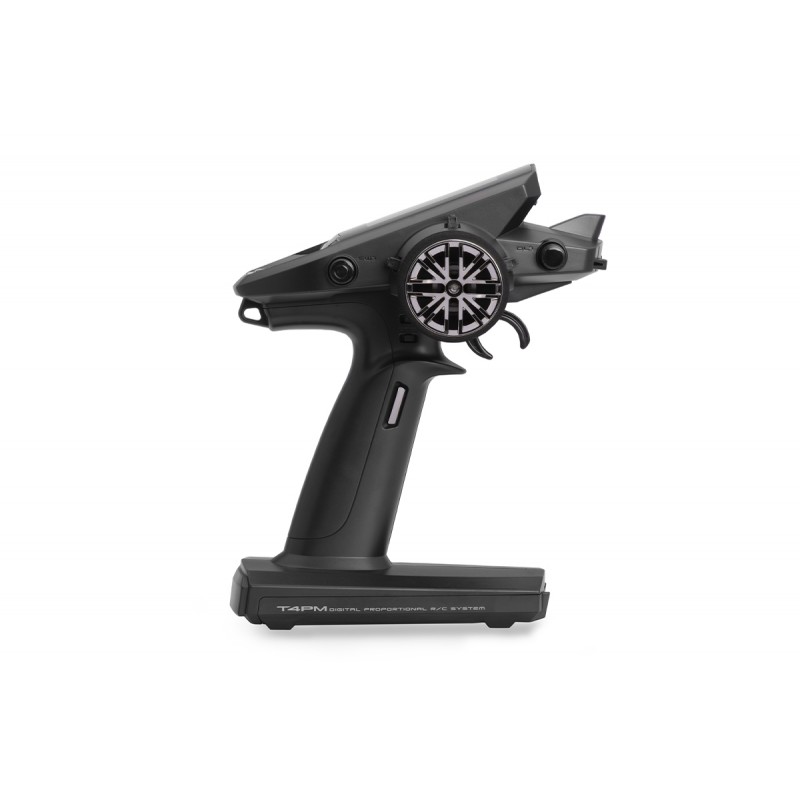

The T4PM transmitter, in a classic handlebar design with a grip that fits perfectly in the hand, features steering wheel controls, a throttle trigger, two pushbutton switches, one dial and five digital trimmers (3 around the handlebar, 2 on the grip). Three buttons and a multi-function joystick are used for programming; easy orientation in the intuitive menu is provided by a large backlit LCD display. The T4PM has a memory for 40 models and a wide range of advanced programming features for ordinary and special car models - e.g. independent control and drive (using 2 controllers) of front and rear wheels for tracks, dual-circuit brakes for large 1:5 models, gyroscope for drifting, ABS, traction control, tank mixer, etc

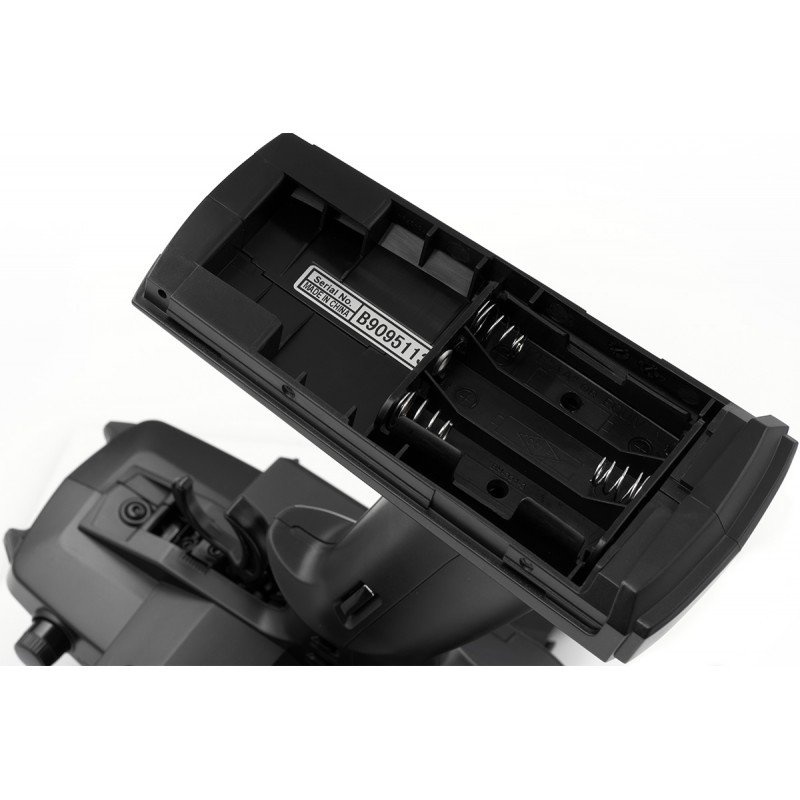

To run the transmitter, you will need 3 AA alkaline batteries or NiMH rechargeable batteries stored in the holder supplied with the transmitter or a 4-5 cell NiMH or 2S LiFe battery pack

T-FHSS SR transmission system

The superfast response transmission system requires the use of Futaba digital servos in SR mode. It does not allow the transmission of telemetry

T-FHSS transmission system

This transmission system allows transmission of telemetry data from sensors connected to the S.BUS2 jack on the receiver

NOTE: The transmitter is not compatible with T-FHSS Air system receivers for flying models.

T-FHSS/S-FHSS transmission system: normal/high speed mode

"Normal" mode allows the use of any servos or RC devices, given that the repetition period of servo signals is 13.6 ms (repetition rate of 73.5 Hz). "High Speed" mode can only be used by digital servos, including the BLS series and most other devices, such as speed controllers for AC motors. The repetition period of servo signals is 6.8 ms (repetition rate of 147 Hz).

FEATURES

• T-FHSS SR transmission system (without telemetry), T-FHSS-2.4GH with telemetry, S-FHSS (without telemetry), for RC cars, T-FHSS Mini Z for RA-42 receivers for Kyosho Mini Z Evo
• 4 proportional channels
• Steering wheel control with adjustable neutralization
• Throttle trigger with adjustable motion neutralization range for braking/reverse functions
• 2 pushbutton switches (assignable)
• 1 knob (assignable)
• 5 digital trim (assignable)

Program functions:

• Memory for 40 models with copy, reset and set model name of 10 characters
• Transmission system selection: T-FHSS SR, T-FHSS, S-FHSS (Normal or High Speed mode)
• Set deviation size for all channels
• Reversal of deviation direction for all channels Subtrims for all channels
• Exponential deviation waveform for control and throttle
• Speed servo for steering and throttle
• Double steering deflections
• Pitch acceleration
• ABS
• Throttle/brake control modes
• Traction control
• Controller assignments for channels 3 and 4
• Safe emergency deflection for all channels
• S.BUS server setup
• Remote control of Futaba speed controller software functions
• Assignment of trimming functions
• Assignment of switch functions
• Mix for control with 2 servos
• Mix for front/rear brakes with 2 servos
• Mix for gyro control
• Mix 4WS for independent front and rear axle control for tracks
• Mix for drivetrain with 2 speed controllers
• Mix CPS for LED lighting control
• Mix for tanks - to control the movement of tracked vehicles
• 2 freely programmable mixes
• 3 timers (stopwatch, timer, lap time with 100 laps memory)
• Telemetry display
• Setup of telemetry sensors

Compatible receivers:

• Futaba R202GF S-FHSS/FHSS-2.4 GHz (2 channels only)
• Futaba R203GF S-FHSS/FHSS-2.4GHz (3 channels)
• Futaba R204GF-E S-FHSS/FHSS-2.4GHz (4 channels, for powered models only)
• Futaba R2104GF S-FHSS/FHSS-2.4GHz (4 channels, 4.8-6.0V power supply, not for HV servos)
• Futaba R304SB T-FHSS-2.4GHz with telemetry on S.BUS2 (4-channel)
• Futaba R304SB-E T-FHSS-2.4GHz with telemetry on S.BUS2 bus (4 channels, only for HV models)
• Futaba R334SBS T-FHSS SR/T-FHSS 2.4GHz with telemetry on S.BUS2 bus (4 channels)
• Futaba R334SBS-E T-FHSS SR/T-FHSS 2.4GHz with telemetry on S.BUS2 bus (4 channels, for electric powered models only)

Compatible telemetry sensors:

• Temperature sensor (SBS-01T),
• Temperature sensor (SBS-01TE),
• Tachometer with magnetic sensor (SBS-01RM),
• Tachometer for AC motors (SBS-01RB),
• Voltage sensor (SBS-01V) Current sensor (SBS-01C).

Included:

• Futaba T4PM 2.4 GH transmitter,
• R334SBS receiver,
• Plastic screwdriver,
• 2 allen handles Instruction manual.

*Follow the included instructions.
