FUTABA T3PV + R203GF RECEIVER

Futaba 's four-channel computer RC kit, using the T-FHSS-2.4GHz telemetry transmission system for recreational and racing car and boat models. The transmitter can also be switched to transmission modes without S-FHSS (super fast response) or FHSS telemetry and use the full range of S-FHSS and FHSS receivers for RC cars and RC boats. With the R203GF S-FHSS receiver included in the package, you have 3 PWM channels for classic servos without telemetry.

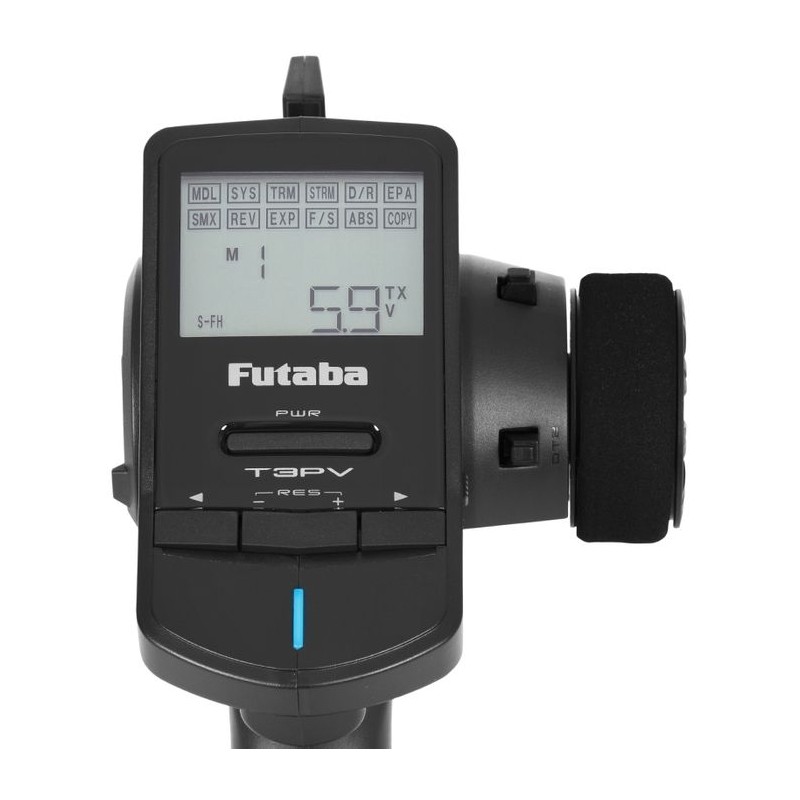

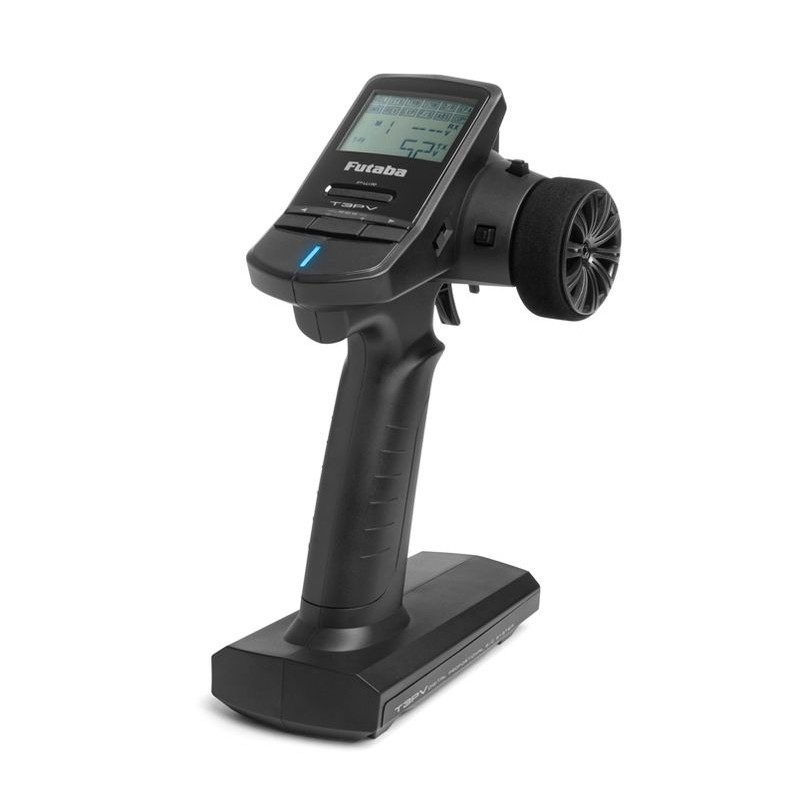

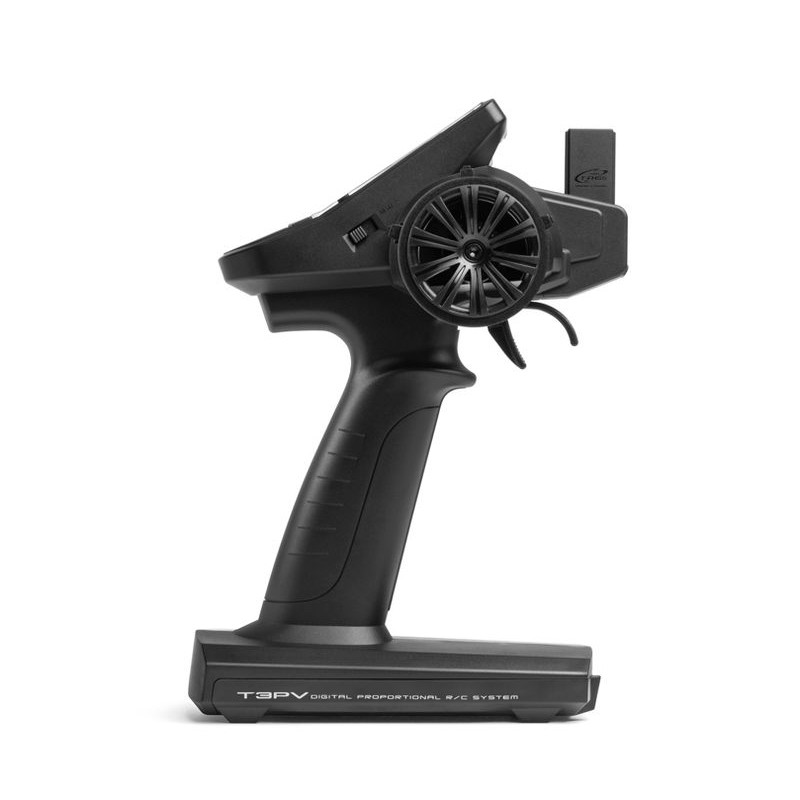

The T3PV transmitter in a classic steering wheel design with a handle that fits perfectly to the hand is equipped with steering wheel controls, throttle triggers, a third channel slider switch and three digital slats around the steering wheel (with the DT3 you can proportionally control the 3rd channel). There are four buttons for programming; easy orientation in the intuitive menu is provided by the large LCD display. The T3PV has memory for 10 models and a wide range of software functions for regular and special car models (eg steered front and rear wheels for tracks, dual circuit brakes for 1: 5 large models, etc.).

You will need 4 AA alkaline batteries or NiMH batteries in the holder included with the transmitter to start the transmitter, or a 4-5-cell NiMH or 2S LiFe battery.

T-FHSS transmission system

This transmission system enables the transmission of telemetry data from sensors connected to the S.BUS2 socket in the receiver. NOTE: The transmitter is not compatible with T-FHSS Air receivers for flying models.

T-FHSS / S-FHSS transmission system: normal / fast mode

Normal mode allows the use of any servos or RC devices as the repetition period of servo signals is 13.6 ms (repetition rate 73.5 Hz). The "High Speed" mode can only be used by digital servos, including the BLS series and most other devices such as AC speed controllers. The repetition period of the servo signals is 6.8 ms (repetition rate 147 Hz).

FUNCTIONS:

• T-FHSS-2.4GH transmission system with telemetry, S-FHSS (no telemetry), FHSS-2.4GHz (no telemetry) for RC cars
• 4 proportional channels (channels 1-3 with controls, channel 4 controlled by mixer)
• Steering wheel
• Trigger to control the throttle
• 2-position switch for channel 3
• 3 digital trimmers (DT1 - steering, DT2 - gas, DT3 can be used as a channel 3 controller or for setting the double tilts of the steering wheel)

Program features:

• Memory for 10 models with the possibility of copying and setting the model name with 4 characters
• Transmission System Selection (T-FHSS with Telemetry, S-FHSS (Normal or Fast Mode), FHSS)
• Sets the amount of variation for all channels
• Inversion of the meaning of deviations for all channels
• Slave times for all channels
• The exponential course of deviations for control and gas
• Double steering wheel deflection
• Safe failures for channel 2 (gas)
• Choice of driver for channel 3
• Mixers for channel 4 (control-> channel 4 for the second brake or brake control-> channel 4 for the second brake in cars 1: 5)
• ABS
• Channel 4 electronic trim
• Display of the transmitter battery / rechargeable battery status on the display with adjustable threshold voltage for warning signaling

K.Compatible receivers:

• Futaba R202GF S-FHSS / FHSS-2.4 GHz (only 2-channel)
• Futaba R203GF S-FHSS / FHSS-2,4GHz (3-channel)
• Futaba R204GF-E S-FHSS / FHSS-2.4GHz (4-channel, only for electric models)
• Futaba R2104GF (4 channels, 4.8-6.0V power supply, not for HV servos)
• Futaba R304SB T-FHSS-2,4GHz with telemetry on S.BUS2 (4-channel)
• Futaba R304SB-E T-FHSS-2,4GHz with telemetry on S.BUS2 (4-channel, only for models with electric drive)

Set contains:

• Futaba T3PV 2.4GHz transmitter
• R203GF receiver
• Plastic screwdriver
