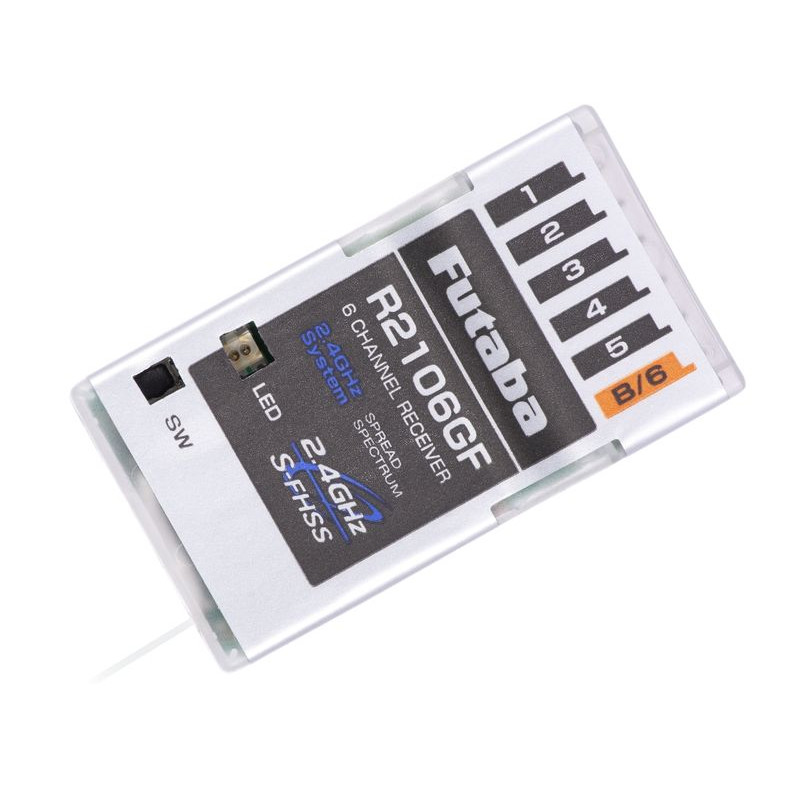

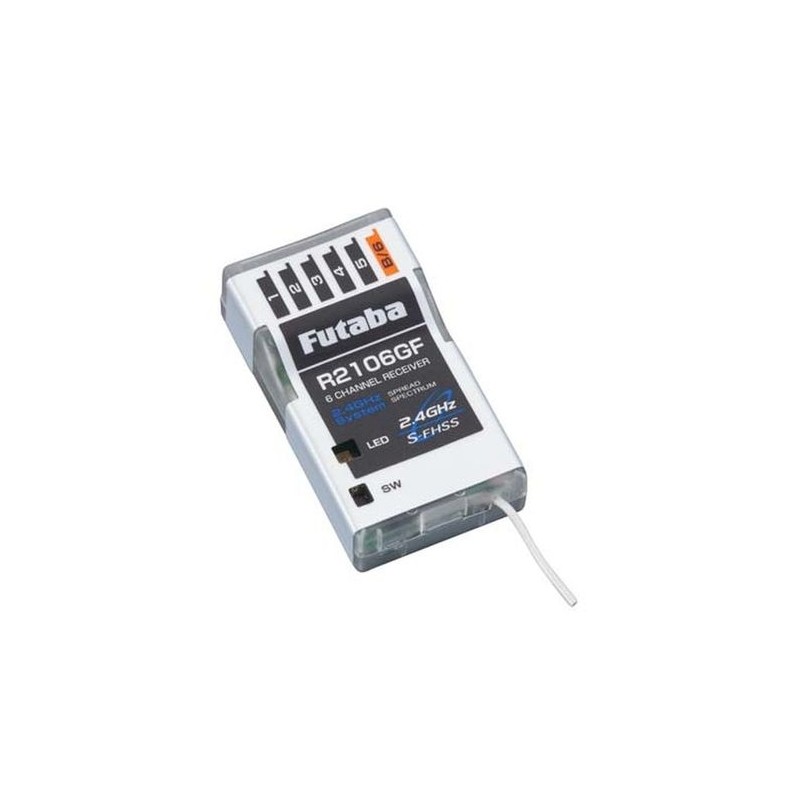

FUTABA R2106GF S-FHSS / FHSS RECEIVER

Small, lightweight, 6-channel receiver designed to work with Futaba 2.4GHz FHSS and S-FHSS transmitters. Not compatible with FASST transmitters.

It has Normal and High Speed Response modes for digital servos. In Normal mode, the speed is 13.63ms and is suitable for most standard servos and other devices. In High Speed mode, the speed is 6.8ms, which is acceptable for digital servos and most accessories and speed controllers.

Fail Safe settings are available for all channels.

The receiver is of the HV type, which means that it can be supplied with 7.4V (e.g. directly from the LiPol 2S pack).

Easy pairing with transmitters with the Easy-Link button.

Optimum protection against interference through fast frequency hopping.

The receiver is designed for park-flyer and indoor models as well as small helicopters with the main rotor diameter up to 1000mm.

Basic data of the receiver:

• transmission system: 2.4GHz FHSS / S-FHSS
• number of channels: 6
• supply voltage: 4.8-7.4V
• weight: 4.5g
• dimensions: 38x21x10mm
• antenna length: 20mm
• channel spacing: 1500kHz
• 100% original product (with distribution in European)
