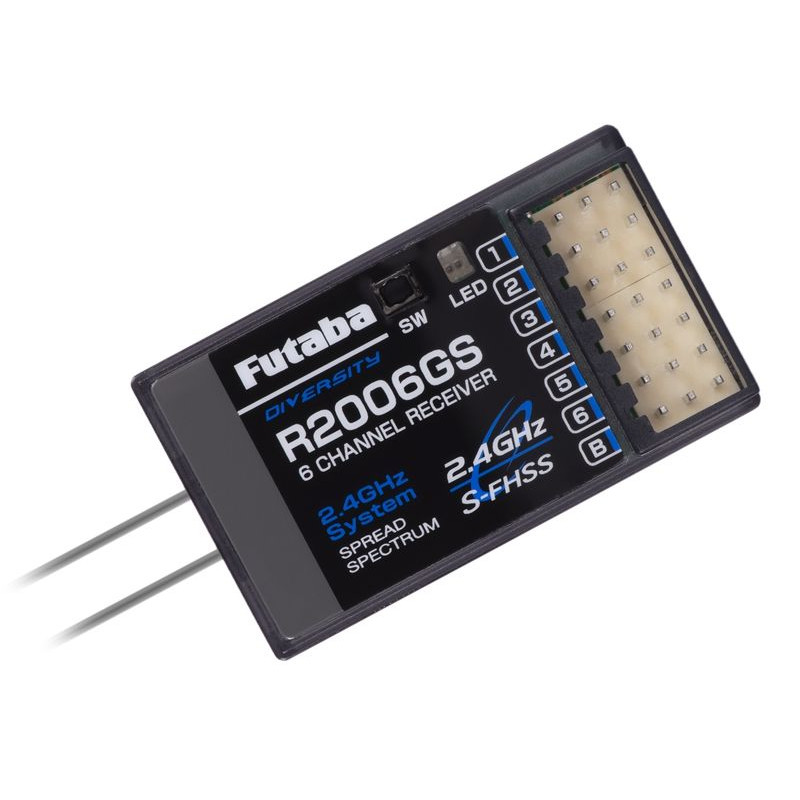

FUTABA R2006GS S-FHSS / FHSS RECEIVER

A small, 6-channel receiver designed for use with Futaba's 2.4GHz FHSS (4 channels only) and S-FHSS transmitters. It is not compatible with FASST transmitters.

It features Normal and High Speed Response modes for digital servos. In Normal mode, the speed is 13.63ms and is suitable for most standard servos and other devices. In High Speed mode, the speed is 6.8ms which is acceptable for digital servos and most add-on devices as well as speed controllers.

In FHSS mode, only 4 channels are available

Fail Safe settings are available for all channels.

The receiver is HV type meaning it can be powered by 7.4V (e.g. directly from a 2S LiPol pack).

Easy pairing with transmitters via Easy-Link button.

Optimal protection against interference by fast frequency hopping.

The receiver is not recommended for large mock-up aircraft and jets.

Basic data of the receiver:

• transmission system: 2.4GHz FHSS/S-FHSS
• number of channels: 6 (in FHSS mode only 4)
• power supply voltage: 4.8-7.4V
• weight: 9g
• dimensions: 43x25x8.8mm
• number of antennas: 2
• channel spacing: 1500kHz
• current consumption: max 80mA
• range: 1000m
• 100% original product (from European distribution)
