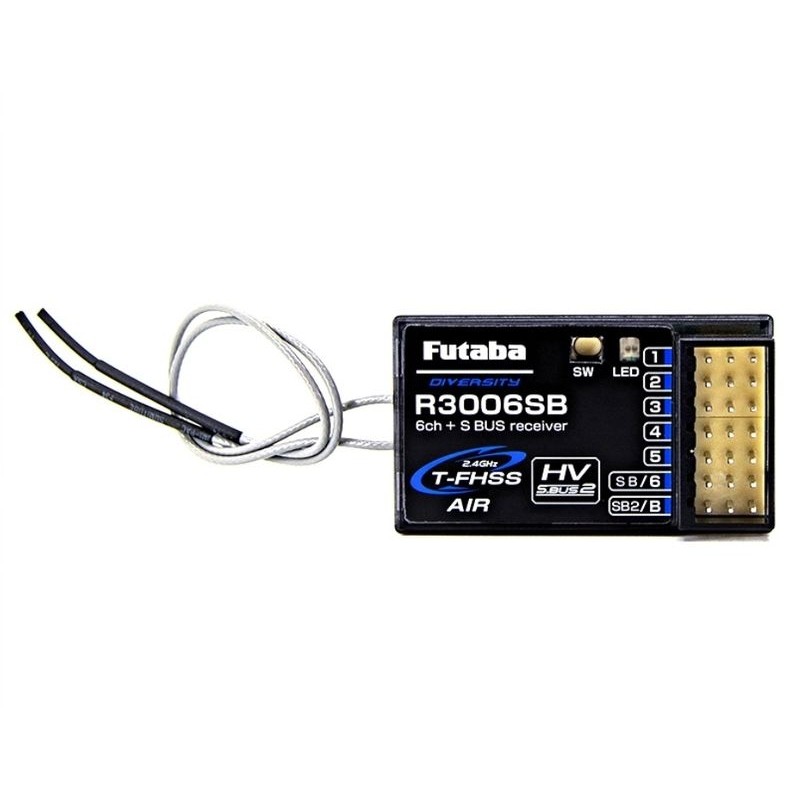

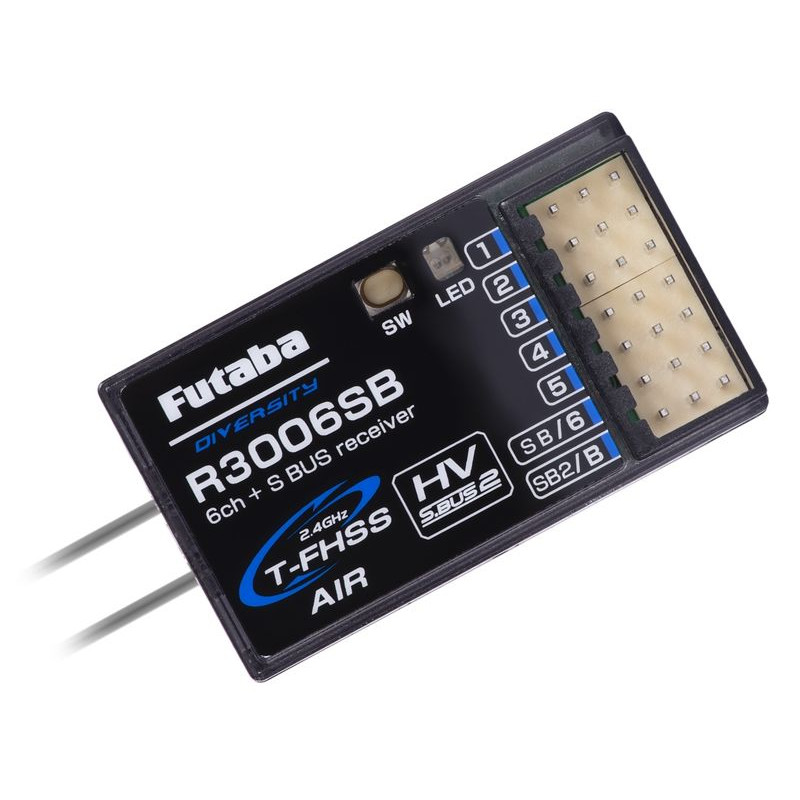

FUTABA R3006SB RECEIVER T-FHSS (dual)

A compact, 6-channel receiver for model airplanes and helicopters, designed to work with Futaba's 2.4GHz T-FHSS transmitters. It is not compatible with FASST transmitters.

The receiver can be configured in one of two modes: in the first mode A, the PWM signal for the 6th channel is available on output number 6, in mode B, the S.BUS is output on output number 6. The S.BUS2 output is always active on the Sb2/B port.

The receiver is equipped with an S-BUS port and 6 PWM ports. The receiver is HV type, that is, it can be powered by 7.4V (e.g. directly from a LiPol 2S pack).

Optimal protection against interference by fast frequency hopping.

Basic data of the receiver:

• transmission system: 2.4GHz T-FHSS
• number of channels: 6 PWM and up to 18 (depending on the transmitter) via S.BUS
• S.BUS2 for telemetry sensors and other devices
• power supply voltage: 4.8-7.4V
• weight: 8.5g
• dimensions: 43x25x8.8mm
• divercity antennas with a length of 15 cm
• telemetry: YES
• 100% original product (from European distribution)
