FUTABA 6L + R3106GF RECEIVER (mode-2)

Kit contents

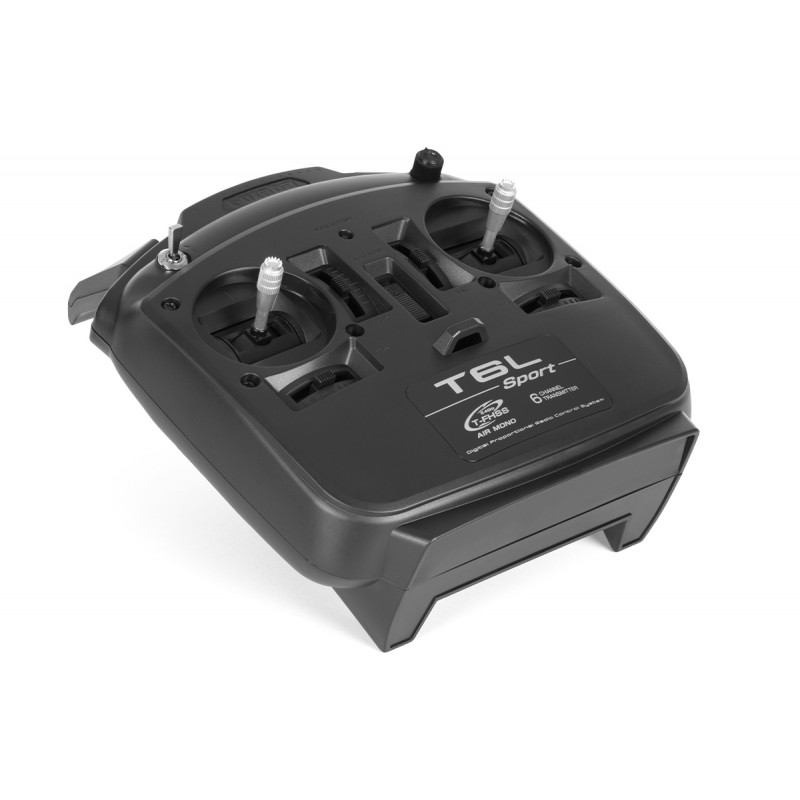

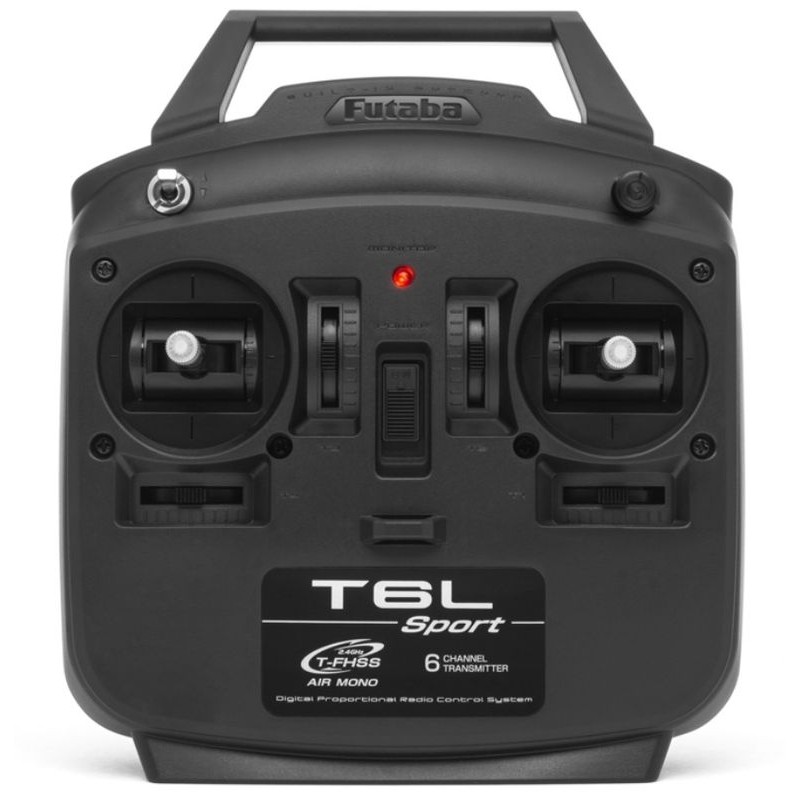

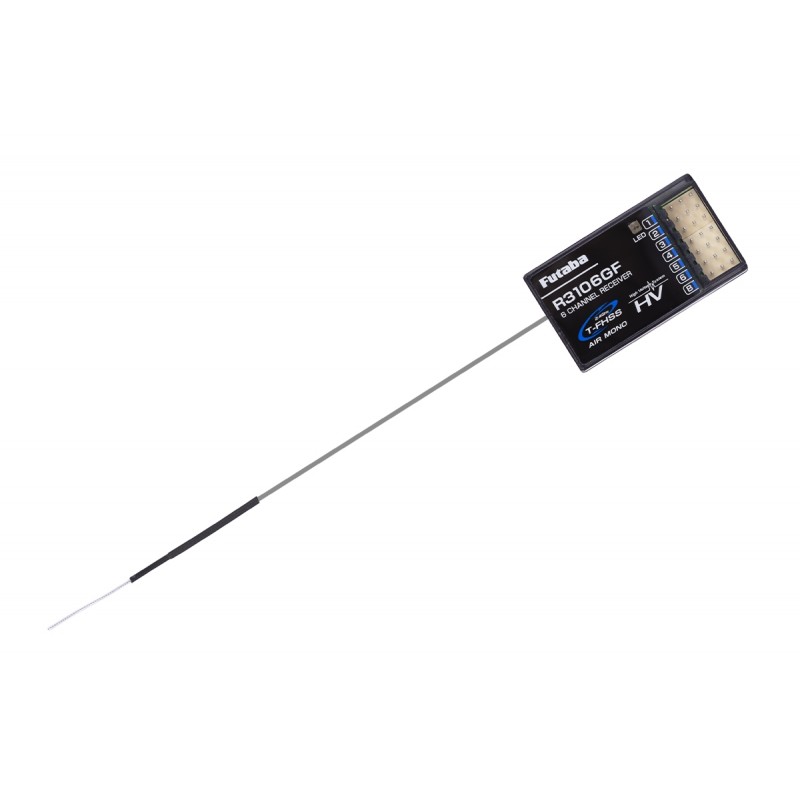

The set includes the Futaba T6L Sport RC transmitter in mode 2 (gas on the left hand), the Futaba R3106GF RC receiver.

Characteristic

The high-quality, yet affordable 6-channel Futaba T6L Sport RC in Mode 2 is intended for beginner modellers or for those who want a very easy-to-use transmitter. Classic analog trimmers, adjustable reverses and mixers (delta-mix, Flaperon and V-Tail). R3106GF receiver.

The antenna is built inside the transmitter, so there is no risk of damaging it, e.g. when the transmitter falls. The transmitter is powered by only 4 AA batteries, the transmitter voltage indicator by LED.

Properties of the RC Futaba T6L Sport transmitter

• Adjustable reverses on all 6 channels by means of DIP switches on the bottom side of the transmitter
• Supports V-Tail, Elevons (Delta Wings) and Flaperons (Combined Ailerons and Flaps)
• Transmitter range check
• Transmitter battery voltage indicator with LED
• Only powered by 4 AA batteries
• Very low current consumption (50 mA)
• Mode 1 - 2 selectable
• The fifth channel controlled by a switch - the output can be used to control the retractable landing gear, LED lighting, etc.
• The sixth channel is controlled by a rotary potentiometer - the output can be used, for example, to control flaps. In Flaperon mode it is controlled by the second aileron.
• T-FHSS modulation (no telemetry)
• Student / Teacher output (transmitter can only work as student) for connection to teacher's transmitter or simulator

Compatible receivers

Futaba T6L Sport transmitter is compatible with T-FHSS aircraft receivers. These are the Futaba R3001SB, R3106GF, R3006SB and R3008RSB receivers.
