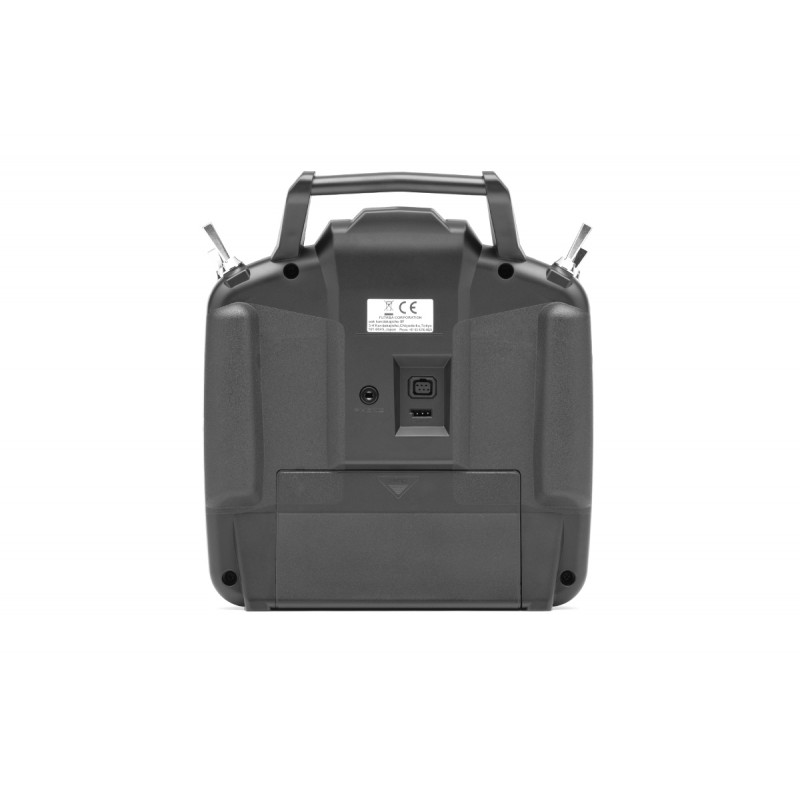

FUTABA 10J + R3008SB RECEIVER (mode-2)

Futaba T10J is the first Futaba telemetry transmitter operating in the T-FHSS band. This computerized 10-channel transmitter offers a variety of functions for advanced control of aircraft, helicopter and multicopter. The radio supports S-BUS2 functions - it allows you to connect servos and sensors in this technology.
The ergonomic transmitter housing for which the Futaba brand is known fits well in the hand and has perfectly placed buttons, switches and other control elements. The radio is equipped with a large (65 x 34mm), backlit LCD display with a resolution of 128x64 pixels, which is easy to read in all lighting conditions. The "3D" button, known from the T8J apparatus, makes it much easier to use and navigate the menu. As in the T8J, the antenna is integrated inside the transmitter housing. The set also includes the S-BUS R3008SB telemetry receiver.

Basic Features:

• T-FHSS® 2.4 GHz broadcast system
• 30 model memory
• 10 channels (T-FHSS mode) or 8 channels (FHSS mode)
• Transmitter power: 100mW
• Excellent noise immunity
• Ultra fast response time
• 32-channel telemetry
• No speed loss, even in a busy transmission band
• Fast and reliable automatic rebinding, even under difficult conditions
• Easy Link - very simple binding of the transmitter to the receiver
• Dual Antenna Diversity - instant switching between two antennas for optimal signal quality (depending on receiver type)
• Integrated range selector to check range before flight
• Two-way communication between the transmitter and receiver with high speed telemetry data transmission (up to 9 times per second)
• Real-time display of telemetry data on the display
• Voice prompts (via optional 3.5mm jack headphones)
• Melody and sound (via internal buzzer or optional headphones)
• Vibrating alert
• Receiver battery voltage drop warning system
• Freely configurable output of telemetry data on display, sound, speech and vibration
• Compatible with all Futaba telemetry sensors
• Comfortable and accurate joystick for precise and sensitive control
• Large (65 x 34 mm), backlit display (128 x 64 dots) with high contrast for best readability even in bright sunlight
• Graphical user interface and intuitive 3-D as a shortcut to easily control all functions
• 7 languages to choose from: English, German, French, Italian, Spanish, Japanese and Dutch
• Trainer-student mode in mode 1-4
• 8-channel T-FHSS receiver functions 8 PWM outputs and digital S.BUS connection, for S.BUS servos, S.BUS control and telemetry sensors
• Compatible with S-BUS1 and S-BUS2 (bi-directional)
• Future-proof digital technologies for all subsequent Futaba components
• Accessories operating in the S-BUS can be programmed directly from the transmitter, thanks to the built-in programmer
• Serial digital signal ideal for Flybarless systems, gyroscopes and switching functions Transfer of model memory via the T10J transmitter between the same instruments or from T8J to T10J
• Graphic servo monitor for easy viewing of all servos with test function
• Wide operating voltage range of the receiver from 3.6V to 8.4V
• Firmware upgradeable via an optional CIU-2 adapter
• Mixer menu for programming all servos and mixing functions depending on the type of model
• Hour meter
• Username (10 characters)
• Digital transmitter voltage indicator
• Servo reverse for channels 1 to 8
• Fail Safe for channels 1 to 8
• ATV / EPA servo range adjustment
• Servo neutral control - Subtrim

Set contains:

• Futaba T10J 2.4GHz T-FHSS / FHSS transmitter

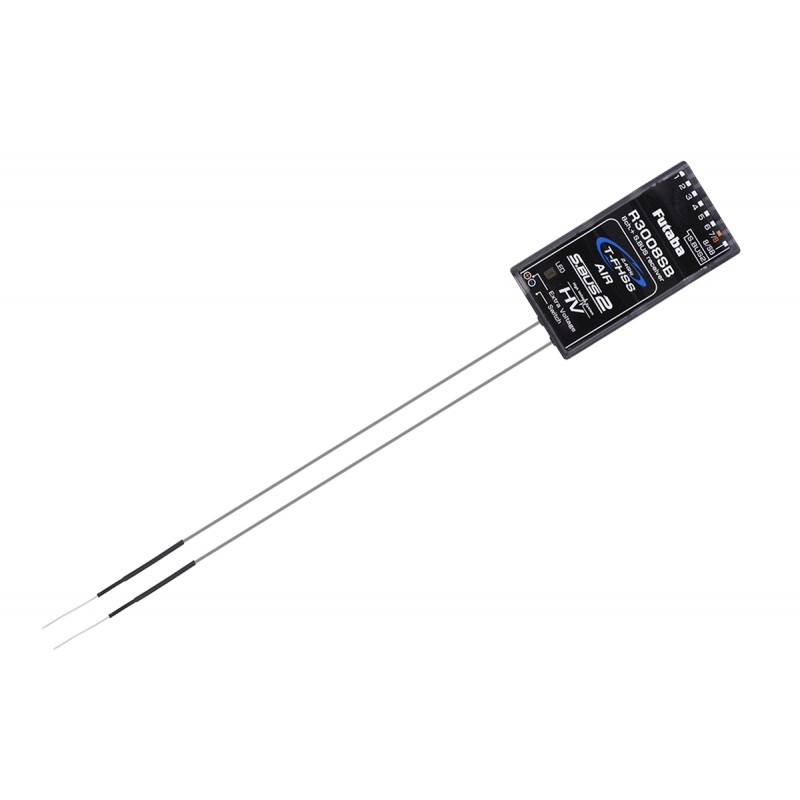

• Futaba R3008SB 2.4GHz T-FHSS receiver
• receiver switch with charging connector
• plastic screwdriver
• manual in English
