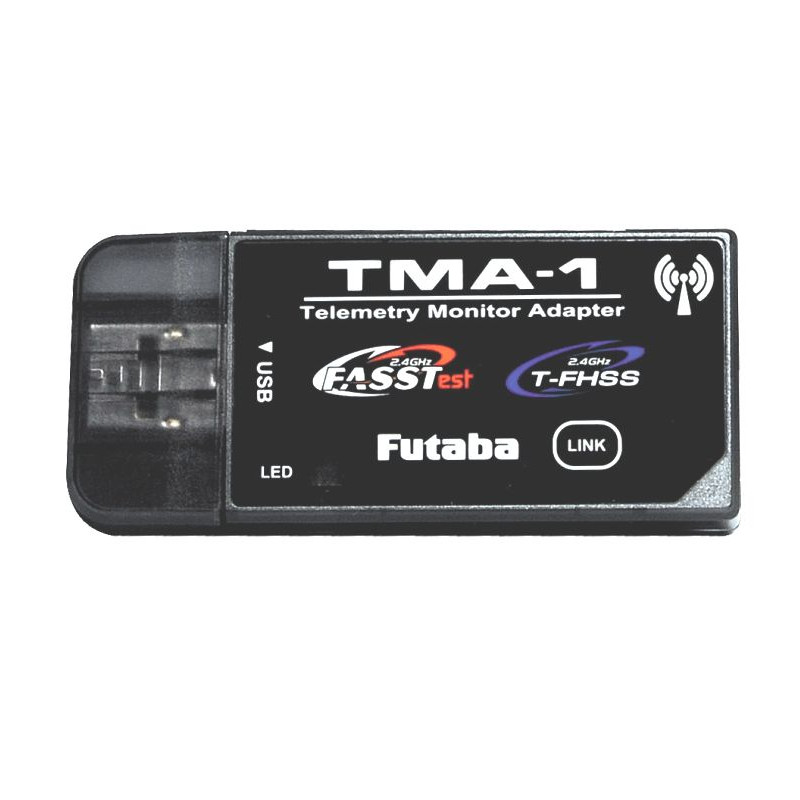

FUTABA TELEMETRY MONITOR (TMA-1)

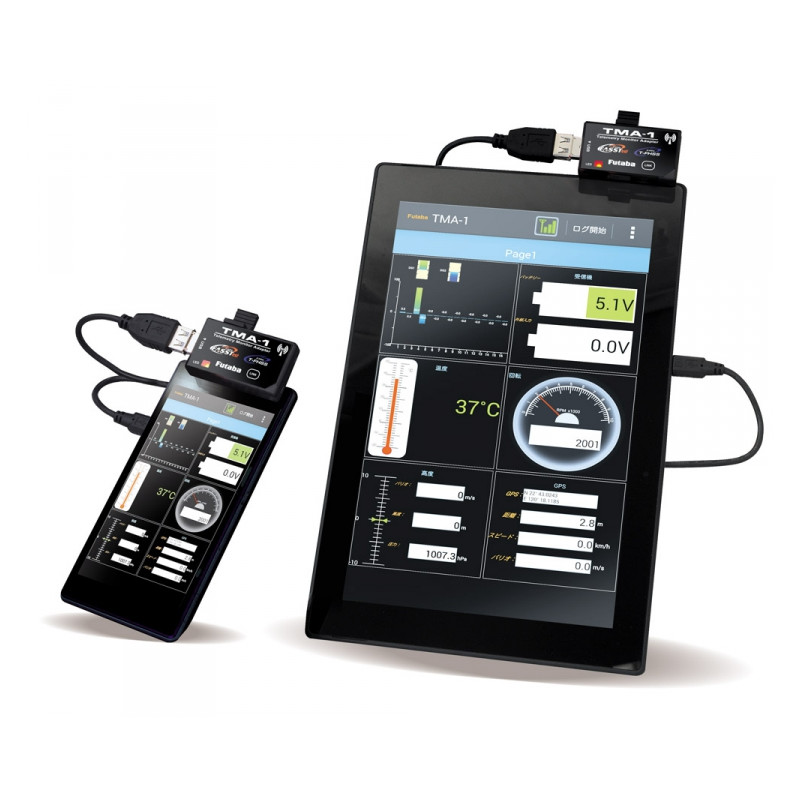

This TMA-1 displays telemetry data from a telemetry receiver on a tablet or smartphone. The TMA-1 is connected to a tablet or smartphone. An exclusive app is downloaded to the tablet or smartphone. Telemetry data can be more readable.

• Futaba's telemetry system (FASSTest or T-FHSS) is required to equip the transmitter and receiver
• A tablet or smartphone with Android™ version 3.2 or later is required
• Futaba TMA-1 telemetry adapter is required
• Telemetry sensor(s) required
• Mount the sensor to the model according to the telemetry sensor manual
• According to the user manual, the TMA-1 telemetry receiver must be connected to the TMA-1 receiver
• Turn off the Wi-Fi function (2.4 GHz) on the tablet or smartphone

Tablet or smartphone requirements:

• USB power capability
• Dual-core
• Operating system: Android™ 3.2
• Memory: RAM 1GB - ROM 16GB
• Internet connectivity

TMA-1 unit specifications:

• Size: 68.3 x 30.8 x 11.6 mm
• Weight: 15.4 g
• Current consumption: 140 mA or less

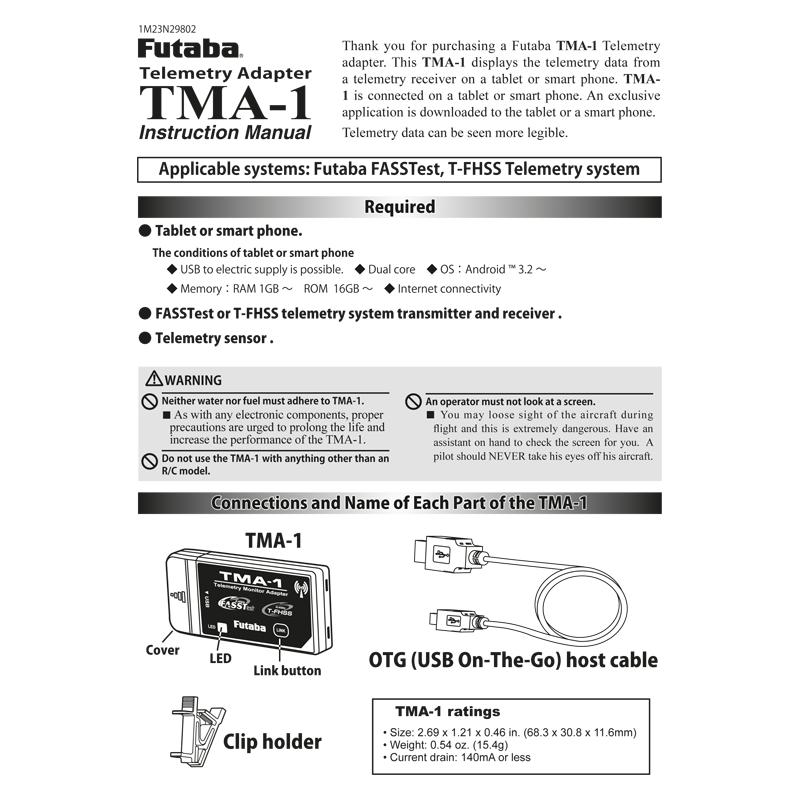

*Follow the instruction manual included with the product.
