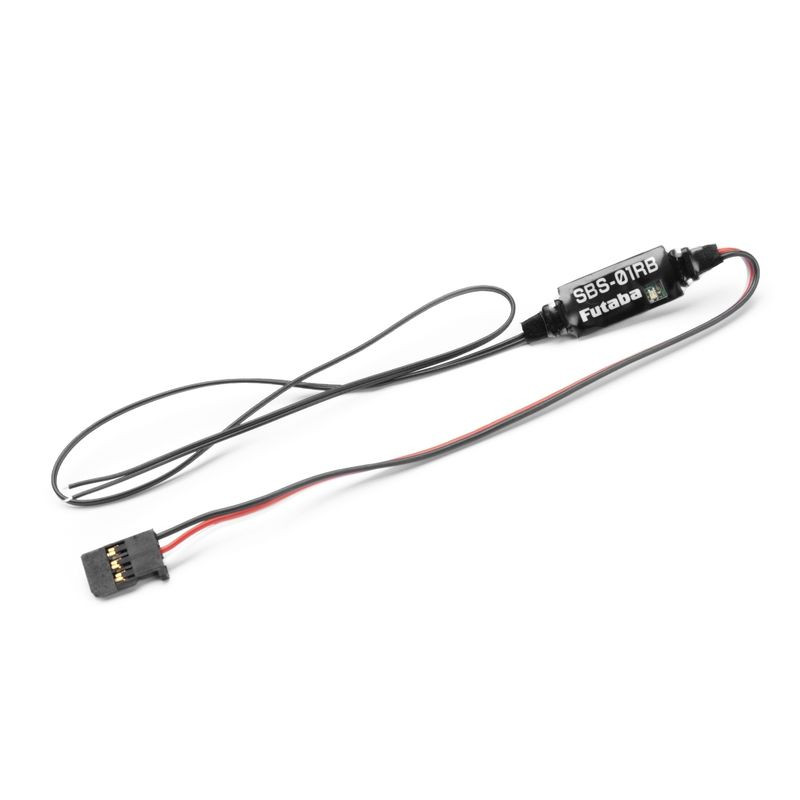

FUTABA SENSOR ENGINE SENSOR BLS (SBS-010RB)

Telemetric AC motor phase speed sensor for Futaba RC kits with FASSTest, T-FHSS Air (for aircraft) and T-FHSS Surface (for automobiles) telemetry transmission systems. Enables measurement of the speed of the AC electric motor to which it is wired, from 360 to 300,000 rpm. Ideal for measuring the speed of aircraft, helicopter, car and boat engines and similar applications. The sensor's operating states are indicated by an LED.

• Compatible receivers: Futaba receivers with S.BUS2 port
• Connection to the receiver: socket S.BUS2
• Number of addresses required by the sensor: 1*
• Default address number setting (starting address): 2*
• Transmitted telemetry data: number of revolutions (the correct number of motor poles or gear ratio must be entered in the settings in the transmitter menu)
• Typical installation: near an AC electric motor or speed controller, the sensor's measurement wires are connected to any two three-phase wires between the controller and the motor
• Power supply 3.7-7.4 V (rated battery voltage)
• The sensor kit includes: sensor SBS-01RB with wires, instructions.

  *) Telemetry sensors are identified on the S.BUS2 serial bus by an address number ("slot"); more complex sensors transmitting more than one data may require several consecutive addresses, in which case the first address belonging to that sensor is called the starting address.

Technical data:

• Power supply: 3.5-8.4 V
• Measured speed range: 360-300000 rpm
• Length (with cables): 475 mm
• Weight: 3.8 gr

*Follow the enclosed instructions.
