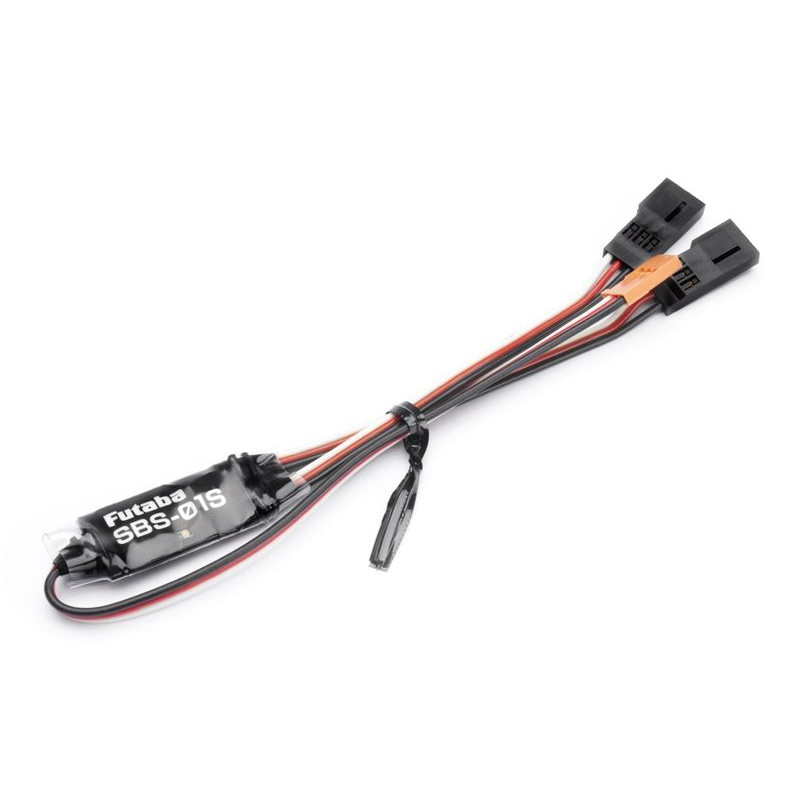

FUTABA SENSOR SERVO SENSOR (SBS-01S)

S.BUS2 servo telemetry sensor for Futaba RC kits with FASSTest and T-FHSS Air (for aircraft) telemetry transmission systems. Allows measurement of servo lever position, current (up to 10A) and temperature (-10 to 115°C) of two S.BUS2 servos. Ideal for measuring servo load during operation and similar applications. The sensor's operating states are indicated by an LED.

• Compatible receivers: Futaba receivers with S.BUS2 port
• Connection to the receiver: socket S.BUS2
• Number of addresses required by the sensor: 6*
• Default address number setting (starting address): 16*
• Transmitted telemetry data: lever position of servo 1 and servo 2, current drawn by servos 1 and 2, temperature of servos 1 and 2
• Typical installation: between the receiver (S.BUS2 port) and servo 1 and 2; if simultaneous measurement of multiple servos is required, multiple SBS-01S sensors can be used (max. 4 if no other sensors are connected)
• Power supply 3.7-7.4 V (rated battery voltage)
• The sensor kit includes: sensor SBS-01S with cables, instructions.

  *) Telemetry sensors are identified on the S.BUS2 serial bus by an address number ("slot"); more complex sensors transmitting more than one data may require several consecutive addresses, in which case the first address belonging to that sensor is called the starting address.

Technical data:

• Power supply: 3.5-8.4 V
• Measured current range: 0-10 A
• Length (with cables): 300 mm
• Weight: 9.6 gr

*Follow the instructions included with the product.
